POS

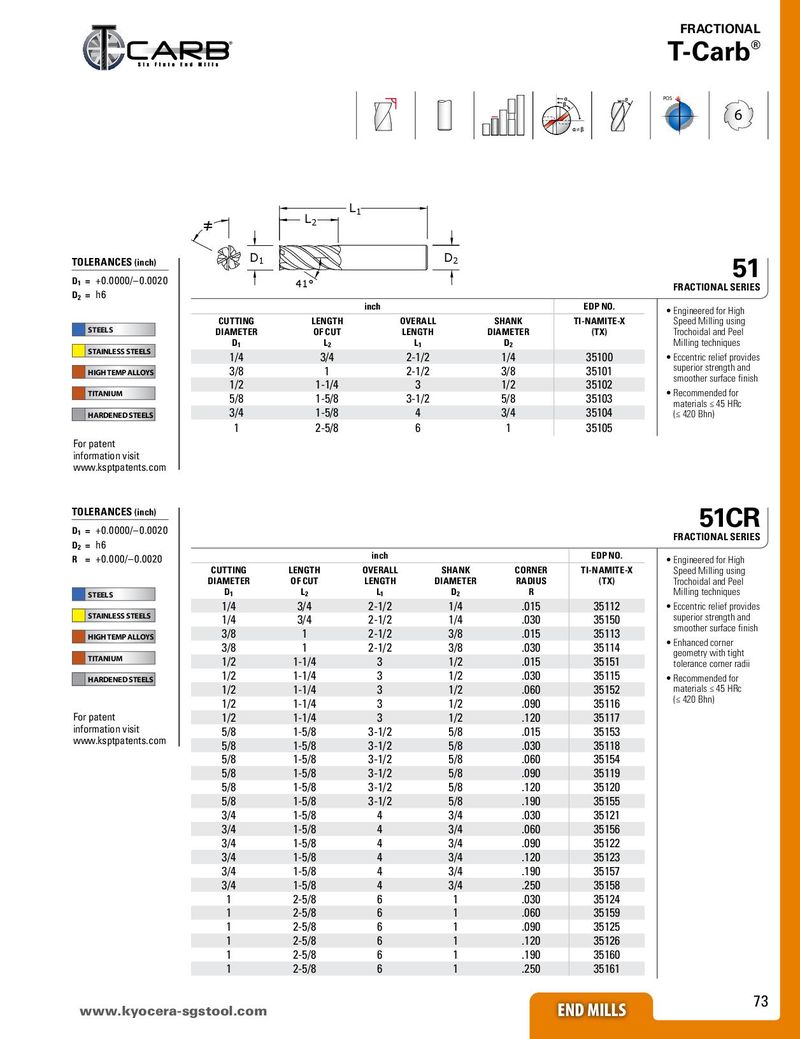

6
| ERANCES(inch) | 1 D ≠ | L L2 | 1 | 2 D | 51 | ||
| +0.0000/–0.0020 h6 | 41° | FRACTIONAL SERIES | |||||
| inch | EDP NO. | • Engineered for High | |||||
| STEELS | CUTTING DIAMETER | LENGTH OF CUT | OVERALL LENGTH | SHANK DIAMETER | TI-NAMITE-X (TX) | Speed Milling using Trochoidal and Peel | |
| D1 | L2 | L1 | D2 | Milling techniques | |||
| STAINLESS STEELS | 1/4 | 3/4 | 2-1/2 | 1/4 | 35100 | • Eccentric relief provides | |
| HIGH TEMP ALLOYS | 3/8 | 1 | 2-1/2 | 3/8 | 35101 | superior strength and hffiih | |
| 1/2 | 1-1/4 | 3 | 1/2 | 35102 | smooter surace ns | ||
| TITANIUM | 5/8 | 1-5/8 | 3-1/2 | 5/8 | 35103 | • Recommended for materials ≤ 45 HRc | |
| HARDENED STEELS | 3/4 | 1-5/8 | 4 | 3/4 | 35104 | (≤ 420 Bhn) | |
| 1 | 2-5/8 | 6 | 1 | 35105 |
2
For patent information visit www.ksptpatents.com TOLERANCES (inch) 51CR
| D1 = +0.0000/–0.0020 D2 =h6 | FRACTIONAL SER | ||||||
| R = +0.000/–0.0020 | inch | EDP NO. | • Engineered for High | ||||
| CUTTING DIAMETER | LENGTH OF CUT | OVERALL LENGTH | SHANK DIAMETER | CORNER RADIUS | TI-NAMITE-X (TX) | Speed Milling using Trochoidal and Peel | |
| STEELS | D1 | L2 | L1 | D2 | R | Milling techniques | |
| 1/4 | 3/4 | 2-1/2 | 1/4 | .015 | 35112 | • Eccentric relief provi | |
| STAINLESS STEELS | 1/4 | 3/4 | 2-1/2 | 1/4 | .030 | 35150 | superior strength an hffi |
| HIGH TEMP ALLOYS | 3/8 | 1 | 2-1/2 | 3/8 | .015 | 35113 | smooter surace n |
| 3/8 | 1 | 2-1/2 | 3/8 | .030 | 35114 | • Enhanced corner eometr with tiht | |
| TITANIUM | 1/2 | 1-1/4 | 3 | 1/2 | .015 | 35151 | gy g tolerance corner radi |
| HARDENED STEELS | 1/2 | 1-1/4 | 3 | 1/2 | .030 | 35115 | • Recommended for |
| 1/2 | 1-1/4 | 3 | 1/2 | .060 | 35152 | materials ≤ 45 HRc | |
| 1/2 | 1-1/4 | 3 | 1/2 | .090 | 35116 | (≤ 420 Bhn) | |
| For patent | 1/2 | 1-1/4 | 3 | 1/2 | .120 | 35117 | |
| information visit | 5/8 | 1-5/8 | 3-1/2 | 5/8 | .015 | 35153 | |
| www.ksptpatents.com | 5/8 | 1-5/8 | 3-1/2 | 5/8 | .030 | 35118 | |
| 5/8 | 1-5/8 | 3-1/2 | 5/8 | .060 | 35154 | ||
| 5/8 | 1-5/8 | 3-1/2 | 5/8 | .090 | 35119 | ||
| 5/8 | 1-5/8 | 3-1/2 | 5/8 | .120 | 35120 | ||
| 5/8 | 1-5/8 | 3-1/2 | 5/8 | .190 | 35155 | ||
| 3/4 | 1-5/8 | 4 | 3/4 | .030 | 35121 | ||
| 3/4 | 1-5/8 | 4 | 3/4 | .060 | 35156 | ||
| 3/4 | 1-5/8 | 4 | 3/4 | .090 | 35122 | ||
| 3/4 | 1-5/8 | 4 | 3/4 | .120 | 35123 | ||
| 3/4 | 1-5/8 | 4 | 3/4 | .190 | 35157 | ||
| 3/4 | 1-5/8 | 4 | 3/4 | .250 | 35158 | ||
| 1 | 2-5/8 | 6 | 1 | .030 | 35124 | ||
| 1 | 2-5/8 | 6 | 1 | .060 | 35159 | ||
| 1 | 2-5/8 | 6 | 1 | .090 | 35125 | ||
| 1 | 2-5/8 | 6 | 1 | .120 | 35126 | ||
| 1 | 2-5/8 | 6 | 1 | .190 | 35160 | ||
| 1 | 2-5/8 | 6 | 1 | .250 | 35161 |
