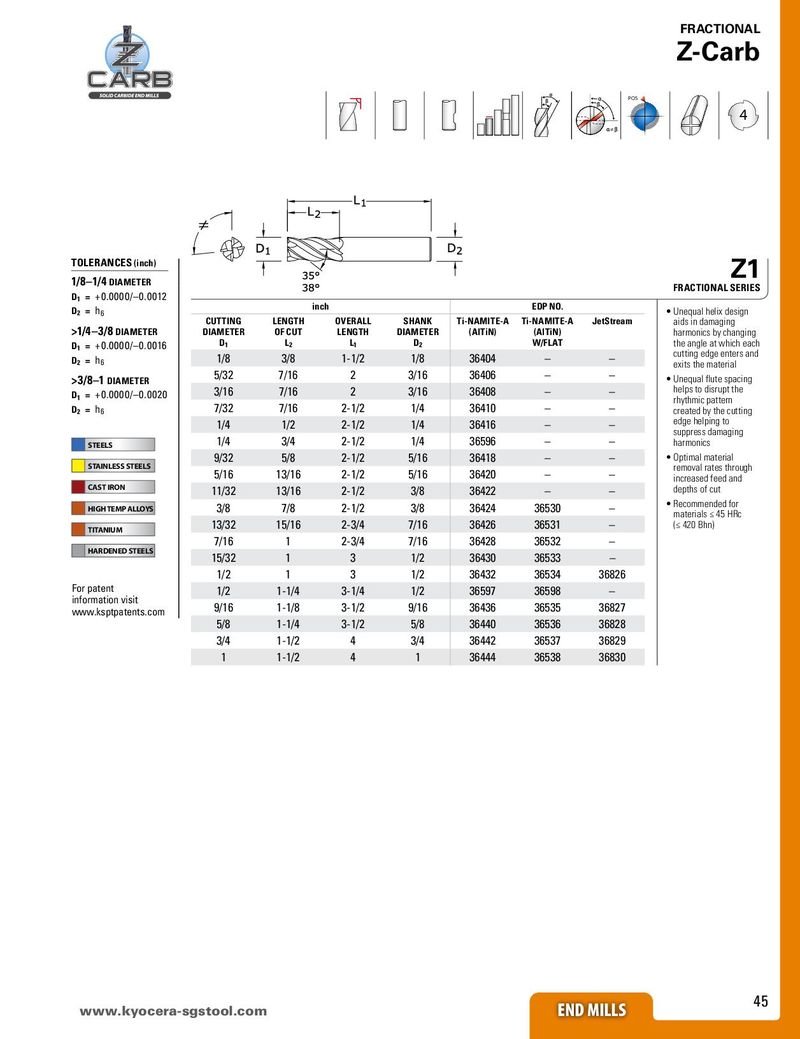

FRACTIONAL Z-Carb POS 4 ≠ TOLERANCES (inch) 1/8–1/4 DIAMETER Z1 FRACTIONAL SERIES D1 = +0.0000/–0.0012 D2 = h6 inch EDP NO. • Unequal helix design CUTTING LENGTH OVERALL SHANK Ti-NAMITE-A Ti-NAMITE-A JetStream aids in damaging >1/4–3/8 DIAMETER DIAMETER OF CUT LENGTH DIAMETER (AlTiN) (AlTiN) harmonics by changing D1 = +0.0000/–0.0016 D1 L2 L1 D2 W/FLAT the angle at which each cutting edge enters and D2 = h6 1/8 3/8 1-1/2 1/8 36404 – – exits the material >3/8–1 DIAMETER 5/32 7/16 2 3/16 36406 – – • Unequal flute spacing 3/16 7/16 2 3/16 36408 – – helps to disrupt the D1 = +0.0000/–0.0020 rhythmic pattern D2 = h6 7/32 7/16 2-1/2 1/4 36410 – – created by the cutting 1/4 1/2 2-1/2 1/4 36416 – – edge helping to suppress damaging STEELS 1/4 3/4 2-1/2 1/4 36596 – – harmonics 9/32 5/8 2-1/2 5/16 36418 – – • Optimal material STAINLESS STEELS removal rates through 5/16 13/16 2-1/2 5/16 36420 – – increased feed and CAST IRON 11/32 13/16 2-1/2 3/8 36422 – – depths of cut • Recommended for HIGH TEMP ALLOYS 3/8 7/8 2-1/2 3/8 36424 36530 – materials ≤ 45 HRc TITANIUM 13/32 15/16 2-3/4 7/16 36426 36531 – (≤ 420 Bhn) 7/16 1 2-3/4 7/16 36428 36532 – HARDENED STEELS 15/32 1 3 1/2 36430 36533 – 1/2 1 3 1/2 36432 36534 36826 For patent 1/2 1-1/4 3-1/4 1/2 36597 36598 – information visit www.ksptpatents.com 9/16 1-1/8 3-1/2 9/16 36436 36535 36827 5/8 1-1/4 3-1/2 5/8 36440 36536 36828 3/4 1-1/2 4 3/4 36442 36537 36829 1 1-1/2 4 1 36444 36538 36830 45 END MILLS www.kyocera-sgstool.com END MILLS
