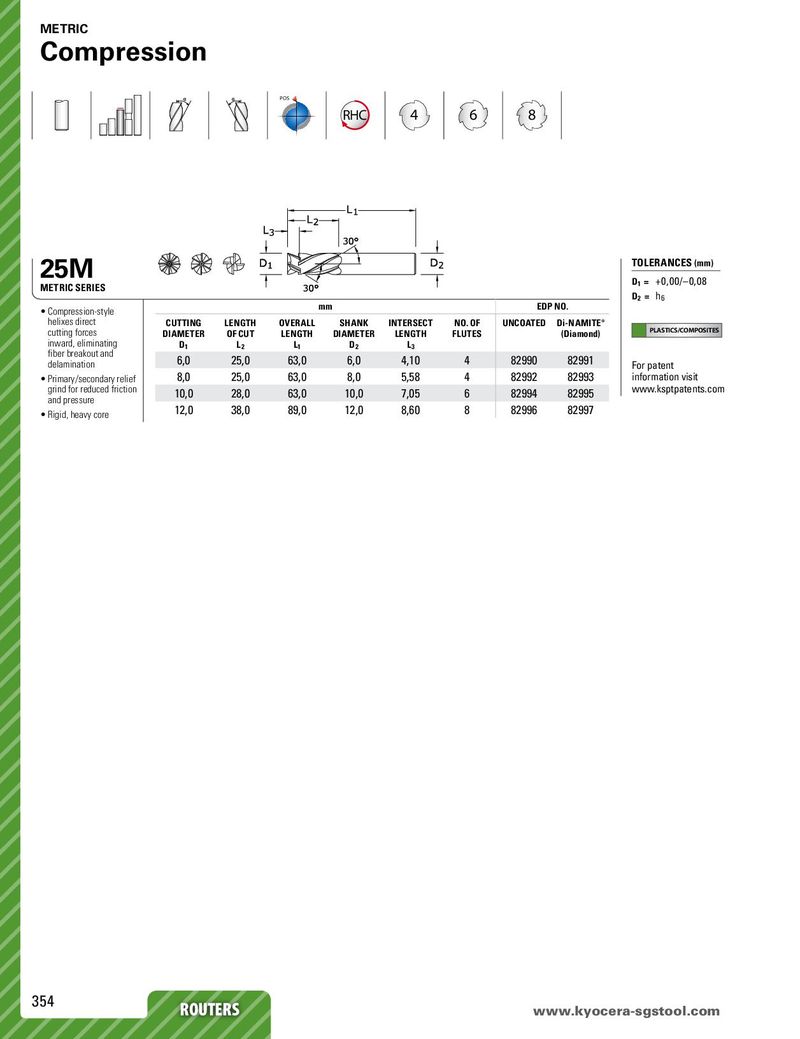

METRIC Compression POS RHC 4 6 8 25M TOLERANCES (mm) METRIC SERIES D1 = +0,00/–0,08 D2 = h6 • Compression-style mm EDP NO. helixes direct CUTTING LENGTH OVERALL SHANK INTERSECT NO. OF UNCOATED Di-NAMITE® cutting forces DIAMETER OF CUT LENGTH DIAMETER LENGTH FLUTES (Diamond) PLASTICS/COMPOSITES inward, eliminating D1 L2 L1 D2 L3 fiber breakout and 6,0 25,0 63,0 6,0 4,10 4 82990 82991 delamination For patent • Primary/secondary relief 8,0 25,0 63,0 8,0 5,58 4 82992 82993 information visit grind for reduced friction 10,0 28,0 63,0 10,0 7,05 6 82994 82995 www.ksptpatents.com and pressure • Rigid, heavy core 12,0 38,0 89,0 12,0 8,60 8 82996 82997 354 ROUTERS www.RkOyUocTEeRraS-sgstool.com
