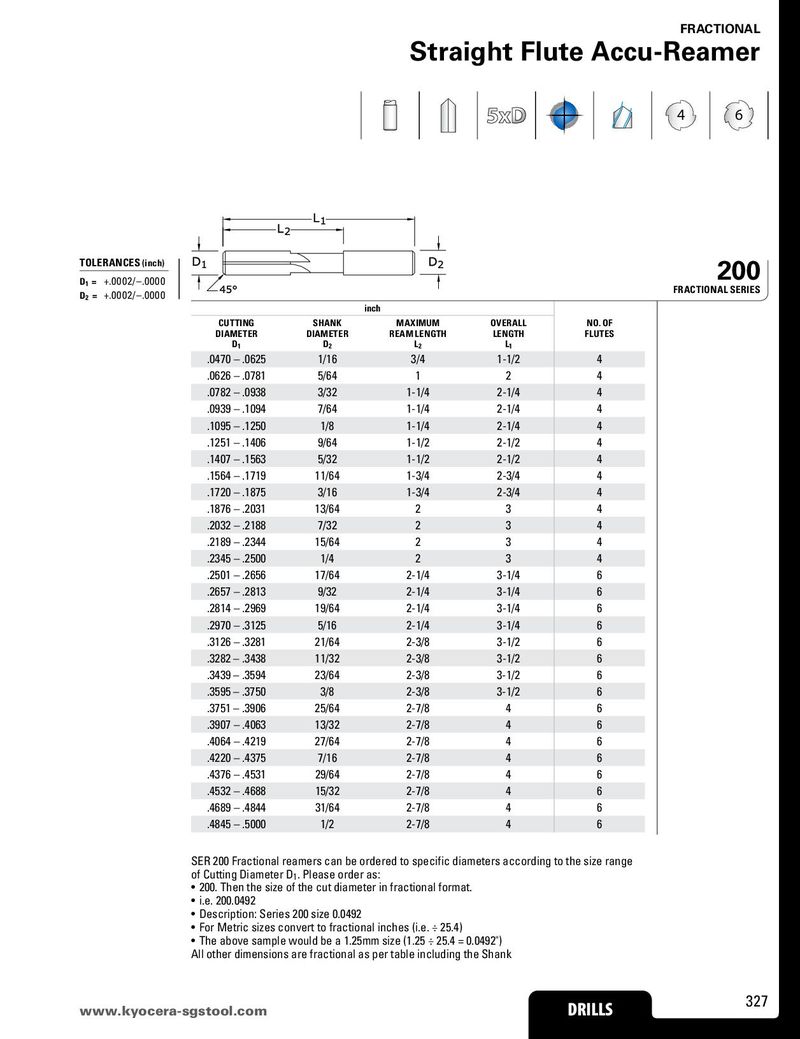

FRACTIONAL Straight Flute Accu-Reamer 4 6 TOLERANCES (inch) 200 D1 = +.0002/–.0000 FRACTIONAL SERIES D2 = +.0002/–.0000 inch CUTTING SHANK MAXIMUM OVERALL NO. OF DIAMETER DIAMETER REAM LENGTH LENGTH FLUTES D1 D2 L2 L1 .0470 – .0625 1/16 3/4 1-1/2 4 .0626 – .0781 5/64 1 2 4 .0782 – .0938 3/32 1-1/4 2-1/4 4 .0939 – .1094 7/64 1-1/4 2-1/4 4 .1095 – .1250 1/8 1-1/4 2-1/4 4 .1251 – .1406 9/64 1-1/2 2-1/2 4 .1407 – .1563 5/32 1-1/2 2-1/2 4 .1564 – .1719 11/64 1-3/4 2-3/4 4 .1720 – .1875 3/16 1-3/4 2-3/4 4 .1876 – .2031 13/64 2 3 4 .2032 – .2188 7/32 2 3 4 .2189 – .2344 15/64 2 3 4 .2345 – .2500 1/4 2 3 4 .2501 – .2656 17/64 2-1/4 3-1/4 6 .2657 – .2813 9/32 2-1/4 3-1/4 6 .2814 – .2969 19/64 2-1/4 3-1/4 6 .2970 – .3125 5/16 2-1/4 3-1/4 6 .3126 – .3281 21/64 2-3/8 3-1/2 6 .3282 – .3438 11/32 2-3/8 3-1/2 6 .3439 – .3594 23/64 2-3/8 3-1/2 6 .3595 – .3750 3/8 2-3/8 3-1/2 6 .3751 – .3906 25/64 2-7/8 4 6 .3907 – .4063 13/32 2-7/8 4 6 .4064 – .4219 27/64 2-7/8 4 6 .4220 – .4375 7/16 2-7/8 4 6 .4376 – .4531 29/64 2-7/8 4 6 .4532 – .4688 15/32 2-7/8 4 6 .4689 – .4844 31/64 2-7/8 4 6 .4845 – .5000 1/2 2-7/8 4 6 SER 200 Fractional reamers can be ordered to specific diameters according to the size range of Cutting Diameter D1. Please order as: • 200. Then the size of the cut diameter in fractional format. • i.e. 200.0492 • Description: Series 200 size 0.0492 • For Metric sizes convert to fractional inches (i.e. ÷ 25.4) • The above sample would be a 1.25mm size (1.25 ÷ 25.4 = 0.0492") All other dimensions are fractional as per table including the Shank www.kyoceraD-sRgILsLtoSol.com DRILLS 327
