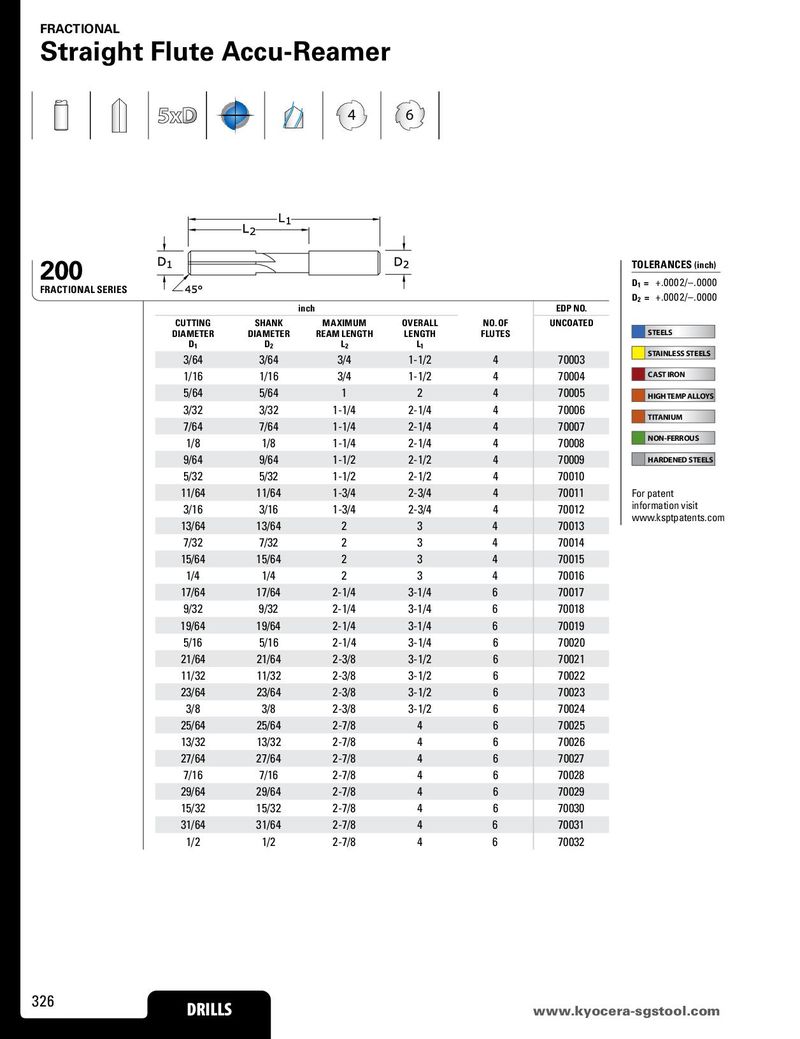

FRACTIONAL Straight Flute Accu-Reamer 4 6 200 TOLERANCES (inch) FRACTIONAL SERIES D1 = +.0002/–.0000 D2 = +.0002/–.0000 inch EDP NO. CUTTING SHANK MAXIMUM OVERALL NO. OF UNCOATED DIAMETER DIAMETER REAM LENGTH LENGTH FLUTES STEELS D1 D2 L2 L1 3/64 3/64 3/4 1-1/2 4 70003 STAINLESS STEELS 1/16 1/16 3/4 1-1/2 4 70004 CAST IRON 5/64 5/64 1 2 4 70005 HIGH TEMP ALLOYS 3/32 3/32 1-1/4 2-1/4 4 70006 TITANIUM 7/64 7/64 1-1/4 2-1/4 4 70007 1/8 1/8 1-1/4 2-1/4 4 70008 NON-FERROUS 9/64 9/64 1-1/2 2-1/2 4 70009 HARDENED STEELS 5/32 5/32 1-1/2 2-1/2 4 70010 11/64 11/64 1-3/4 2-3/4 4 70011 For patent 3/16 3/16 1-3/4 2-3/4 4 70012 information visit 13/64 13/64 2 3 4 70013 www.ksptpatents.com 7/32 7/32 2 3 4 70014 15/64 15/64 2 3 4 70015 1/4 1/4 2 3 4 70016 17/64 17/64 2-1/4 3-1/4 6 70017 9/32 9/32 2-1/4 3-1/4 6 70018 19/64 19/64 2-1/4 3-1/4 6 70019 5/16 5/16 2-1/4 3-1/4 6 70020 21/64 21/64 2-3/8 3-1/2 6 70021 11/32 11/32 2-3/8 3-1/2 6 70022 23/64 23/64 2-3/8 3-1/2 6 70023 3/8 3/8 2-3/8 3-1/2 6 70024 25/64 25/64 2-7/8 4 6 70025 13/32 13/32 2-7/8 4 6 70026 27/64 27/64 2-7/8 4 6 70027 7/16 7/16 2-7/8 4 6 70028 29/64 29/64 2-7/8 4 6 70029 15/32 15/32 2-7/8 4 6 70030 31/64 31/64 2-7/8 4 6 70031 1/2 1/2 2-7/8 4 6 70032 326 DRILLS www.kDyRoIcLeLrSa-sgstool.com
