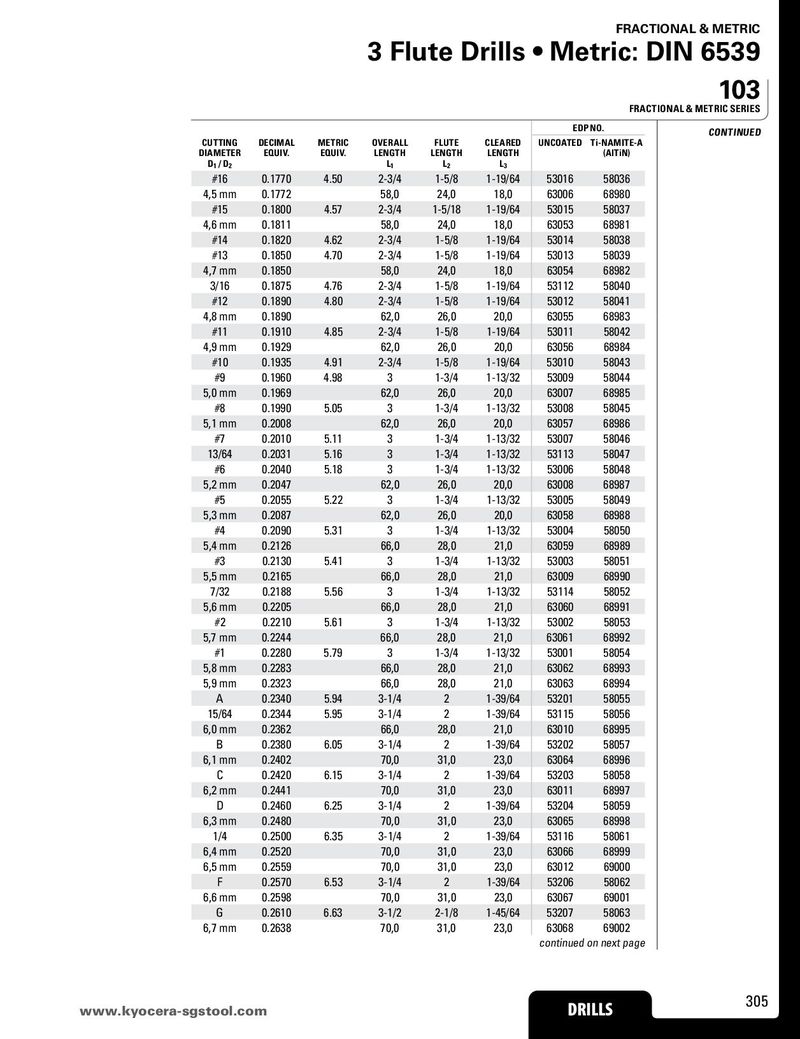

FRACTIONAL & METRIC 3 Flute Drills • Metric: DIN 6539 103 FRACTIONAL & METRIC SERIES EDP NO. CONTINUED CUTTING DECIMAL METRIC OVERALL FLUTE CLEARED UNCOATED Ti-NAMITE-A DIAMETER EQUIV. EQUIV. LENGTH LENGTH LENGTH (AlTiN) D1 / D2 L1 L2 L3 #16 0.1770 4.50 2-3/4 1-5/8 1-19/64 53016 58036 4,5 mm 0.1772 58,0 24,0 18,0 63006 68980 #15 0.1800 4.57 2-3/4 1-5/18 1-19/64 53015 58037 4,6 mm 0.1811 58,0 24,0 18,0 63053 68981 #14 0.1820 4.62 2-3/4 1-5/8 1-19/64 53014 58038 #13 0.1850 4.70 2-3/4 1-5/8 1-19/64 53013 58039 4,7 mm 0.1850 58,0 24,0 18,0 63054 68982 3/16 0.1875 4.76 2-3/4 1-5/8 1-19/64 53112 58040 #12 0.1890 4.80 2-3/4 1-5/8 1-19/64 53012 58041 4,8 mm 0.1890 62,0 26,0 20,0 63055 68983 #11 0.1910 4.85 2-3/4 1-5/8 1-19/64 53011 58042 4,9 mm 0.1929 62,0 26,0 20,0 63056 68984 #10 0.1935 4.91 2-3/4 1-5/8 1-19/64 53010 58043 #9 0.1960 4.98 3 1-3/4 1-13/32 53009 58044 5,0 mm 0.1969 62,0 26,0 20,0 63007 68985 #8 0.1990 5.05 3 1-3/4 1-13/32 53008 58045 5,1 mm 0.2008 62,0 26,0 20,0 63057 68986 #7 0.2010 5.11 3 1-3/4 1-13/32 53007 58046 13/64 0.2031 5.16 3 1-3/4 1-13/32 53113 58047 #6 0.2040 5.18 3 1-3/4 1-13/32 53006 58048 5,2 mm 0.2047 62,0 26,0 20,0 63008 68987 #5 0.2055 5.22 3 1-3/4 1-13/32 53005 58049 5,3 mm 0.2087 62,0 26,0 20,0 63058 68988 #4 0.2090 5.31 3 1-3/4 1-13/32 53004 58050 5,4 mm 0.2126 66,0 28,0 21,0 63059 68989 #3 0.2130 5.41 3 1-3/4 1-13/32 53003 58051 5,5 mm 0.2165 66,0 28,0 21,0 63009 68990 7/32 0.2188 5.56 3 1-3/4 1-13/32 53114 58052 5,6 mm 0.2205 66,0 28,0 21,0 63060 68991 #2 0.2210 5.61 3 1-3/4 1-13/32 53002 58053 5,7 mm 0.2244 66,0 28,0 21,0 63061 68992 #1 0.2280 5.79 3 1-3/4 1-13/32 53001 58054 5,8 mm 0.2283 66,0 28,0 21,0 63062 68993 5,9 mm 0.2323 66,0 28,0 21,0 63063 68994 A 0.2340 5.94 3-1/4 2 1-39/64 53201 58055 15/64 0.2344 5.95 3-1/4 2 1-39/64 53115 58056 6,0 mm 0.2362 66,0 28,0 21,0 63010 68995 B 0.2380 6.05 3-1/4 2 1-39/64 53202 58057 6,1 mm 0.2402 70,0 31,0 23,0 63064 68996 C 0.2420 6.15 3-1/4 2 1-39/64 53203 58058 6,2 mm 0.2441 70,0 31,0 23,0 63011 68997 D 0.2460 6.25 3-1/4 2 1-39/64 53204 58059 6,3 mm 0.2480 70,0 31,0 23,0 63065 68998 1/4 0.2500 6.35 3-1/4 2 1-39/64 53116 58061 6,4 mm 0.2520 70,0 31,0 23,0 63066 68999 6,5 mm 0.2559 70,0 31,0 23,0 63012 69000 F 0.2570 6.53 3-1/4 2 1-39/64 53206 58062 6,6 mm 0.2598 70,0 31,0 23,0 63067 69001 G 0.2610 6.63 3-1/2 2-1/8 1-45/64 53207 58063 6,7 mm 0.2638 70,0 31,0 23,0 63068 69002 continued on next page www.kyoceraD-sRgILsLtoSol.com DRILLS 305
