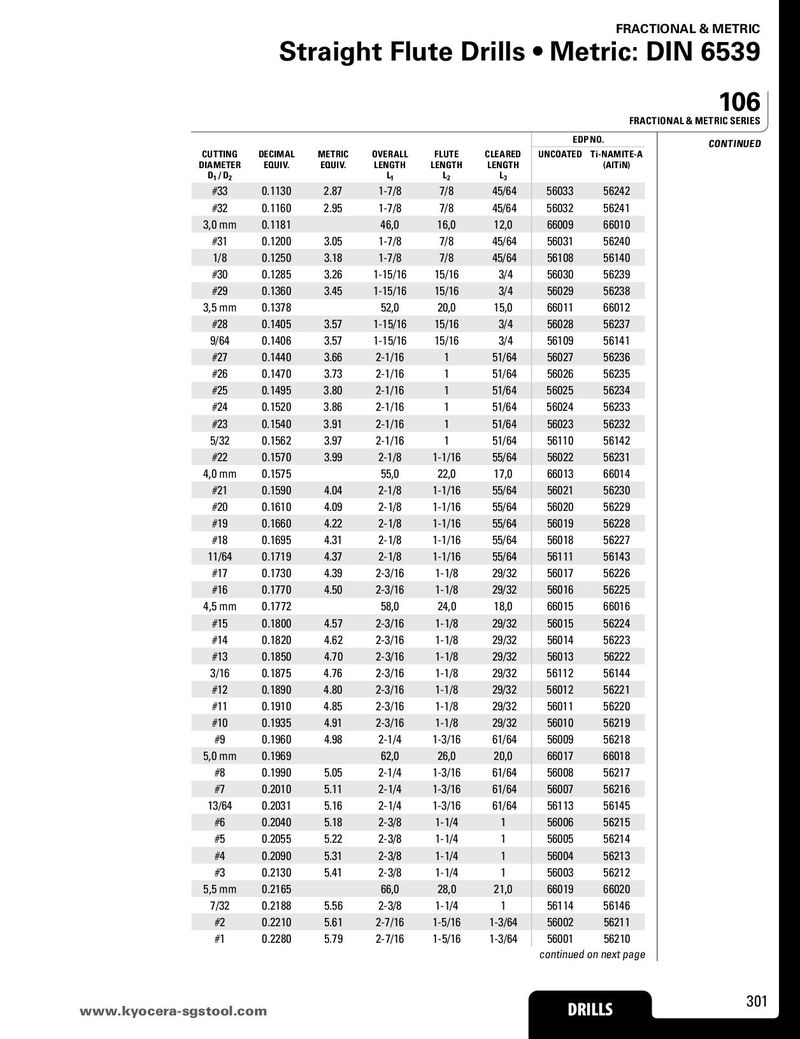

Общий каталог SGS 2018 - страница 301

FRACTIONAL & METRIC Straight Flute Drills • Metric: DIN 6539 106 FRACTIONAL & METRIC SERIES EDP NO. CONTINUED CUTTING DECIMAL METRIC OVERALL FLUTE CLEARED UNCOATED Ti-NAMITE-A DIAMETER EQUIV. EQUIV. LENGTH LENGTH LENGTH (AlTiN) D1 / D2 L1 L2 L3 #33 0.1130 2.87 1-7/8 7/8 45/64 56033 56242 #32 0.1160 2.95 1-7/8 7/8 45/64 56032 56241 3,0 mm 0.1181 46,0 16,0 12,0 66009 66010 #31 0.1200 3.05 1-7/8 7/8 45/64 56031 56240 1/8 0.1250 3.18 1-7/8 7/8 45/64 56108 56140 #30 0.1285 3.26 1-15/16 15/16 3/4 56030 56239 #29 0.1360 3.45 1-15/16 15/16 3/4 56029 56238 3,5 mm 0.1378 52,0 20,0 15,0 66011 66012 #28 0.1405 3.57 1-15/16 15/16 3/4 56028 56237 9/64 0.1406 3.57 1-15/16 15/16 3/4 56109 56141 #27 0.1440 3.66 2-1/16 1 51/64 56027 56236 #26 0.1470 3.73 2-1/16 1 51/64 56026 56235 #25 0.1495 3.80 2-1/16 1 51/64 56025 56234 #24 0.1520 3.86 2-1/16 1 51/64 56024 56233 #23 0.1540 3.91 2-1/16 1 51/64 56023 56232 5/32 0.1562 3.97 2-1/16 1 51/64 56110 56142 #22 0.1570 3.99 2-1/8 1-1/16 55/64 56022 56231 4,0 mm 0.1575 55,0 22,0 17,0 66013 66014 #21 0.1590 4.04 2-1/8 1-1/16 55/64 56021 56230 #20 0.1610 4.09 2-1/8 1-1/16 55/64 56020 56229 #19 0.1660 4.22 2-1/8 1-1/16 55/64 56019 56228 #18 0.1695 4.31 2-1/8 1-1/16 55/64 56018 56227 11/64 0.1719 4.37 2-1/8 1-1/16 55/64 56111 56143 #17 0.1730 4.39 2-3/16 1-1/8 29/32 56017 56226 #16 0.1770 4.50 2-3/16 1-1/8 29/32 56016 56225 4,5 mm 0.1772 58,0 24,0 18,0 66015 66016 #15 0.1800 4.57 2-3/16 1-1/8 29/32 56015 56224 #14 0.1820 4.62 2-3/16 1-1/8 29/32 56014 56223 #13 0.1850 4.70 2-3/16 1-1/8 29/32 56013 56222 3/16 0.1875 4.76 2-3/16 1-1/8 29/32 56112 56144 #12 0.1890 4.80 2-3/16 1-1/8 29/32 56012 56221 #11 0.1910 4.85 2-3/16 1-1/8 29/32 56011 56220 #10 0.1935 4.91 2-3/16 1-1/8 29/32 56010 56219 #9 0.1960 4.98 2-1/4 1-3/16 61/64 56009 56218 5,0 mm 0.1969 62,0 26,0 20,0 66017 66018 #8 0.1990 5.05 2-1/4 1-3/16 61/64 56008 56217 #7 0.2010 5.11 2-1/4 1-3/16 61/64 56007 56216 13/64 0.2031 5.16 2-1/4 1-3/16 61/64 56113 56145 #6 0.2040 5.18 2-3/8 1-1/4 1 56006 56215 #5 0.2055 5.22 2-3/8 1-1/4 1 56005 56214 #4 0.2090 5.31 2-3/8 1-1/4 1 56004 56213 #3 0.2130 5.41 2-3/8 1-1/4 1 56003 56212 5,5 mm 0.2165 66,0 28,0 21,0 66019 66020 7/32 0.2188 5.56 2-3/8 1-1/4 1 56114 56146 #2 0.2210 5.61 2-7/16 1-5/16 1-3/64 56002 56211 #1 0.2280 5.79 2-7/16 1-5/16 1-3/64 56001 56210 continued on next page www.kyoceraD-sRgILsLtoSol.com DRILLS 301
