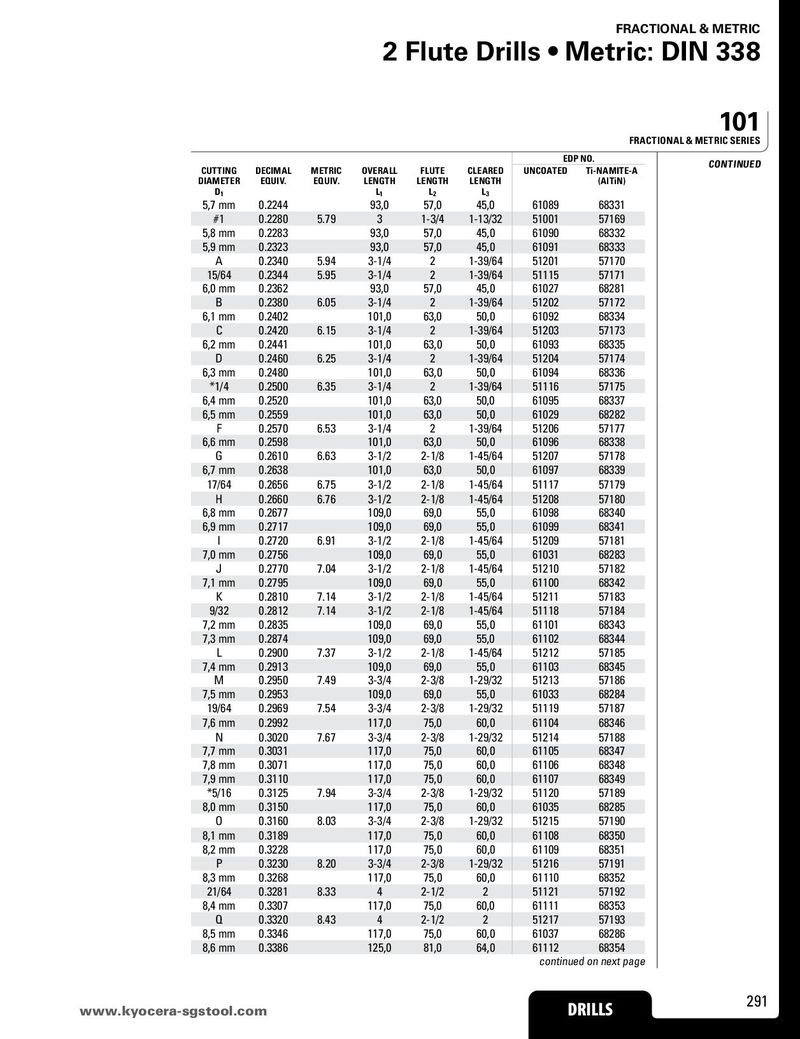

FRACTIONAL & METRIC 2 Flute Drills • Metric: DIN 338 101 FRACTIONAL & METRIC SERIES EDP NO. CONTINUED CUTTING DECIMAL METRIC OVERALL FLUTE CLEARED UNCOATED Ti-NAMITE-A DIAMETER EQUIV. EQUIV. LENGTH LENGTH LENGTH (AlTiN) D1 L1 L2 L3 5,7 mm 0.2244 93,0 57,0 45,0 61089 68331 #1 0.2280 5.79 3 1-3/4 1-13/32 51001 57169 5,8 mm 0.2283 93,0 57,0 45,0 61090 68332 5,9 mm 0.2323 93,0 57,0 45,0 61091 68333 A 0.2340 5.94 3-1/4 2 1-39/64 51201 57170 15/64 0.2344 5.95 3-1/4 2 1-39/64 51115 57171 6,0 mm 0.2362 93,0 57,0 45,0 61027 68281 B 0.2380 6.05 3-1/4 2 1-39/64 51202 57172 6,1 mm 0.2402 101,0 63,0 50,0 61092 68334 C 0.2420 6.15 3-1/4 2 1-39/64 51203 57173 6,2 mm 0.2441 101,0 63,0 50,0 61093 68335 D 0.2460 6.25 3-1/4 2 1-39/64 51204 57174 6,3 mm 0.2480 101,0 63,0 50,0 61094 68336 *1/4 0.2500 6.35 3-1/4 2 1-39/64 51116 57175 6,4 mm 0.2520 101,0 63,0 50,0 61095 68337 6,5 mm 0.2559 101,0 63,0 50,0 61029 68282 F 0.2570 6.53 3-1/4 2 1-39/64 51206 57177 6,6 mm 0.2598 101,0 63,0 50,0 61096 68338 G 0.2610 6.63 3-1/2 2-1/8 1-45/64 51207 57178 6,7 mm 0.2638 101,0 63,0 50,0 61097 68339 17/64 0.2656 6.75 3-1/2 2-1/8 1-45/64 51117 57179 H 0.2660 6.76 3-1/2 2-1/8 1-45/64 51208 57180 6,8 mm 0.2677 109,0 69,0 55,0 61098 68340 6,9 mm 0.2717 109,0 69,0 55,0 61099 68341 I 0.2720 6.91 3-1/2 2-1/8 1-45/64 51209 57181 7,0 mm 0.2756 109,0 69,0 55,0 61031 68283 J 0.2770 7.04 3-1/2 2-1/8 1-45/64 51210 57182 7,1 mm 0.2795 109,0 69,0 55,0 61100 68342 K 0.2810 7.14 3-1/2 2-1/8 1-45/64 51211 57183 9/32 0.2812 7.14 3-1/2 2-1/8 1-45/64 51118 57184 7,2 mm 0.2835 109,0 69,0 55,0 61101 68343 7,3 mm 0.2874 109,0 69,0 55,0 61102 68344 L 0.2900 7.37 3-1/2 2-1/8 1-45/64 51212 57185 7,4 mm 0.2913 109,0 69,0 55,0 61103 68345 M 0.2950 7.49 3-3/4 2-3/8 1-29/32 51213 57186 7,5 mm 0.2953 109,0 69,0 55,0 61033 68284 19/64 0.2969 7.54 3-3/4 2-3/8 1-29/32 51119 57187 7,6 mm 0.2992 117,0 75,0 60,0 61104 68346 N 0.3020 7.67 3-3/4 2-3/8 1-29/32 51214 57188 7,7 mm 0.3031 117,0 75,0 60,0 61105 68347 7,8 mm 0.3071 117,0 75,0 60,0 61106 68348 7,9 mm 0.3110 117,0 75,0 60,0 61107 68349 *5/16 0.3125 7.94 3-3/4 2-3/8 1-29/32 51120 57189 8,0 mm 0.3150 117,0 75,0 60,0 61035 68285 O 0.3160 8.03 3-3/4 2-3/8 1-29/32 51215 57190 8,1 mm 0.3189 117,0 75,0 60,0 61108 68350 8,2 mm 0.3228 117,0 75,0 60,0 61109 68351 P 0.3230 8.20 3-3/4 2-3/8 1-29/32 51216 57191 8,3 mm 0.3268 117,0 75,0 60,0 61110 68352 21/64 0.3281 8.33 4 2-1/2 2 51121 57192 8,4 mm 0.3307 117,0 75,0 60,0 61111 68353 Q 0.3320 8.43 4 2-1/2 2 51217 57193 8,5 mm 0.3346 117,0 75,0 60,0 61037 68286 8,6 mm 0.3386 125,0 81,0 64,0 61112 68354 continued on next page www.kyoceraD-sRgILsLtoSol.com DRILLS 291
