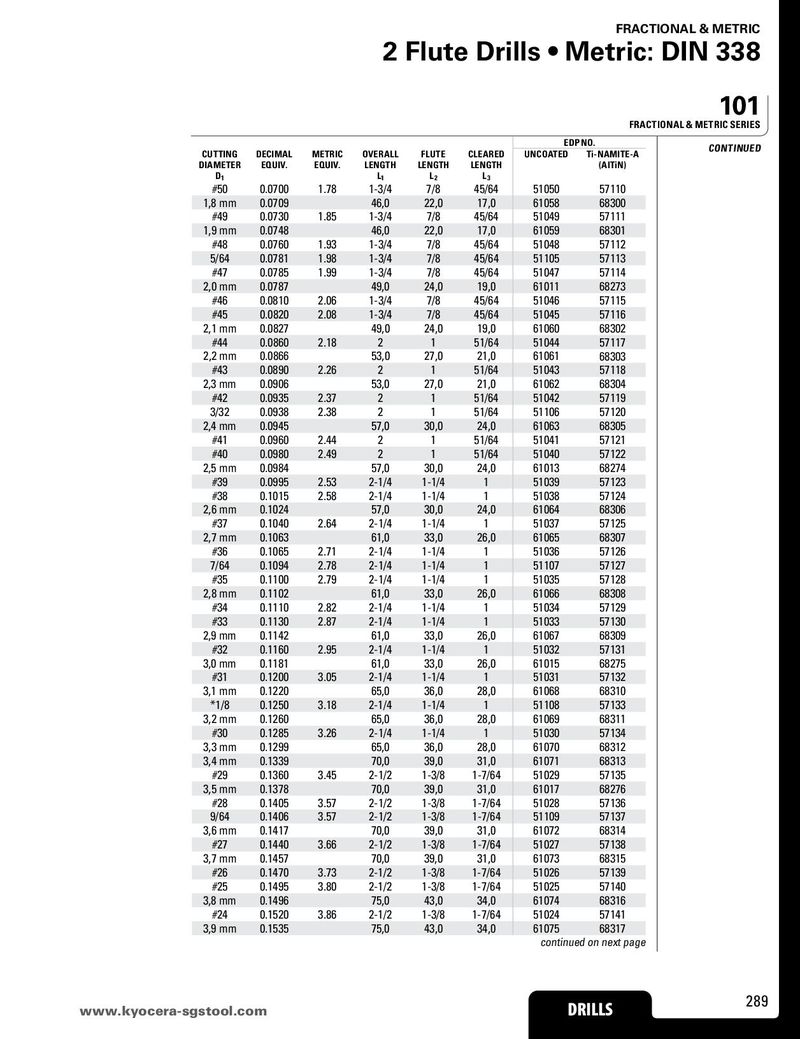

FRACTIONAL & METRIC 2 Flute Drills • Metric: DIN 338 101 FRACTIONAL & METRIC SERIES EDP NO. CONTINUED CUTTING DECIMAL METRIC OVERALL FLUTE CLEARED UNCOATED Ti-NAMITE-A DIAMETER EQUIV. EQUIV. LENGTH LENGTH LENGTH (AlTiN) D1 L1 L2 L3 #50 0.0700 1.78 1-3/4 7/8 45/64 51050 57110 1,8 mm 0.0709 46,0 22,0 17,0 61058 68300 #49 0.0730 1.85 1-3/4 7/8 45/64 51049 57111 1,9 mm 0.0748 46,0 22,0 17,0 61059 68301 #48 0.0760 1.93 1-3/4 7/8 45/64 51048 57112 5/64 0.0781 1.98 1-3/4 7/8 45/64 51105 57113 #47 0.0785 1.99 1-3/4 7/8 45/64 51047 57114 2,0 mm 0.0787 49,0 24,0 19,0 61011 68273 #46 0.0810 2.06 1-3/4 7/8 45/64 51046 57115 #45 0.0820 2.08 1-3/4 7/8 45/64 51045 57116 2,1 mm 0.0827 49,0 24,0 19,0 61060 68302 #44 0.0860 2.18 2 1 51/64 51044 57117 2,2 mm 0.0866 53,0 27,0 21,0 61061 68303 #43 0.0890 2.26 2 1 51/64 51043 57118 2,3 mm 0.0906 53,0 27,0 21,0 61062 68304 #42 0.0935 2.37 2 1 51/64 51042 57119 3/32 0.0938 2.38 2 1 51/64 51106 57120 2,4 mm 0.0945 57,0 30,0 24,0 61063 68305 #41 0.0960 2.44 2 1 51/64 51041 57121 #40 0.0980 2.49 2 1 51/64 51040 57122 2,5 mm 0.0984 57,0 30,0 24,0 61013 68274 #39 0.0995 2.53 2-1/4 1-1/4 1 51039 57123 #38 0.1015 2.58 2-1/4 1-1/4 1 51038 57124 2,6 mm 0.1024 57,0 30,0 24,0 61064 68306 #37 0.1040 2.64 2-1/4 1-1/4 1 51037 57125 2,7 mm 0.1063 61,0 33,0 26,0 61065 68307 #36 0.1065 2.71 2-1/4 1-1/4 1 51036 57126 7/64 0.1094 2.78 2-1/4 1-1/4 1 51107 57127 #35 0.1100 2.79 2-1/4 1-1/4 1 51035 57128 2,8 mm 0.1102 61,0 33,0 26,0 61066 68308 #34 0.1110 2.82 2-1/4 1-1/4 1 51034 57129 #33 0.1130 2.87 2-1/4 1-1/4 1 51033 57130 2,9 mm 0.1142 61,0 33,0 26,0 61067 68309 #32 0.1160 2.95 2-1/4 1-1/4 1 51032 57131 3,0 mm 0.1181 61,0 33,0 26,0 61015 68275 #31 0.1200 3.05 2-1/4 1-1/4 1 51031 57132 3,1 mm 0.1220 65,0 36,0 28,0 61068 68310 *1/8 0.1250 3.18 2-1/4 1-1/4 1 51108 57133 3,2 mm 0.1260 65,0 36,0 28,0 61069 68311 #30 0.1285 3.26 2-1/4 1-1/4 1 51030 57134 3,3 mm 0.1299 65,0 36,0 28,0 61070 68312 3,4 mm 0.1339 70,0 39,0 31,0 61071 68313 #29 0.1360 3.45 2-1/2 1-3/8 1-7/64 51029 57135 3,5 mm 0.1378 70,0 39,0 31,0 61017 68276 #28 0.1405 3.57 2-1/2 1-3/8 1-7/64 51028 57136 9/64 0.1406 3.57 2-1/2 1-3/8 1-7/64 51109 57137 3,6 mm 0.1417 70,0 39,0 31,0 61072 68314 #27 0.1440 3.66 2-1/2 1-3/8 1-7/64 51027 57138 3,7 mm 0.1457 70,0 39,0 31,0 61073 68315 #26 0.1470 3.73 2-1/2 1-3/8 1-7/64 51026 57139 #25 0.1495 3.80 2-1/2 1-3/8 1-7/64 51025 57140 3,8 mm 0.1496 75,0 43,0 34,0 61074 68316 #24 0.1520 3.86 2-1/2 1-3/8 1-7/64 51024 57141 3,9 mm 0.1535 75,0 43,0 34,0 61075 68317 continued on next page www.kyoceraD-sRgILsLtoSol.com DRILLS 289
