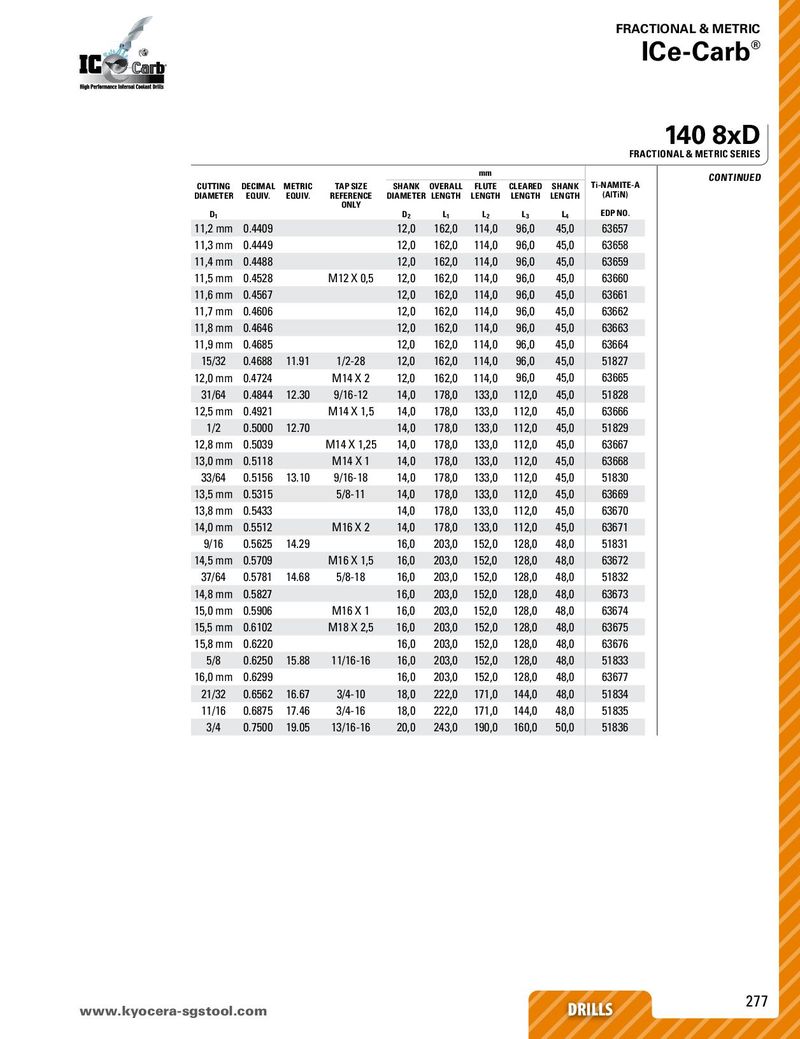

FRACTIONAL & METRIC ® ICe-Carb® 140 8xD FRACTIONAL & METRIC SERIES mm CONTINUED CUTTING DECIMAL METRIC TAP SIZE SHANK OVERALL FLUTE CLEARED SHANK Ti-NAMITE-A DIAMETER EQUIV. EQUIV. REFERENCE DIAMETER LENGTH LENGTH LENGTH LENGTH (AlTiN) ONLY EDP NO. D1 D2 L1 L2 L3 L4 11,2 mm 0.4409 12,0 162,0 114,0 96,0 45,0 63657 11,3 mm 0.4449 12,0 162,0 114,0 96,0 45,0 63658 11,4 mm 0.4488 12,0 162,0 114,0 96,0 45,0 63659 11,5 mm 0.4528 M12 X 0,5 12,0 162,0 114,0 96,0 45,0 63660 11,6 mm 0.4567 12,0 162,0 114,0 96,0 45,0 63661 11,7 mm 0.4606 12,0 162,0 114,0 96,0 45,0 63662 11,8 mm 0.4646 12,0 162,0 114,0 96,0 45,0 63663 11,9 mm 0.4685 12,0 162,0 114,0 96,0 45,0 63664 15/32 0.4688 11.91 1/2-28 12,0 162,0 114,0 96,0 45,0 51827 12,0 mm 0.4724 M14 X 2 12,0 162,0 114,0 96,0 45,0 63665 31/64 0.4844 12.30 9/16-12 14,0 178,0 133,0 112,0 45,0 51828 12,5 mm 0.4921 M14 X 1,5 14,0 178,0 133,0 112,0 45,0 63666 1/2 0.5000 12.70 14,0 178,0 133,0 112,0 45,0 51829 12,8 mm 0.5039 M14 X 1,25 14,0 178,0 133,0 112,0 45,0 63667 13,0 mm 0.5118 M14 X 1 14,0 178,0 133,0 112,0 45,0 63668 33/64 0.5156 13.10 9/16-18 14,0 178,0 133,0 112,0 45,0 51830 13,5 mm 0.5315 5/8-11 14,0 178,0 133,0 112,0 45,0 63669 13,8 mm 0.5433 14,0 178,0 133,0 112,0 45,0 63670 14,0 mm 0.5512 M16 X 2 14,0 178,0 133,0 112,0 45,0 63671 9/16 0.5625 14.29 16,0 203,0 152,0 128,0 48,0 51831 14,5 mm 0.5709 M16 X 1,5 16,0 203,0 152,0 128,0 48,0 63672 37/64 0.5781 14.68 5/8-18 16,0 203,0 152,0 128,0 48,0 51832 14,8 mm 0.5827 16,0 203,0 152,0 128,0 48,0 63673 15,0 mm 0.5906 M16 X 1 16,0 203,0 152,0 128,0 48,0 63674 15,5 mm 0.6102 M18 X 2,5 16,0 203,0 152,0 128,0 48,0 63675 15,8 mm 0.6220 16,0 203,0 152,0 128,0 48,0 63676 5/8 0.6250 15.88 11/16-16 16,0 203,0 152,0 128,0 48,0 51833 16,0 mm 0.6299 16,0 203,0 152,0 128,0 48,0 63677 21/32 0.6562 16.67 3/4-10 18,0 222,0 171,0 144,0 48,0 51834 11/16 0.6875 17.46 3/4-16 18,0 222,0 171,0 144,0 48,0 51835 3/4 0.7500 19.05 13/16-16 20,0 243,0 190,0 160,0 50,0 51836 www.kyoceraD-sRgILsLtoSol.com DRILLS 277
