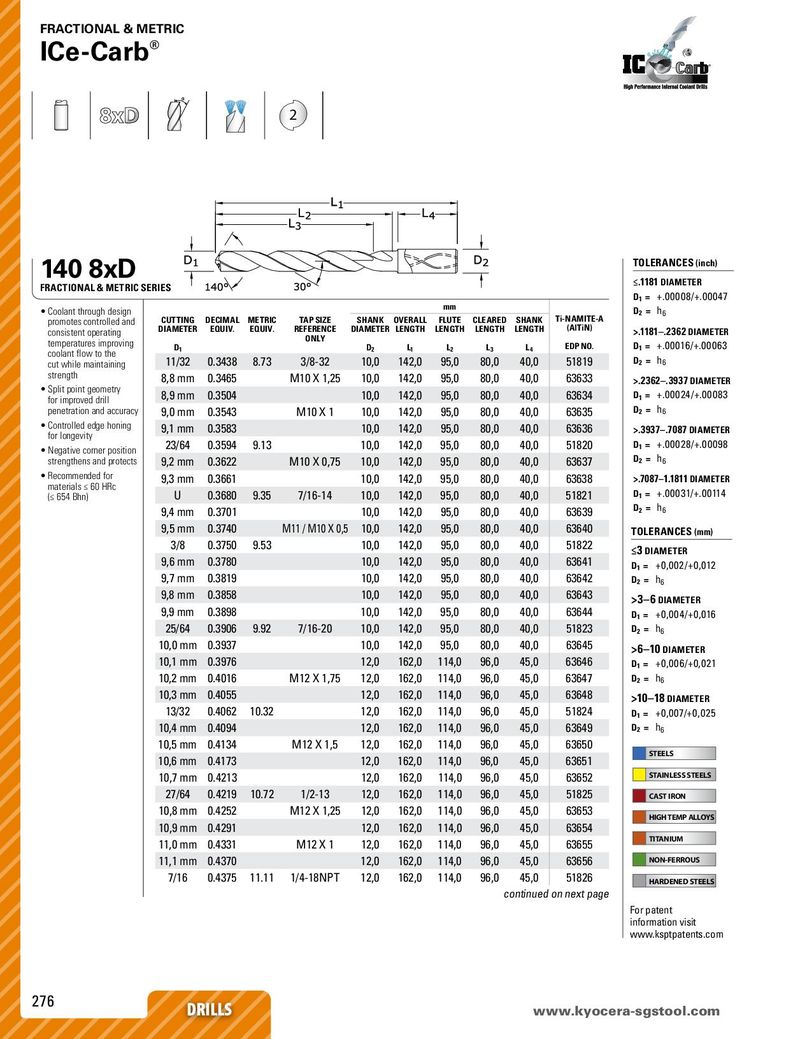

Общий каталог SGS 2018 - страница 276

FRACTIONAL & METRIC ICe-Carb® ® 2 140 8xD TOLERANCES (inch) FRACTIONAL & METRIC SERIES ≤.1181 DIAMETER D1 = +.00008/+.00047 • Coolant through design mm D2 = h6 promotes controlled and CUTTING DECIMAL METRIC TAP SIZE SHANK OVERALL FLUTE CLEARED SHANK Ti-NAMITE-A consistent operating DIAMETER EQUIV. EQUIV. REFERENCE DIAMETER LENGTH LENGTH LENGTH LENGTH (AlTiN) >.1181–.2362 DIAMETER temperatures improving ONLY EDP NO. D1 = +.00016/+.00063 coolant flow to the D1 D2 L1 L2 L3 L4 cut while maintaining 11/32 0.3438 8.73 3/8-32 10,0 142,0 95,0 80,0 40,0 51819 D2 = h6 strength 8,8 mm 0.3465 M10 X 1,25 10,0 142,0 95,0 80,0 40,0 63633 >.2362–.3937 DIAMETER • Split point geometry 8,9 mm 0.3504 10,0 142,0 95,0 80,0 40,0 63634 D1 = +.00024/+.00083 for improved drill h6 penetration and accuracy 9,0 mm 0.3543 M10 X 1 10,0 142,0 95,0 80,0 40,0 63635 D2 = • Controlled edge honing 9,1 mm 0.3583 10,0 142,0 95,0 80,0 40,0 63636 >.3937–.7087 DIAMETER for longevity 23/64 0.3594 9.13 10,0 142,0 95,0 80,0 40,0 51820 D1 = +.00028/+.00098 • Negative corner position D2 = h6 strengthens and protects 9,2 mm 0.3622 M10 X 0,75 10,0 142,0 95,0 80,0 40,0 63637 • Recommended for 9,3 mm 0.3661 10,0 142,0 95,0 80,0 40,0 63638 >.7087–1.1811 DIAMETER materials ≤ 60 HRc U 0.3680 9.35 7/16-14 10,0 142,0 95,0 80,0 40,0 51821 D1 = +.00031/+.00114 (≤ 654 Bhn) 9,4 mm 0.3701 10,0 142,0 95,0 80,0 40,0 63639 D2 = h6 9,5 mm 0.3740 M11 / M10 X 0,5 10,0 142,0 95,0 80,0 40,0 63640 TOLERANCES (mm) 3/8 0.3750 9.53 10,0 142,0 95,0 80,0 40,0 51822 ≤3 DIAMETER 9,6 mm 0.3780 10,0 142,0 95,0 80,0 40,0 63641 D1 = + 0, 0 0 2 /+ 0, 012 9,7 mm 0.3819 10,0 142,0 95,0 80,0 40,0 63642 D2 = h6 9,8 mm 0.3858 10,0 142,0 95,0 80,0 40,0 63643 >3–6 DIAMETER 9,9 mm 0.3898 10,0 142,0 95,0 80,0 40,0 63644 D1 = +0,004/+0,016 25/64 0.3906 9.92 7/16-20 10,0 142,0 95,0 80,0 40,0 51823 D2 = h6 10,0 mm 0.3937 10,0 142,0 95,0 80,0 40,0 63645 >6–10 DIAMETER 10,1 mm 0.3976 12,0 162,0 114,0 96,0 45,0 63646 D1 = +0,006/+0,021 10,2 mm 0.4016 M12 X 1,75 12,0 162,0 114,0 96,0 45,0 63647 D2 = h6 10,3 mm 0.4055 12,0 162,0 114,0 96,0 45,0 63648 >10–18 DIAMETER 13/32 0.4062 10.32 12,0 162,0 114,0 96,0 45,0 51824 D1 = +0,007/+0,025 10,4 mm 0.4094 12,0 162,0 114,0 96,0 45,0 63649 D2 = h6 10,5 mm 0.4134 M12 X 1,5 12,0 162,0 114,0 96,0 45,0 63650 10,6 mm 0.4173 12,0 162,0 114,0 96,0 45,0 63651 STEELS 10,7 mm 0.4213 12,0 162,0 114,0 96,0 45,0 63652 STAINLESS STEELS 27/64 0.4219 10.72 1/2-13 12,0 162,0 114,0 96,0 45,0 51825 CAST IRON 10,8 mm 0.4252 M12 X 1,25 12,0 162,0 114,0 96,0 45,0 63653 HIGH TEMP ALLOYS 10,9 mm 0.4291 12,0 162,0 114,0 96,0 45,0 63654 11,0 mm 0.4331 M12 X 1 12,0 162,0 114,0 96,0 45,0 63655 TITANIUM 11,1 mm 0.4370 12,0 162,0 114,0 96,0 45,0 63656 NON-FERROUS 7/16 0.4375 11.11 1/4-18NPT 12,0 162,0 114,0 96,0 45,0 51826 HARDENED STEELS continued on next page For patent information visit www.ksptpatents.com 276 DRILLS www.kDyRoIcLeLrSa-sgstool.com
