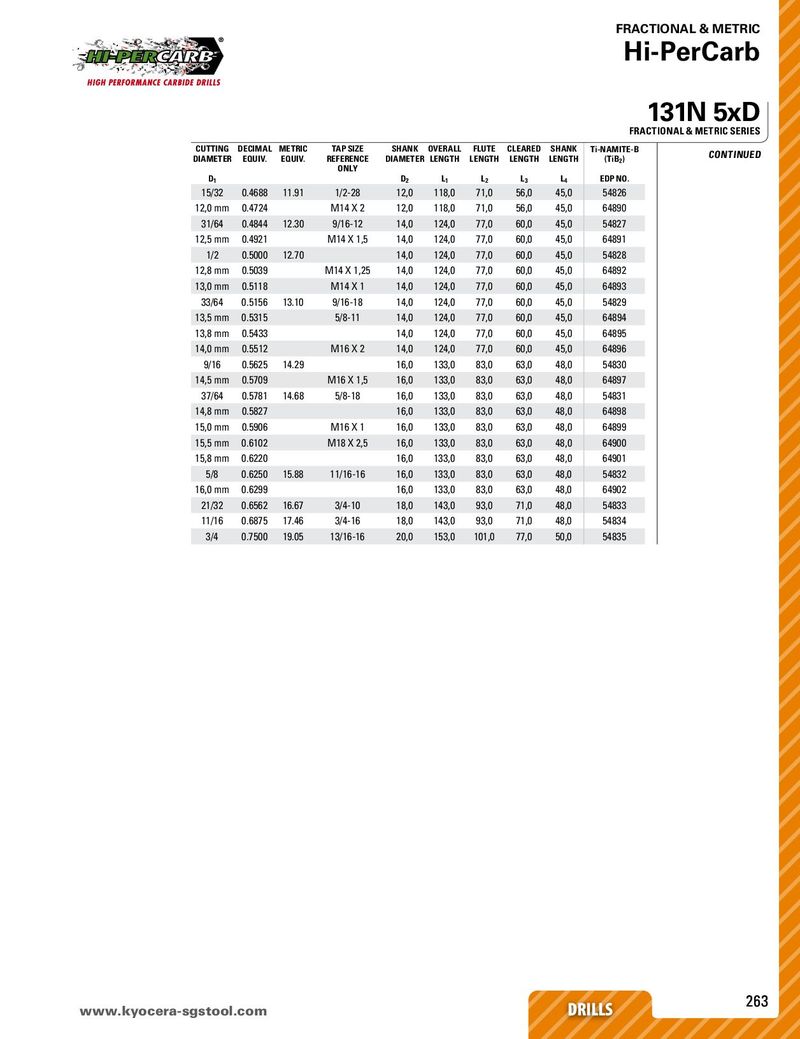

Общий каталог SGS 2018 - страница 263

FRACTIONAL & METRIC Hi-PerCarb 131N 5xD FRACTIONAL & METRIC SERIES CUTTING DECIMAL METRIC TAP SIZE SHANK OVERALL FLUTE CLEARED SHANK Ti-NAMITE-B CONTINUED DIAMETER EQUIV. EQUIV. REFERENCE DIAMETER LENGTH LENGTH LENGTH LENGTH (TiB2) ONLY D1 D2 L1 L2 L3 L4 EDP NO. 15/32 0.4688 11.91 1/2-28 12,0 118,0 71,0 56,0 45,0 54826 12,0 mm 0.4724 M14 X 2 12,0 118,0 71,0 56,0 45,0 64890 31/64 0.4844 12.30 9/16-12 14,0 124,0 77,0 60,0 45,0 54827 12,5 mm 0.4921 M14 X 1,5 14,0 124,0 77,0 60,0 45,0 64891 1/2 0.5000 12.70 14,0 124,0 77,0 60,0 45,0 54828 12,8 mm 0.5039 M14 X 1,25 14,0 124,0 77,0 60,0 45,0 64892 13,0 mm 0.5118 M14 X 1 14,0 124,0 77,0 60,0 45,0 64893 33/64 0.5156 13.10 9/16-18 14,0 124,0 77,0 60,0 45,0 54829 13,5 mm 0.5315 5/8-11 14,0 124,0 77,0 60,0 45,0 64894 13,8 mm 0.5433 14,0 124,0 77,0 60,0 45,0 64895 14,0 mm 0.5512 M16 X 2 14,0 124,0 77,0 60,0 45,0 64896 9/16 0.5625 14.29 16,0 133,0 83,0 63,0 48,0 54830 14,5 mm 0.5709 M16 X 1,5 16,0 133,0 83,0 63,0 48,0 64897 37/64 0.5781 14.68 5/8-18 16,0 133,0 83,0 63,0 48,0 54831 14,8 mm 0.5827 16,0 133,0 83,0 63,0 48,0 64898 15,0 mm 0.5906 M16 X 1 16,0 133,0 83,0 63,0 48,0 64899 15,5 mm 0.6102 M18 X 2,5 16,0 133,0 83,0 63,0 48,0 64900 15,8 mm 0.6220 16,0 133,0 83,0 63,0 48,0 64901 5/8 0.6250 15.88 11/16-16 16,0 133,0 83,0 63,0 48,0 54832 16,0 mm 0.6299 16,0 133,0 83,0 63,0 48,0 64902 21/32 0.6562 16.67 3/4-10 18,0 143,0 93,0 71,0 48,0 54833 11/16 0.6875 17.46 3/4-16 18,0 143,0 93,0 71,0 48,0 54834 3/4 0.7500 19.05 13/16-16 20,0 153,0 101,0 77,0 50,0 54835 www.kyoceraD-sRgILsLtoSol.com DRILLS 263
