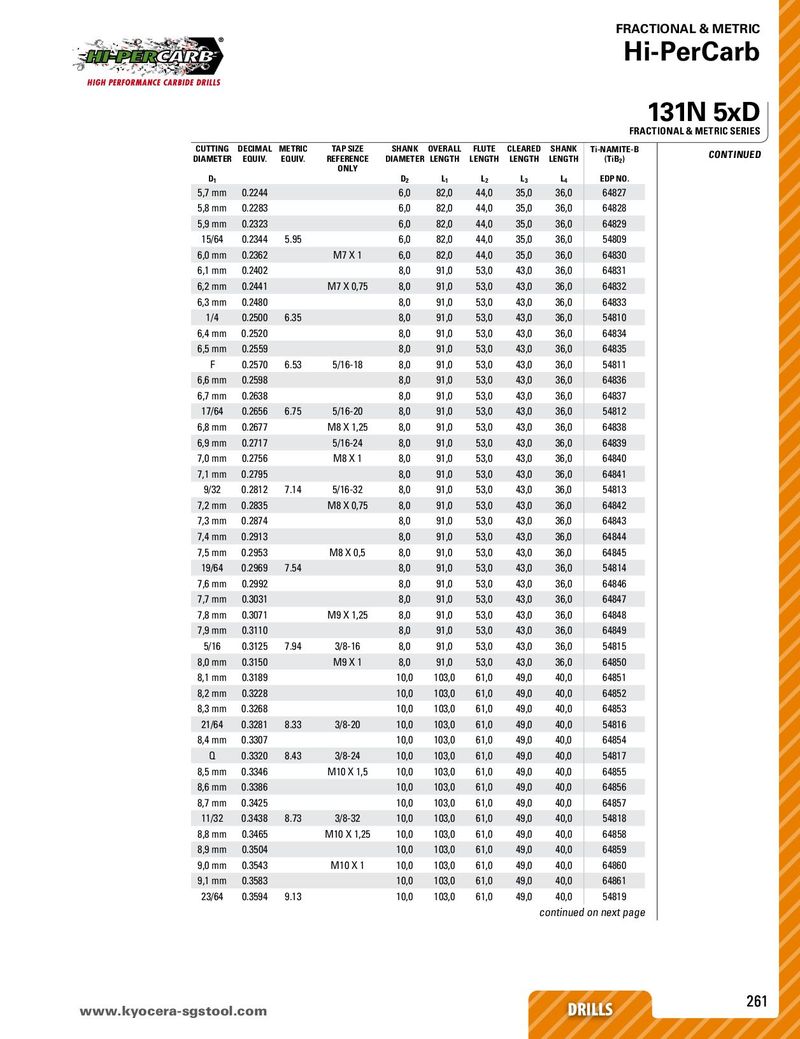

Общий каталог SGS 2018 - страница 261

FRACTIONAL & METRIC Hi-PerCarb 131N 5xD FRACTIONAL & METRIC SERIES CUTTING DECIMAL METRIC TAP SIZE SHANK OVERALL FLUTE CLEARED SHANK Ti-NAMITE-B CONTINUED DIAMETER EQUIV. EQUIV. REFERENCE DIAMETER LENGTH LENGTH LENGTH LENGTH (TiB2) ONLY D1 D2 L1 L2 L3 L4 EDP NO. 5,7 mm 0.2244 6,0 82,0 44,0 35,0 36,0 64827 5,8 mm 0.2283 6,0 82,0 44,0 35,0 36,0 64828 5,9 mm 0.2323 6,0 82,0 44,0 35,0 36,0 64829 15/64 0.2344 5.95 6,0 82,0 44,0 35,0 36,0 54809 6,0 mm 0.2362 M7 X 1 6,0 82,0 44,0 35,0 36,0 64830 6,1 mm 0.2402 8,0 91,0 53,0 43,0 36,0 64831 6,2 mm 0.2441 M7 X 0,75 8,0 91,0 53,0 43,0 36,0 64832 6,3 mm 0.2480 8,0 91,0 53,0 43,0 36,0 64833 1/4 0.2500 6.35 8,0 91,0 53,0 43,0 36,0 54810 6,4 mm 0.2520 8,0 91,0 53,0 43,0 36,0 64834 6,5 mm 0.2559 8,0 91,0 53,0 43,0 36,0 64835 F 0.2570 6.53 5/16-18 8,0 91,0 53,0 43,0 36,0 54811 6,6 mm 0.2598 8,0 91,0 53,0 43,0 36,0 64836 6,7 mm 0.2638 8,0 91,0 53,0 43,0 36,0 64837 17/64 0.2656 6.75 5/16-20 8,0 91,0 53,0 43,0 36,0 54812 6,8 mm 0.2677 M8 X 1,25 8,0 91,0 53,0 43,0 36,0 64838 6,9 mm 0.2717 5/16-24 8,0 91,0 53,0 43,0 36,0 64839 7,0 mm 0.2756 M8 X 1 8,0 91,0 53,0 43,0 36,0 64840 7,1 mm 0.2795 8,0 91,0 53,0 43,0 36,0 64841 9/32 0.2812 7.14 5/16-32 8,0 91,0 53,0 43,0 36,0 54813 7,2 mm 0.2835 M8 X 0,75 8,0 91,0 53,0 43,0 36,0 64842 7,3 mm 0.2874 8,0 91,0 53,0 43,0 36,0 64843 7,4 mm 0.2913 8,0 91,0 53,0 43,0 36,0 64844 7,5 mm 0.2953 M8 X 0,5 8,0 91,0 53,0 43,0 36,0 64845 19/64 0.2969 7.54 8,0 91,0 53,0 43,0 36,0 54814 7,6 mm 0.2992 8,0 91,0 53,0 43,0 36,0 64846 7,7 mm 0.3031 8,0 91,0 53,0 43,0 36,0 64847 7,8 mm 0.3071 M9 X 1,25 8,0 91,0 53,0 43,0 36,0 64848 7,9 mm 0.3110 8,0 91,0 53,0 43,0 36,0 64849 5/16 0.3125 7.94 3/8-16 8,0 91,0 53,0 43,0 36,0 54815 8,0 mm 0.3150 M9 X 1 8,0 91,0 53,0 43,0 36,0 64850 8,1 mm 0.3189 10,0 103,0 61,0 49,0 40,0 64851 8,2 mm 0.3228 10,0 103,0 61,0 49,0 40,0 64852 8,3 mm 0.3268 10,0 103,0 61,0 49,0 40,0 64853 21/64 0.3281 8.33 3/8-20 10,0 103,0 61,0 49,0 40,0 54816 8,4 mm 0.3307 10,0 103,0 61,0 49,0 40,0 64854 Q 0.3320 8.43 3/8-24 10,0 103,0 61,0 49,0 40,0 54817 8,5 mm 0.3346 M10 X 1,5 10,0 103,0 61,0 49,0 40,0 64855 8,6 mm 0.3386 10,0 103,0 61,0 49,0 40,0 64856 8,7 mm 0.3425 10,0 103,0 61,0 49,0 40,0 64857 11/32 0.3438 8.73 3/8-32 10,0 103,0 61,0 49,0 40,0 54818 8,8 mm 0.3465 M10 X 1,25 10,0 103,0 61,0 49,0 40,0 64858 8,9 mm 0.3504 10,0 103,0 61,0 49,0 40,0 64859 9,0 mm 0.3543 M10 X 1 10,0 103,0 61,0 49,0 40,0 64860 9,1 mm 0.3583 10,0 103,0 61,0 49,0 40,0 64861 23/64 0.3594 9.13 10,0 103,0 61,0 49,0 40,0 54819 continued on next page www.kyoceraD-sRgILsLtoSol.com DRILLS 261
