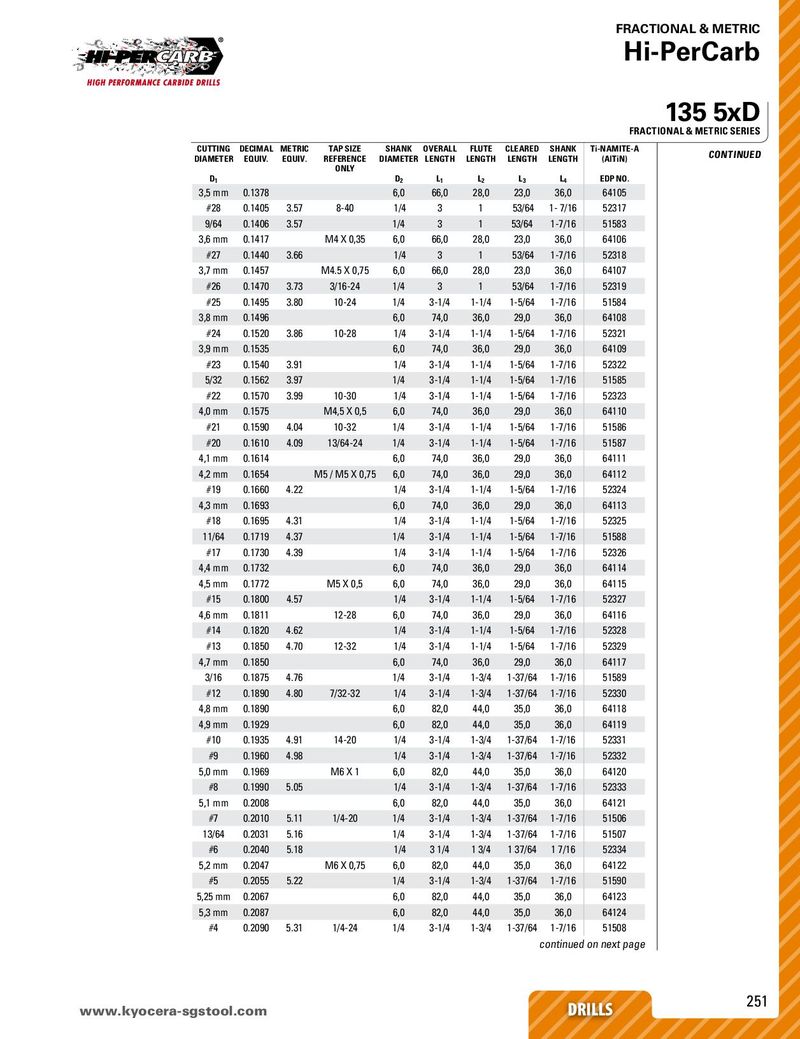

Общий каталог SGS 2018 - страница 251
Навигация
Каталог SGS шестизубые фрезы T-carb
Каталог SGS микро инструмент 2021
Каталог SGS фрезы для алюминия S-carb
Каталог SGS высокопроизводительные черновые фрезы
Каталог SGS инструмент для обработки алюминия
Общий каталог SGS 2015 на русском
135 5xD
FRACTIONAL & METRIC SERIES
| CUTTING DIAMETER | DECIMAL EQUIV. | METRIC EQUIV. | TAP SIZE REFERENCE | SHANK DIAMETER | OVERALL LENGTH | FLUTE LENGTH | CLEARED LENGTH | SHANK LENGTH | Ti-NAMITE-A (AlTiN) | CONTINUED |
| D1 | ONLY | D2 | L1 | L2 | L3 | L4 | EDP NO. | |||
| 3,5 mm | 0.1378 | 6,0 | 66,0 | 28,0 | 23,0 | 36,0 | 64105 | |||
| #28 | 0.1405 | 3.57 | 8-40 | 1/4 | 3 | 1 | 53/64 | 1- 7/16 | 52317 | |
| 9/64 | 0.1406 | 3.57 | 1/4 | 3 | 1 | 53/64 | 1-7/16 | 51583 | ||
| 3,6 mm | 0.1417 | M4 X 0,35 | 6,0 | 66,0 | 28,0 | 23,0 | 36,0 | 64106 | ||
| #27 | 0.1440 | 3.66 | 1/4 | 3 | 1 | 53/64 | 1-7/16 | 52318 | ||
| 3,7 mm | 0.1457 | M4.5 X 0,75 | 6,0 | 66,0 | 28,0 | 23,0 | 36,0 | 64107 | ||
| #26 | 0.1470 | 3.73 | 3/16-24 | 1/4 | 3 | 1 | 53/64 | 1-7/16 | 52319 | |
| #25 | 0.1495 | 3.80 | 10-24 | 1/4 | 3-1/4 | 1-1/4 | 1-5/64 | 1-7/16 | 51584 | |
| 3,8 mm | 0.1496 | 6,0 | 74,0 | 36,0 | 29,0 | 36,0 | 64108 | |||
| #24 | 0.1520 | 3.86 | 10-28 | 1/4 | 3-1/4 | 1-1/4 | 1-5/64 | 1-7/16 | 52321 | |
| 3,9 mm | 0.1535 | 6,0 | 74,0 | 36,0 | 29,0 | 36,0 | 64109 | |||
| #23 | 0.1540 | 3.91 | 1/4 | 3-1/4 | 1-1/4 | 1-5/64 | 1-7/16 | 52322 | ||
| 5/32 | 0.1562 | 3.97 | 1/4 | 3-1/4 | 1-1/4 | 1-5/64 | 1-7/16 | 51585 | ||
| #22 | 0.1570 | 3.99 | 10-30 | 1/4 | 3-1/4 | 1-1/4 | 1-5/64 | 1-7/16 | 52323 | |
| 4,0 mm | 0.1575 | M4,5 X 0,5 | 6,0 | 74,0 | 36,0 | 29,0 | 36,0 | 64110 | ||
| #21 | 0.1590 | 4.04 | 10-32 | 1/4 | 3-1/4 | 1-1/4 | 1-5/64 | 1-7/16 | 51586 | |
| #20 | 0.1610 | 4.09 | 13/64-24 | 1/4 | 3-1/4 | 1-1/4 | 1-5/64 | 1-7/16 | 51587 | |
| 4,1 mm | 0.1614 | 6,0 | 74,0 | 36,0 | 29,0 | 36,0 | 64111 | |||
| 4,2 mm | 0.1654 | M5 / M5 X 0,75 | 6,0 | 74,0 | 36,0 | 29,0 | 36,0 | 64112 | ||
| #19 | 0.1660 | 4.22 | 1/4 | 3-1/4 | 1-1/4 | 1-5/64 | 1-7/16 | 52324 | ||
| 4,3 mm | 0.1693 | 6,0 | 74,0 | 36,0 | 29,0 | 36,0 | 64113 | |||
| #18 | 0.1695 | 4.31 | 1/4 | 3-1/4 | 1-1/4 | 1-5/64 | 1-7/16 | 52325 | ||
| 11/64 | 0.1719 | 4.37 | 1/4 | 3-1/4 | 1-1/4 | 1-5/64 | 1-7/16 | 51588 | ||
| #17 | 0.1730 | 4.39 | 1/4 | 3-1/4 | 1-1/4 | 1-5/64 | 1-7/16 | 52326 | ||
| 4,4 mm | 0.1732 | 6,0 | 74,0 | 36,0 | 29,0 | 36,0 | 64114 | |||
| 4,5 mm | 0.1772 | M5 X 0,5 | 6,0 | 74,0 | 36,0 | 29,0 | 36,0 | 64115 | ||
| #15 | 0.1800 | 4.57 | 1/4 | 3-1/4 | 1-1/4 | 1-5/64 | 1-7/16 | 52327 | ||
| 4,6 mm | 0.1811 | 12-28 | 6,0 | 74,0 | 36,0 | 29,0 | 36,0 | 64116 | ||
| #14 | 0.1820 | 4.62 | 1/4 | 3-1/4 | 1-1/4 | 1-5/64 | 1-7/16 | 52328 | ||
| #13 | 0.1850 | 4.70 | 12-32 | 1/4 | 3-1/4 | 1-1/4 | 1-5/64 | 1-7/16 | 52329 | |
| 4,7 mm | 0.1850 | 6,0 | 74,0 | 36,0 | 29,0 | 36,0 | 64117 | |||
| 3/16 | 0.1875 | 4.76 | 1/4 | 3-1/4 | 1-3/4 | 1-37/64 | 1-7/16 | 51589 | ||
| #12 | 0.1890 | 4.80 | 7/32-32 | 1/4 | 3-1/4 | 1-3/4 | 1-37/64 | 1-7/16 | 52330 | |
| 4,8 mm | 0.1890 | 6,0 | 82,0 | 44,0 | 35,0 | 36,0 | 64118 | |||
| 4,9 mm | 0.1929 | 6,0 | 82,0 | 44,0 | 35,0 | 36,0 | 64119 | |||
| #10 | 0.1935 | 4.91 | 14-20 | 1/4 | 3-1/4 | 1-3/4 | 1-37/64 | 1-7/16 | 52331 | |
| #9 | 0.1960 | 4.98 | 1/4 | 3-1/4 | 1-3/4 | 1-37/64 | 1-7/16 | 52332 | ||
| 5,0 mm | 0.1969 | M6 X 1 | 6,0 | 82,0 | 44,0 | 35,0 | 36,0 | 64120 | ||
| #8 | 0.1990 | 5.05 | 1/4 | 3-1/4 | 1-3/4 | 1-37/64 | 1-7/16 | 52333 | ||
| 5,1 mm | 0.2008 | 6,0 | 82,0 | 44,0 | 35,0 | 36,0 | 64121 | |||
| #7 | 0.2010 | 5.11 | 1/4-20 | 1/4 | 3-1/4 | 1-3/4 | 1-37/64 | 1-7/16 | 51506 | |
| 13/64 | 0.2031 | 5.16 | 1/4 | 3-1/4 | 1-3/4 | 1-37/64 | 1-7/16 | 51507 | ||
| #6 | 0.2040 | 5.18 | 1/4 | 3 1/4 | 1 3/4 | 1 37/64 | 1 7/16 | 52334 | ||
| 5,2 mm | 0.2047 | M6 X 0,75 | 6,0 | 82,0 | 44,0 | 35,0 | 36,0 | 64122 | ||
| #5 | 0.2055 | 5.22 | 1/4 | 3-1/4 | 1-3/4 | 1-37/64 | 1-7/16 | 51590 | ||
| 5,25 mm | 0.2067 | 6,0 | 82,0 | 44,0 | 35,0 | 36,0 | 64123 | |||
| 5,3 mm | 0.2087 | 6,0 | 82,0 | 44,0 | 35,0 | 36,0 | 64124 | |||
| #4 | 0.2090 | 5.31 | 1/4-24 | 1/4 | 3-1/4 | 1-3/4 | 1-37/64 | 1-7/16 | 51508 |
