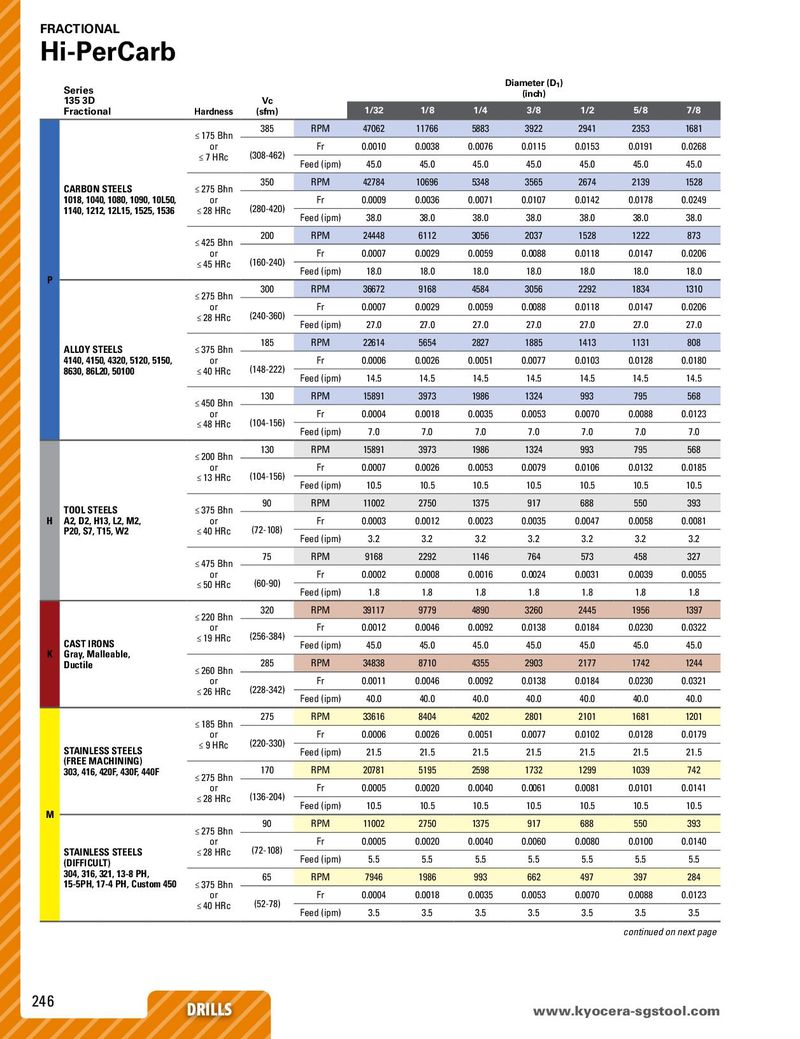

Общий каталог SGS 2018 - страница 246

Каталог SGS шестизубые фрезы T-carb

Каталог SGS микро инструмент 2021

Каталог SGS фрезы для алюминия S-carb

Каталог SGS высокопроизводительные черновые фрезы

Каталог SGS инструмент для обработки алюминия

Общий каталог SGS 2015 на русском

Series 135 3D		V					Diameter (D1 (inch)	)
Fractional	Hardness	c (sfm)		1/32	1/8	1/4	3/8	1/2	5/8	7/8
	≤ 175 Bhn	385	RPM	47062	11766	5883	3922	2941	2353	1681
	or	(308-462)	Fr	0.0010	0.0038	0.0076	0.0115	0.0153	0.0191	0.0268
	≤ 7 HRc		Feed (ipm)	45.0	45.0	45.0	45.0	45.0	45.0	45.0
CARBON STEELS	≤ 275 Bhn	350	RPM	42784	10696	5348	3565	2674	2139	1528
1018, 1040, 1080, 1090, 10L50, 1140 1212 12L1 12 136	or 2 HR	(280-420)	Fr	0.0009	0.0036	0.0071	0.0107	0.0142	0.0178	0.0249
, , 5, 55, 5	≤ 8 c		Feed (ipm)	38.0	38.0	38.0	38.0	38.0	38.0	38.0
	≤ 425 Bhn	200	RPM	24448	6112	3056	2037	1528	1222	873
	or 45 HR	(160-240)	Fr	0.0007	0.0029	0.0059	0.0088	0.0118	0.0147	0.0206
	≤ c		Feed (ipm)	18.0	18.0	18.0	18.0	18.0	18.0	18.0
P	≤ 275 Bh	300	RPM	36672	9168	4584	3056	2292	1834	1310
	n or		Fr	0.0007	0.0029	0.0059	0.0088	0.0118	0.0147	0.0206
	≤ 28 HRc	(240-360)	Feed (ipm)	27.0	27.0	27.0	27.0	27.0	27.0	27.0
ALLOY STEELS	≤ 375 Bhn	185	RPM	22614	5654	2827	1885	1413	1131	808
4140, 4150, 4320, 5120, 5150,	or	148222	Fr	0.0006	0.0026	0.0051	0.0077	0.0103	0.0128	0.0180
8630, 86L20, 50100	≤ 40 HRc	(-)	Feed (ipm)	14.5	14.5	14.5	14.5	14.5	14.5	14.5
	≤ 450 Bhn	130	RPM	15891	3973	1986	1324	993	795	568
	or		Fr	0.0004	0.0018	0.0035	0.0053	0.0070	0.0088	0.0123
	≤ 48 HRc	(104-156)	Feed (ipm)	7.0	7.0	7.0	7.0	7.0	7.0	7.0
	≤ 200 Bhn	130	RPM	15891	3973	1986	1324	993	795	568
	or		Fr	0.0007	0.0026	0.0053	0.0079	0.0106	0.0132	0.0185
	≤ 13 HRc	(104-156)	Feed (ipm)	10.5	10.5	10.5	10.5	10.5	10.5	10.5
TOOL STEELS	≤ 375 Bhn	90	RPM	11002	2750	1375	917	688	550	393
H A2, D2, H13, L2, M2,	or		Fr	0.0003	0.0012	0.0023	0.0035	0.0047	0.0058	0.0081
P20, S7, T15, W2	≤ 40 HRc	(72-108)	Feed (ipm)	3.2	3.2	3.2	3.2	3.2	3.2	3.2
	≤ 475 Bhn	75	RPM	9168	2292	1146	764	573	458	327
	or 50 HR	(60-90)	Fr	0.0002	0.0008	0.0016	0.0024	0.0031	0.0039	0.0055
	≤ c		Feed (ipm)	1.8	1.8	1.8	1.8	1.8	1.8	1.8
	≤ 220 Bhn	320	RPM	39117	9779	4890	3260	2445	1956	1397
	or	(256384)	Fr	0.0012	0.0046	0.0092	0.0138	0.0184	0.0230	0.0322
CAST IRONS	≤ 19 HRc	-	Feed (ipm)	45.0	45.0	45.0	45.0	45.0	45.0	45.0
K Gray, Malleable, Ductile	≤ 260 Bhn	285	RPM	34838	8710	4355	2903	2177	1742	1244
	or	(228342)	Fr	0.0011	0.0046	0.0092	0.0138	0.0184	0.0230	0.0321
	≤ 26 HRc	-	Feed (ipm)	40.0	40.0	40.0	40.0	40.0	40.0	40.0
	≤ 185 Bhn	275	RPM	33616	8404	4202	2801	2101	1681	1201
	or	(220330)	Fr	0.0006	0.0026	0.0051	0.0077	0.0102	0.0128	0.0179
STAINLESS STEELS FREE MACHINING	≤ 9 HRc	-	Feed (ipm)	21.5	21.5	21.5	21.5	21.5	21.5	21.5
( ) 303, 416, 420F, 430F, 440F	≤ 275 Bhn	170	RPM	20781	5195	2598	1732	1299	1039	742
	or ≤ 28 HR	(136-204)	Fr	0.0005	0.0020	0.0040	0.0061	0.0081	0.0101	0.0141
	c		Feed (ipm)	10.5	10.5	10.5	10.5	10.5	10.5	10.5
M	≤ 275 Bhn	90	RPM	11002	2750	1375	917	688	550	393
	or		Fr	0.0005	0.0020	0.0040	0.0060	0.0080	0.0100	0.0140
STAINLESS STEELS (DIFFICULT)	≤ 28 HRc	(72-108)	Feed (ipm)	5.5	5.5	5.5	5.5	5.5	5.5	5.5
304, 316, 321, 13-8 PH, 15-5PH, 17-4 PH, Custom 450	≤ 375 Bhn	65	RPM	7946	1986	993	662	497	397	284
	or		Fr	0.0004	0.0018	0.0035	0.0053	0.0070	0.0088	0.0123
	≤ 40 HRc	(52-78)	Feed (ipm)	3.5	3.5	3.5	3.5	3.5	3.5	3.5

continued on next page
