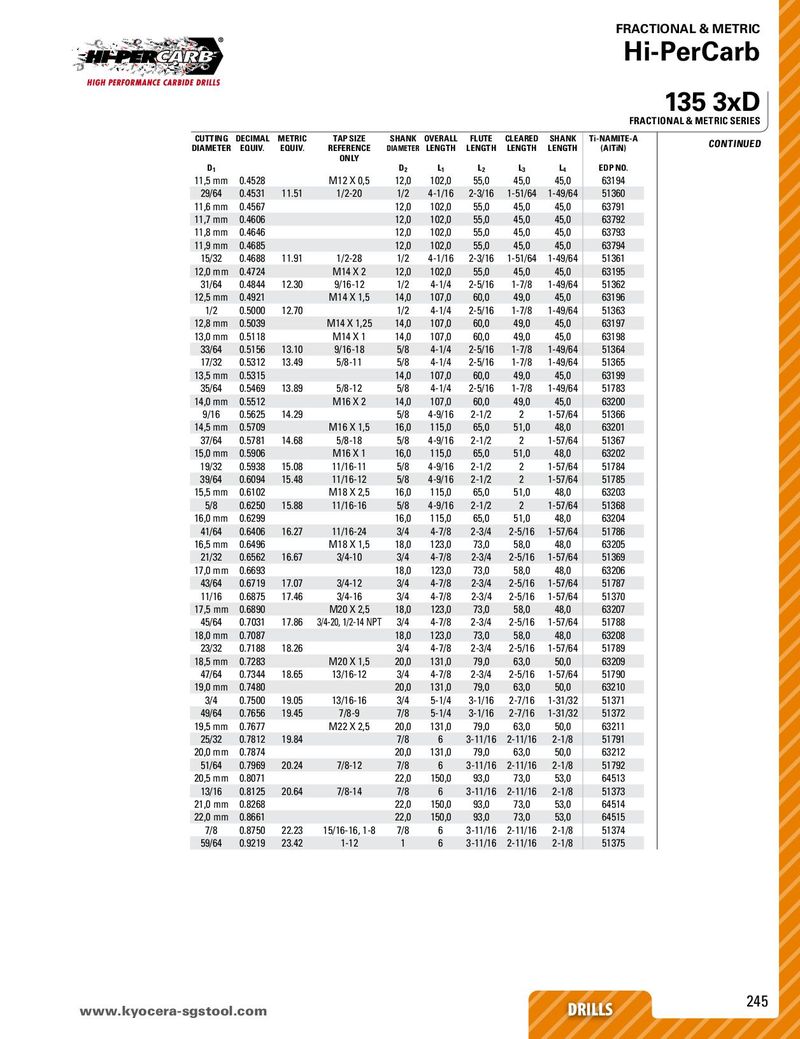

135 3xD
FRACTIONAL & METRIC SERIES
| CUTTING DIAMETER | DECIMAL EQUIV. | METRIC EQUIV. | TAP SIZE REFERENCE | SHANK DIAMETER | OVERALL LENGTH | FLUTE LENGTH | CLEARED LENGTH | SHANK LENGTH | Ti-NAMITE-A (AlTiN) | CONTINUED |
| D1 | ONLY | D2 | L1 | L2 | L3 | L4 | EDP NO. | |||
| 11,5 mm | 0.4528 | M12 X 0,5 | 12,0 | 102,0 | 55,0 | 45,0 | 45,0 | 63194 | ||
| 29/64 | 0.4531 | 11.51 | 1/2-20 | 1/2 | 4-1/16 | 2-3/16 | 1-51/64 | 1-49/64 | 51360 | |
| 11,6 mm | 0.4567 | 12,0 | 102,0 | 55,0 | 45,0 | 45,0 | 63791 | |||
| 11,7 mm | 0.4606 | 12,0 | 102,0 | 55,0 | 45,0 | 45,0 | 63792 | |||
| 11,8 mm | 0.4646 | 12,0 | 102,0 | 55,0 | 45,0 | 45,0 | 63793 | |||
| 11,9 mm | 0.4685 | 12,0 | 102,0 | 55,0 | 45,0 | 45,0 | 63794 | |||
| 15/32 | 0.4688 | 11.91 | 1/2-28 | 1/2 | 4-1/16 | 2-3/16 | 1-51/64 | 1-49/64 | 51361 | |
| 12,0 mm | 0.4724 | M14 X 2 | 12,0 | 102,0 | 55,0 | 45,0 | 45,0 | 63195 | ||
| 31/64 | 0.4844 | 12.30 | 9/16-12 | 1/2 | 4-1/4 | 2-5/16 | 1-7/8 | 1-49/64 | 51362 | |
| 12,5 mm | 0.4921 | M14 X 1,5 | 14,0 | 107,0 | 60,0 | 49,0 | 45,0 | 63196 | ||
| 1/2 | 0.5000 | 12.70 | 1/2 | 4-1/4 | 2-5/16 | 1-7/8 | 1-49/64 | 51363 | ||
| 12,8 mm | 0.5039 | M14 X 1,25 | 14,0 | 107,0 | 60,0 | 49,0 | 45,0 | 63197 | ||
| 13,0 mm | 0.5118 | M14 X 1 | 14,0 | 107,0 | 60,0 | 49,0 | 45,0 | 63198 | ||
| 33/64 | 0.5156 | 13.10 | 9/16-18 | 5/8 | 4-1/4 | 2-5/16 | 1-7/8 | 1-49/64 | 51364 | |
| 17/32 | 0.5312 | 13.49 | 5/8-11 | 5/8 | 4-1/4 | 2-5/16 | 1-7/8 | 1-49/64 | 51365 | |
| 13,5 mm | 0.5315 | 14,0 | 107,0 | 60,0 | 49,0 | 45,0 | 63199 | |||
| 35/64 | 0.5469 | 13.89 | 5/8-12 | 5/8 | 4-1/4 | 2-5/16 | 1-7/8 | 1-49/64 | 51783 | |
| 14,0 mm | 0.5512 | M16 X 2 | 14,0 | 107,0 | 60,0 | 49,0 | 45,0 | 63200 | ||
| 9/16 | 0.5625 | 14.29 | 5/8 | 4-9/16 | 2-1/2 | 2 | 1-57/64 | 51366 | ||
| 14,5 mm | 0.5709 | M16 X 1,5 | 16,0 | 115,0 | 65,0 | 51,0 | 48,0 | 63201 | ||
| 37/64 | 0.5781 | 14.68 | 5/8-18 | 5/8 | 4-9/16 | 2-1/2 | 2 | 1-57/64 | 51367 | |
| 15,0 mm | 0.5906 | M16 X 1 | 16,0 | 115,0 | 65,0 | 51,0 | 48,0 | 63202 | ||
| 19/32 | 0.5938 | 15.08 | 11/16-11 | 5/8 | 4-9/16 | 2-1/2 | 2 | 1-57/64 | 51784 | |
| 39/64 | 0.6094 | 15.48 | 11/16-12 | 5/8 | 4-9/16 | 2-1/2 | 2 | 1-57/64 | 51785 | |
| 15,5 mm | 0.6102 | M18 X 2,5 | 16,0 | 115,0 | 65,0 | 51,0 | 48,0 | 63203 | ||
| 5/8 | 0.6250 | 15.88 | 11/16-16 | 5/8 | 4-9/16 | 2-1/2 | 2 | 1-57/64 | 51368 | |
| 16,0 mm | 0.6299 | 16,0 | 115,0 | 65,0 | 51,0 | 48,0 | 63204 | |||
| 41/64 | 0.6406 | 16.27 | 11/16-24 | 3/4 | 4-7/8 | 2-3/4 | 2-5/16 | 1-57/64 | 51786 | |
| 16,5 mm | 0.6496 | M18 X 1,5 | 18,0 | 123,0 | 73,0 | 58,0 | 48,0 | 63205 | ||
| 21/32 | 0.6562 | 16.67 | 3/4-10 | 3/4 | 4-7/8 | 2-3/4 | 2-5/16 | 1-57/64 | 51369 | |
| 17,0 mm | 0.6693 | 18,0 | 123,0 | 73,0 | 58,0 | 48,0 | 63206 | |||
| 43/64 | 0.6719 | 17.07 | 3/4-12 | 3/4 | 4-7/8 | 2-3/4 | 2-5/16 | 1-57/64 | 51787 | |
| 11/16 | 0.6875 | 17.46 | 3/4-16 | 3/4 | 4-7/8 | 2-3/4 | 2-5/16 | 1-57/64 | 51370 | |
| 17,5 mm | 0.6890 | M20 X 2,5 | 18,0 | 123,0 | 73,0 | 58,0 | 48,0 | 63207 | ||
| 45/64 | 0.7031 | 17.86 | 3/4-20, 1/2-14 NPT | 3/4 | 4-7/8 | 2-3/4 | 2-5/16 | 1-57/64 | 51788 | |
| 18,0 mm | 0.7087 | 18,0 | 123,0 | 73,0 | 58,0 | 48,0 | 63208 | |||
| 23/32 | 0.7188 | 18.26 | 3/4 | 4-7/8 | 2-3/4 | 2-5/16 | 1-57/64 | 51789 | ||
| 18,5 mm | 0.7283 | M20 X 1,5 | 20,0 | 131,0 | 79,0 | 63,0 | 50,0 | 63209 | ||
| 47/64 | 0.7344 | 18.65 | 13/16-12 | 3/4 | 4-7/8 | 2-3/4 | 2-5/16 | 1-57/64 | 51790 | |
| 19,0 mm | 0.7480 | 20,0 | 131,0 | 79,0 | 63,0 | 50,0 | 63210 | |||
| 3/4 | 0.7500 | 19.05 | 13/16-16 | 3/4 | 5-1/4 | 3-1/16 | 2-7/16 | 1-31/32 | 51371 | |
| 49/64 | 0.7656 | 19.45 | 7/8-9 | 7/8 | 5-1/4 | 3-1/16 | 2-7/16 | 1-31/32 | 51372 | |
| 19,5 mm | 0.7677 | M22 X 2,5 | 20,0 | 131,0 | 79,0 | 63,0 | 50,0 | 63211 | ||
| 25/32 | 0.7812 | 19.84 | 7/8 | 6 | 3-11/16 | 2-11/16 | 2-1/8 | 51791 | ||
| 20,0 mm | 0.7874 | 20,0 | 131,0 | 79,0 | 63,0 | 50,0 | 63212 | |||
| 51/64 | 0.7969 | 20.24 | 7/8-12 | 7/8 | 6 | 3-11/16 | 2-11/16 | 2-1/8 | 51792 | |
| 20,5 mm | 0.8071 | 22,0 | 150,0 | 93,0 | 73,0 | 53,0 | 64513 | |||
| 13/16 | 0.8125 | 20.64 | 7/8-14 | 7/8 | 6 | 3-11/16 | 2-11/16 | 2-1/8 | 51373 | |
| 21,0 mm | 0.8268 | 22,0 | 150,0 | 93,0 | 73,0 | 53,0 | 64514 | |||
| 22,0 mm | 0.8661 | 22,0 | 150,0 | 93,0 | 73,0 | 53,0 | 64515 | |||
| 7/8 | 0.8750 | 22.23 | 15/16-16 1-8 | 7/8 | 6 | 3-11/16 | 2-11/16 | 2-1/8 | 51374 | |
| 59/64 | 0.9219 | 23.42 | , 1-12 | 1 | 6 | 3-11/16 | 2-11/16 | 2-1/8 | 51375 |
