POS
4

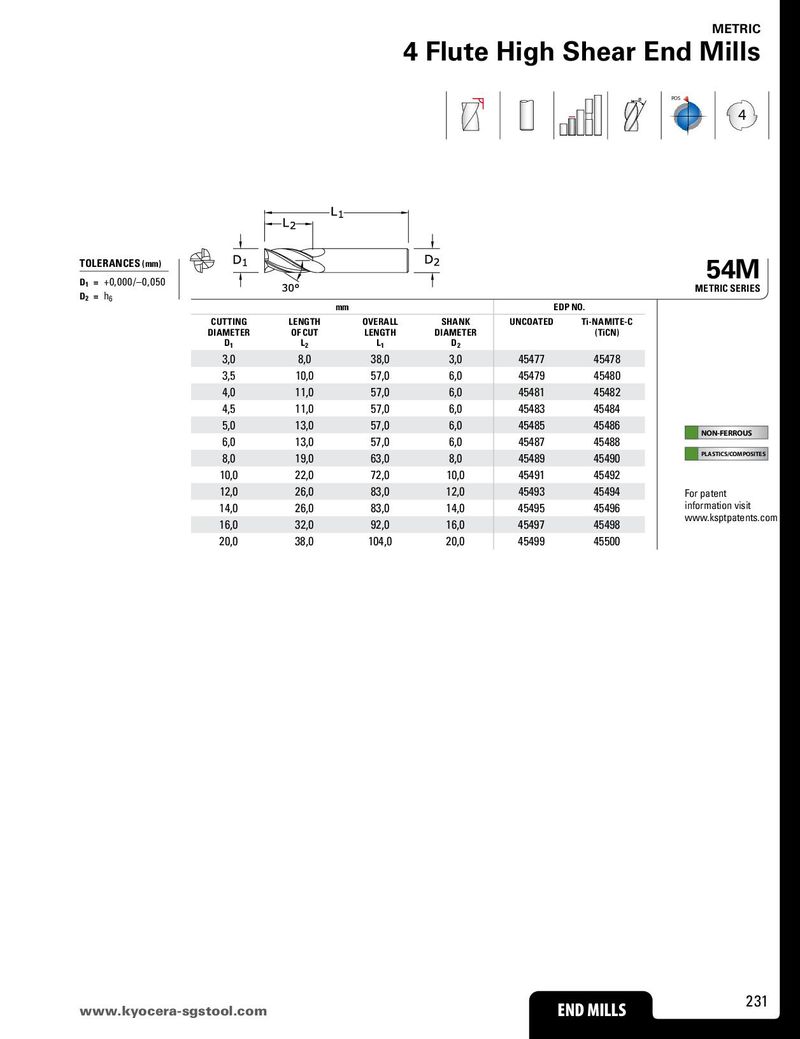

TOLERANCES (mm) 54M
| D1 = +0,000/–0,050 D2 =h6 | METRIC SERIES | ||||||
| m | m | EDP | NO. | ||||
| CUTTING DIAMETER D1 | LENGTH OF CUT L2 | OVERALL LENGTH L1 | SHANK DIAMETER D2 | UNCOATED | Ti-NAMITE-C (TiCN) | ||
| 3,0 | 8,0 | 38,0 | 3,0 | 45477 | 45478 | ||
| 3,5 | 10,0 | 57,0 | 6,0 | 45479 | 45480 | ||
| 4,0 | 11,0 | 57,0 | 6,0 | 45481 | 45482 | ||
| 4,5 | 11,0 | 57,0 | 6,0 | 45483 | 45484 | ||
| 5,0 | 13,0 | 57,0 | 6,0 | 45485 | 45486 | NON-FERROUS | |
| 6,0 | 13,0 | 57,0 | 6,0 | 45487 | 45488 | ||
| 8,0 | 19,0 | 63,0 | 8,0 | 45489 | 45490 | PLASTICS/COMPOSITES | |
| 10,0 | 22,0 | 72,0 | 10,0 | 45491 | 45492 | ||
| 12,0 | 26,0 | 83,0 | 12,0 | 45493 | 45494 | For patent | |
| 14,0 | 26,0 | 83,0 | 14,0 | 45495 | 45496 | information visit | |
| 16,0 | 32,0 | 92,0 | 16,0 | 45497 | 45498 | www.ksptpatents.c | |
| 20,0 | 38,0 | 104,0 | 20,0 | 45499 | 45500 |
