POS
2

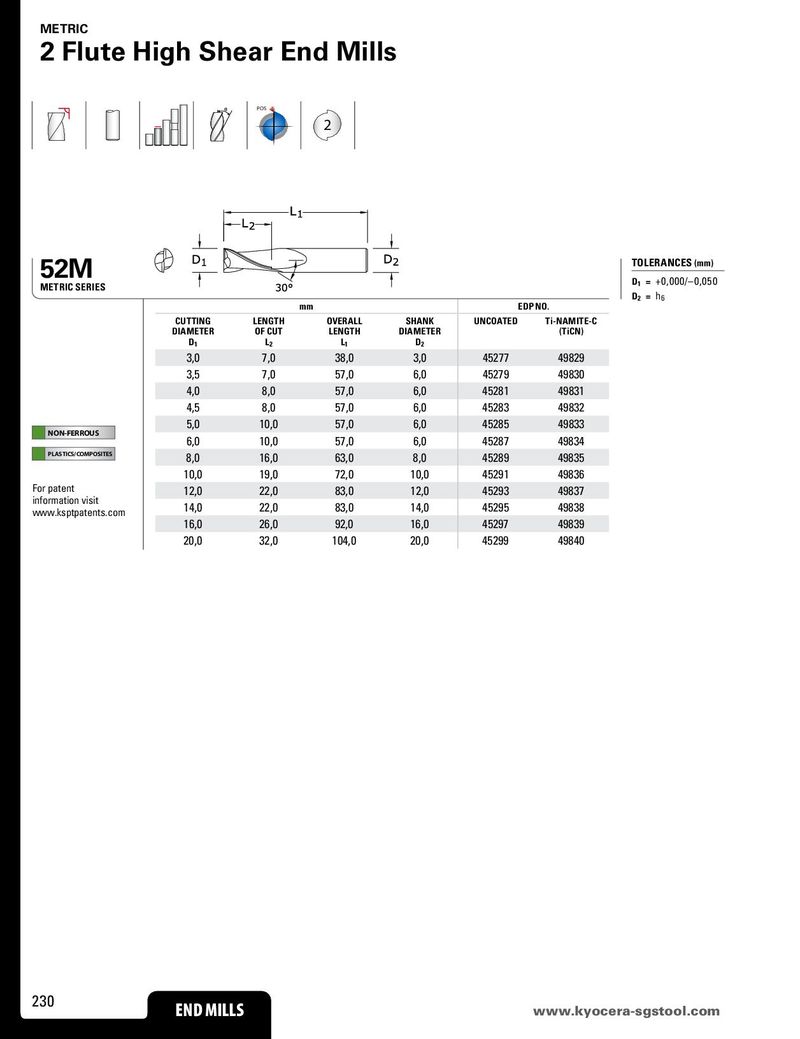

| 52M METRIC SERIES | ||||||
| mm | ED | P NO. | ||||
| CUTTING DIAMETER D1 | LENGTH OF CUT L2 | OVERALL LENGTH L1 | SHANK DIAMETER D2 | UNCOATED | Ti-NAMITE-C (TiCN) | |
| 3,0 | 7,0 | 38,0 | 3,0 | 45277 | 49829 | |
| 3,5 | 7,0 | 57,0 | 6,0 | 45279 | 49830 | |
| 4,0 | 8,0 | 57,0 | 6,0 | 45281 | 49831 | |
| 4,5 | 8,0 | 57,0 | 6,0 | 45283 | 49832 | |
| NON-FERROUS | 5,0 | 10,0 | 57,0 | 6,0 | 45285 | 49833 |
| 6,0 | 10,0 | 57,0 | 6,0 | 45287 | 49834 | |
| PLASTICS/COMPOSITES | 8,0 | 16,0 | 63,0 | 8,0 | 45289 | 49835 |
| 10,0 | 19,0 | 72,0 | 10,0 | 45291 | 49836 | |
| For patent | 12,0 | 22,0 | 83,0 | 12,0 | 45293 | 49837 |
| information visit www.ksptpatents.com | 14,0 | 22,0 | 83,0 | 14,0 | 45295 | 49838 |
| 16,0 | 26,0 | 92,0 | 16,0 | 45297 | 49839 | |
| 20,0 | 32,0 | 104,0 | 20,0 | 45299 | 49840 |
D = +0,000/–0,050 D = h6 2
