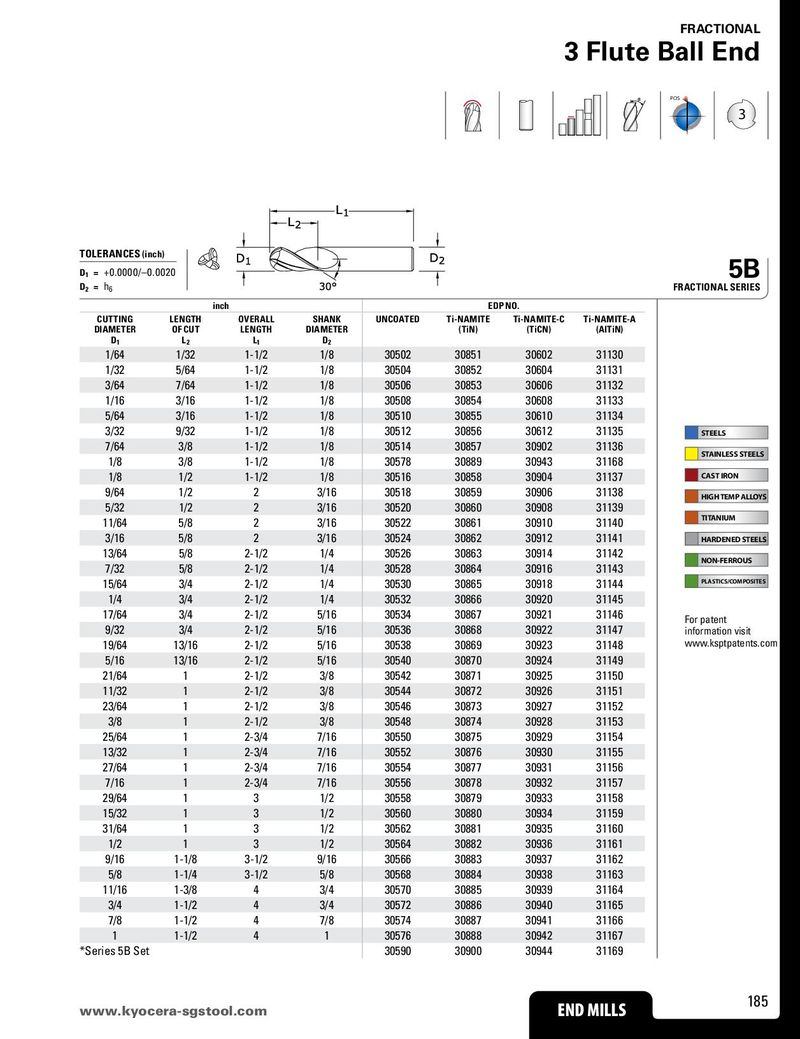

POS
3
| TOLERANCES(inc | h) | |||||||
| D1 = +0.0000/–0. | 0020 | 5B | ||||||
| D2 =h6 | FRACTIONAL SERIES | |||||||
| inch | ED | P NO. | ||||||
| CUTTING DIAMETER D1 | LENGTH OF CUT L2 | OVERALL LENGTH L1 | SHANK DIAMETER D2 | UNCOATED | Ti-NAMITE (TiN) | Ti-NAMITE-C (TiCN) | Ti-NAMITE-A (AlTiN) | |
| 1/64 | 1/32 | 1-1/2 | 1/8 | 30502 | 30851 | 30602 | 31130 | |
| 1/32 | 5/64 | 1-1/2 | 1/8 | 30504 | 30852 | 30604 | 31131 | |
| 3/64 | 7/64 | 1-1/2 | 1/8 | 30506 | 30853 | 30606 | 31132 | |
| 1/16 | 3/16 | 1-1/2 | 1/8 | 30508 | 30854 | 30608 | 31133 | |
| 5/64 | 3/16 | 1-1/2 | 1/8 | 30510 | 30855 | 30610 | 31134 | |
| 3/32 | 9/32 | 1-1/2 | 1/8 | 30512 | 30856 | 30612 | 31135 | STEELS |
| 7/64 | 3/8 | 1-1/2 | 1/8 | 30514 | 30857 | 30902 | 31136 | |
| 1/8 | 3/8 | 1-1/2 | 1/8 | 30578 | 30889 | 30943 | 31168 | STAINLESS STEELS |
| 1/8 | 1/2 | 1-1/2 | 1/8 | 30516 | 30858 | 30904 | 31137 | CAST IRON |
| 9/64 | 1/2 | 2 | 3/16 | 30518 | 30859 | 30906 | 31138 | HIGH TEMP ALLOYS |
| 5/32 | 1/2 | 2 | 3/16 | 30520 | 30860 | 30908 | 31139 | |
| 11/64 | 5/8 | 2 | 3/16 | 30522 | 30861 | 30910 | 31140 | TITANIUM |
| 3/16 | 5/8 | 2 | 3/16 | 30524 | 30862 | 30912 | 31141 | HARDENED STEELS |
| 13/64 | 5/8 | 2-1/2 | 1/4 | 30526 | 30863 | 30914 | 31142 | |
| 7/32 | 5/8 | 2-1/2 | 1/4 | 30528 | 30864 | 30916 | 31143 | NON-FERROUS |
| 15/64 | 3/4 | 2-1/2 | 1/4 | 30530 | 30865 | 30918 | 31144 | PLASTICS/COMPOSITES |
| 1/4 | 3/4 | 2-1/2 | 1/4 | 30532 | 30866 | 30920 | 31145 | |
| 17/64 | 3/4 | 2-1/2 | 5/16 | 30534 | 30867 | 30921 | 31146 | For patent |
| 9/32 | 3/4 | 2-1/2 | 5/16 | 30536 | 30868 | 30922 | 31147 | information visit |
| 19/64 | 13/16 | 2-1/2 | 5/16 | 30538 | 30869 | 30923 | 31148 | www.ksptpatents.c |
| 5/16 | 13/16 | 2-1/2 | 5/16 | 30540 | 30870 | 30924 | 31149 | |
| 21/64 | 1 | 2-1/2 | 3/8 | 30542 | 30871 | 30925 | 31150 | |
| 11/32 | 1 | 2-1/2 | 3/8 | 30544 | 30872 | 30926 | 31151 | |
| 23/64 | 1 | 2-1/2 | 3/8 | 30546 | 30873 | 30927 | 31152 | |
| 3/8 | 1 | 2-1/2 | 3/8 | 30548 | 30874 | 30928 | 31153 | |
| 25/64 | 1 | 2-3/4 | 7/16 | 30550 | 30875 | 30929 | 31154 | |
| 13/32 | 1 | 2-3/4 | 7/16 | 30552 | 30876 | 30930 | 31155 | |
| 27/64 | 1 | 2-3/4 | 7/16 | 30554 | 30877 | 30931 | 31156 | |
| 7/16 | 1 | 2-3/4 | 7/16 | 30556 | 30878 | 30932 | 31157 | |
| 29/64 | 1 | 3 | 1/2 | 30558 | 30879 | 30933 | 31158 | |
| 15/32 | 1 | 3 | 1/2 | 30560 | 30880 | 30934 | 31159 | |
| 31/64 | 1 | 3 | 1/2 | 30562 | 30881 | 30935 | 31160 | |
| 1/2 | 1 | 3 | 1/2 | 30564 | 30882 | 30936 | 31161 | |
| 9/16 | 1-1/8 | 3-1/2 | 9/16 | 30566 | 30883 | 30937 | 31162 | |
| 5/8 | 1-1/4 | 3-1/2 | 5/8 | 30568 | 30884 | 30938 | 31163 | |
| 11/16 | 1-3/8 | 4 | 3/4 | 30570 | 30885 | 30939 | 31164 | |
| 3/4 | 1-1/2 | 4 | 3/4 | 30572 | 30886 | 30940 | 31165 | |
| 7/8 | 1-1/2 | 4 | 7/8 | 30574 | 30887 | 30941 | 31166 | |
| 1 | 1-1/2 | 4 | 1 | 30576 | 30888 | 30942 | 31167 | |
| Series 5B Set | 30590 | 30900 | 30944 | 31169 |
