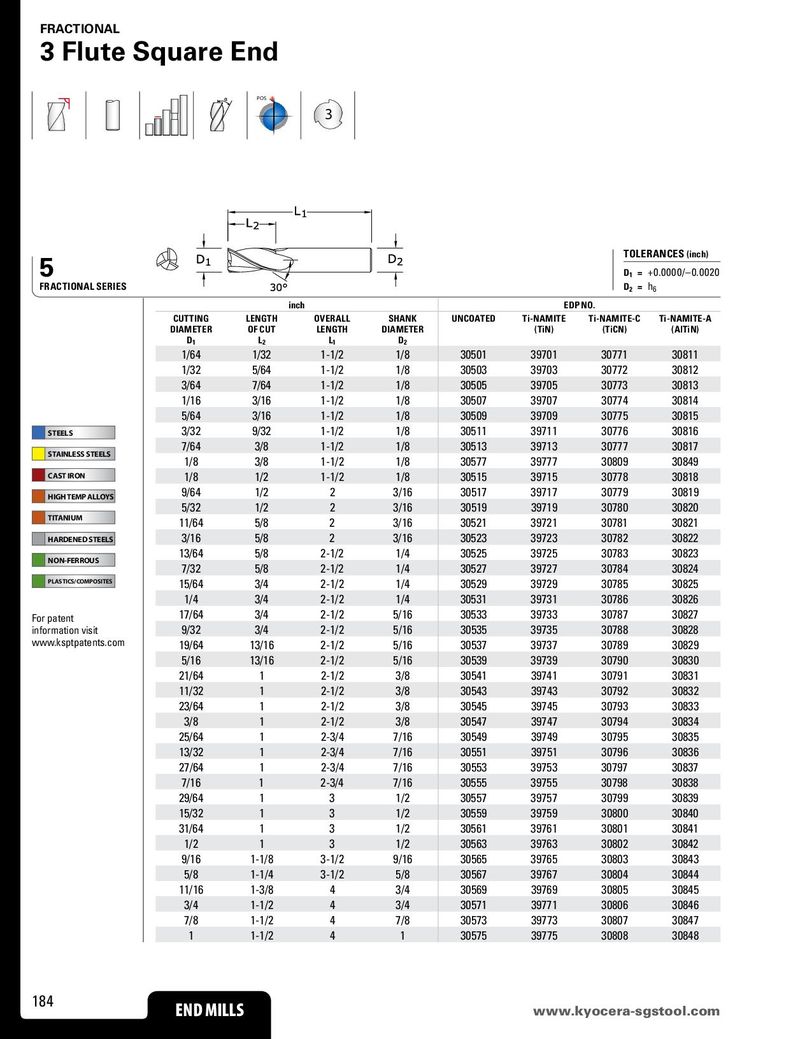

Общий каталог SGS 2018 - страница 184
Навигация
Каталог SGS шестизубые фрезы T-carb
Каталог SGS микро инструмент 2021
Каталог SGS фрезы для алюминия S-carb
Каталог SGS высокопроизводительные черновые фрезы
Каталог SGS инструмент для обработки алюминия
Общий каталог SGS 2015 на русском
POS
3
| TOLE | RANCES(inch) | |||||||
| D1 = | +0.0000/–0.0020 | |||||||
| ACTIONAL SERIES | D2 = | h6 | ||||||
| inc | h | ED | P NO. | |||||
| CUTTING DIAMETER D1 | LENGTH OF CUT L2 | OVERALL LENGTH L1 | SHANK DIAMETER D2 | UNCOATED | Ti-NAMITE (TiN) | Ti-NAMITE-C (TiCN) | Ti-NAMITE-A (AlTiN) | |
| 1/64 | 1/32 | 1-1/2 | 1/8 | 30501 | 39701 | 30771 | 30811 | |
| 1/32 | 5/64 | 1-1/2 | 1/8 | 30503 | 39703 | 30772 | 30812 | |
| 3/64 | 7/64 | 1-1/2 | 1/8 | 30505 | 39705 | 30773 | 30813 | |
| 1/16 | 3/16 | 1-1/2 | 1/8 | 30507 | 39707 | 30774 | 30814 | |
| 5/64 | 3/16 | 1-1/2 | 1/8 | 30509 | 39709 | 30775 | 30815 | |
| STEELS | 3/32 | 9/32 | 1-1/2 | 1/8 | 30511 | 39711 | 30776 | 30816 |
| STAINLESS STEELS | 7/64 | 3/8 | 1-1/2 | 1/8 | 30513 | 39713 | 30777 | 30817 |
| 1/8 | 3/8 | 1-1/2 | 1/8 | 30577 | 39777 | 30809 | 30849 | |
| CAST IRON | 1/8 | 1/2 | 1-1/2 | 1/8 | 30515 | 39715 | 30778 | 30818 |
| HIGH TEMP ALLOYS | 9/64 | 1/2 | 2 | 3/16 | 30517 | 39717 | 30779 | 30819 |
| 5/32 | 1/2 | 2 | 3/16 | 30519 | 39719 | 30780 | 30820 | |
| TITANIUM | 11/64 | 5/8 | 2 | 3/16 | 30521 | 39721 | 30781 | 30821 |
| HARDENED STEELS | 3/16 | 5/8 | 2 | 3/16 | 30523 | 39723 | 30782 | 30822 |
| 13/64 | 5/8 | 2-1/2 | 1/4 | 30525 | 39725 | 30783 | 30823 | |
| NON-FERROUS | 7/32 | 5/8 | 2-1/2 | 1/4 | 30527 | 39727 | 30784 | 30824 |
| PLASTICS/COMPOSITES | 15/64 | 3/4 | 2-1/2 | 1/4 | 30529 | 39729 | 30785 | 30825 |
| 1/4 | 3/4 | 2-1/2 | 1/4 | 30531 | 39731 | 30786 | 30826 | |
| patent | 17/64 | 3/4 | 2-1/2 | 5/16 | 30533 | 39733 | 30787 | 30827 |
| rmation visit | 9/32 | 3/4 | 2-1/2 | 5/16 | 30535 | 39735 | 30788 | 30828 |
| w.ksptpatents.com | 19/64 | 13/16 | 2-1/2 | 5/16 | 30537 | 39737 | 30789 | 30829 |
| 5/16 | 13/16 | 2-1/2 | 5/16 | 30539 | 39739 | 30790 | 30830 | |
| 21/64 | 1 | 2-1/2 | 3/8 | 30541 | 39741 | 30791 | 30831 | |
| 11/32 | 1 | 2-1/2 | 3/8 | 30543 | 39743 | 30792 | 30832 | |
| 23/64 | 1 | 2-1/2 | 3/8 | 30545 | 39745 | 30793 | 30833 | |
| 3/8 | 1 | 2-1/2 | 3/8 | 30547 | 39747 | 30794 | 30834 | |
| 25/64 | 1 | 2-3/4 | 7/16 | 30549 | 39749 | 30795 | 30835 | |
| 13/32 | 1 | 2-3/4 | 7/16 | 30551 | 39751 | 30796 | 30836 | |
| 27/64 | 1 | 2-3/4 | 7/16 | 30553 | 39753 | 30797 | 30837 | |
| 7/16 | 1 | 2-3/4 | 7/16 | 30555 | 39755 | 30798 | 30838 | |
| 29/64 | 1 | 3 | 1/2 | 30557 | 39757 | 30799 | 30839 | |
| 15/32 | 1 | 3 | 1/2 | 30559 | 39759 | 30800 | 30840 | |
| 31/64 | 1 | 3 | 1/2 | 30561 | 39761 | 30801 | 30841 | |
| 1/2 | 1 | 3 | 1/2 | 30563 | 39763 | 30802 | 30842 | |
| 9/16 | 1-1/8 | 3-1/2 | 9/16 | 30565 | 39765 | 30803 | 30843 | |
| 5/8 | 1-1/4 | 3-1/2 | 5/8 | 30567 | 39767 | 30804 | 30844 | |
| 11/16 | 1-3/8 | 4 | 3/4 | 30569 | 39769 | 30805 | 30845 | |
| 3/4 | 1-1/2 | 4 | 3/4 | 30571 | 39771 | 30806 | 30846 | |
| 7/8 | 1-1/2 | 4 | 7/8 | 30573 | 39773 | 30807 | 30847 | |
| 1 | 1-1/2 | 4 | 1 | 30575 | 39775 | 30808 | 30848 |
