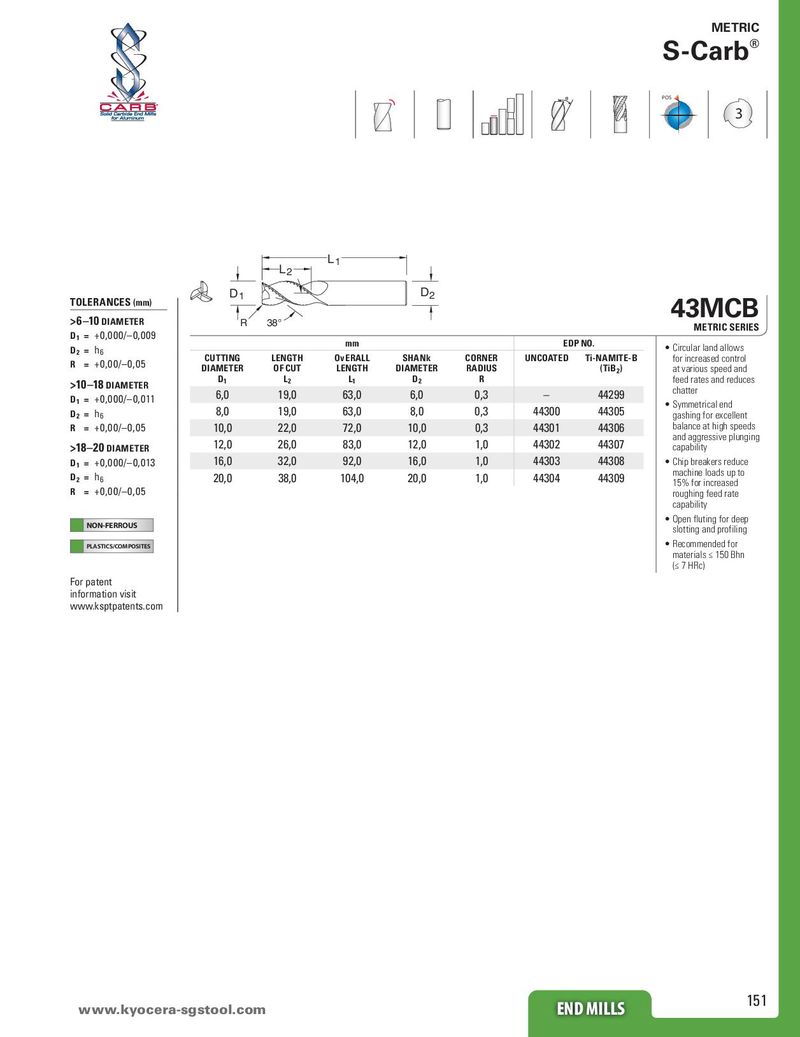

Общий каталог SGS 2018 - страница 151

METRIC
S-Carb®
POS
®
3


L1
L2
D1 D2
TOLERANCES (mm)
>6–10 DIAMETER R 38°
43MCBMETRIC Series
D1 = +0,000/–0,009
mm EDP No. • Circular land allows
D2 = h6
Cutting Length Ov erall Shank Corner Uncoated Ti-NAMITE-B for increased control
R = +0,00/–0,05 Diameter of Cut Length Diameter Radius (TiB2) at various speed and
D1 l2 L1 D2 R feed rates and reduces
>10–18 DIAMETER chatter
D1 = +0,000/–0,011 6,0 19,0 63,0 6,0 0,3 – 44299
• Symmetrical end
D2 = h6 8,0 19,0 63,0 8,0 0,3 44300 44305 gashing for excellent
R = +0,00/–0,05 10,0 22,0 72,0 10,0 0,3 44301 44306 balance at high speeds
and aggressive plunging
>18–20 DIAMETER 12,0 26,0 83,0 12,0 1,0 44302 44307 capability
D1 = +0,000/–0,013 16,0 32,0 92,0 16,0 1,0 44303 44308 • Chip breakers reduce
D2 = h6
machine loads up to
20,0 38,0 104,0 20,0 1,0 44304 44309 15% for increased
R = +0,00/–0,05 roughing feed rate
capability
• Open fluting for deep
NON-FERROUS
slotting and profiling
PLASTICS/COMPOSITES • Recommended for
materials ≤ 150 Bhn
(≤ 7 HRc)
For patent
information visit
www.ksptpatents.com


151
END MILLS
