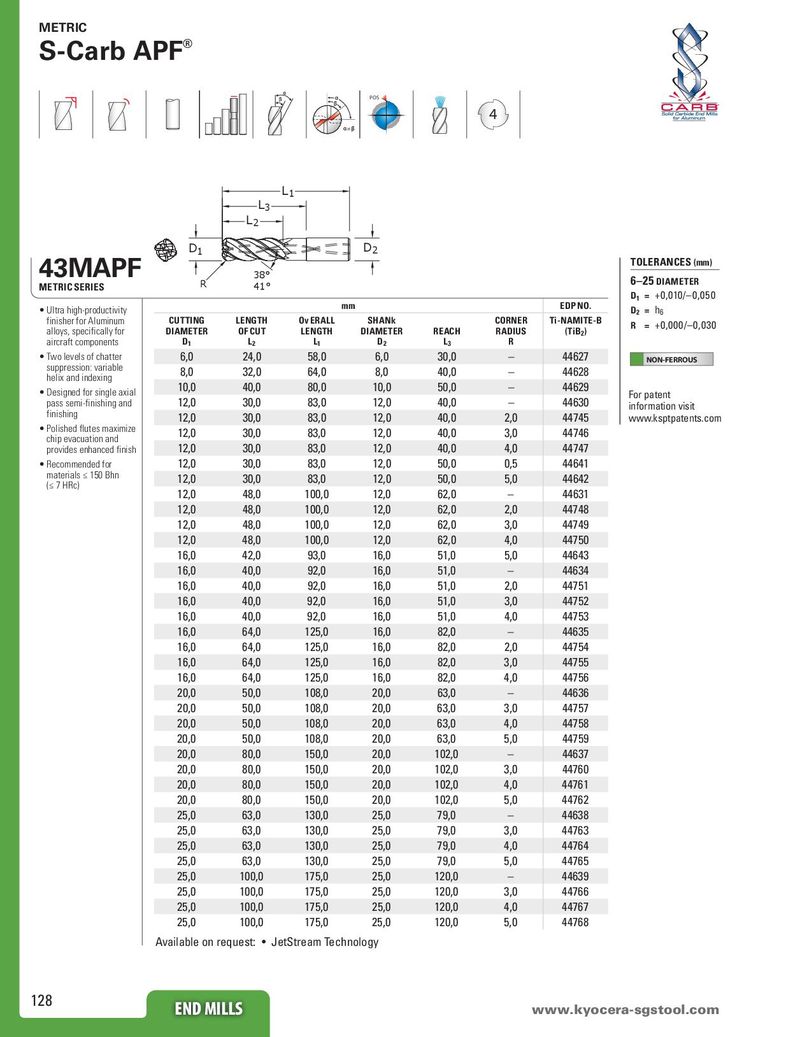

POS 4 ®

L1
43MAPF METRIC SERIES1 D RL2 L3 38° 41°2 D
• Ultra high-productivitymmEDP NO.
finisher for Aluminum alloys, specifically for aircraft componentsCUTTING DIAMETER D1LENGTH OF CUT L2OvERALL LENGTH L1SHANk DIAMETER D2REACH L3CORNER RADIUS RTi-NAMITE-B (TiB2)
• Two levels of chatter6,024,058,06,030,0–44627
suppression: variable helix and indexin8,032,064,08,040,0–44628
g • Designed for single axial10,040,080,010,050,0–44629
pass semi-finishing and12,030,083,012,040,0–44630
finishing12,030,083,012,040,02,044745
• Polished flutes maximize chip evacuation and12,030,083,012,040,03,044746
provides enhanced finish12,030,083,012,040,04,044747
• Recommended for12,030,083,012,050,00,544641
materials ≤ 150 Bhn (≤ 7 HRc)12,030,083,012,050,05,044642
12,048,0100,012,062,0–44631
12,048,0100,012,062,02,044748
12,048,0100,012,062,03,044749
12,048,0100,012,062,04,044750
16,042,093,016,051,05,044643
16,040,092,016,051,0–44634
16,040,092,016,051,02,044751
16,040,092,016,051,03,044752
16,040,092,016,051,04,044753
16,064,0125,016,082,0–44635
16,064,0125,016,082,02,044754
16,064,0125,016,082,03,044755
16,064,0125,016,082,04,044756
20,050,0108,020,063,0–44636
20,050,0108,020,063,03,044757
20,050,0108,020,063,04,044758
20,050,0108,020,063,05,044759
20,080,0150,020,0102,0–44637
20,080,0150,020,0102,03,044760
20,080,0150,020,0102,04,044761
20,080,0150,020,0102,05,044762
25,063,0130,025,079,0–44638
25,063,0130,025,079,03,044763
25,063,0130,025,079,04,044764
25,063,0130,025,079,05,044765
25,0100,0175,025,0120,0–44639
25,0100,0175,025,0120,03,044766
25,0100,0175,025,0120,04,044767
25,0100,0175,025,0120,05,044768

TOLERANCES (mm) D = +0,010/–0,050 1 2 6
