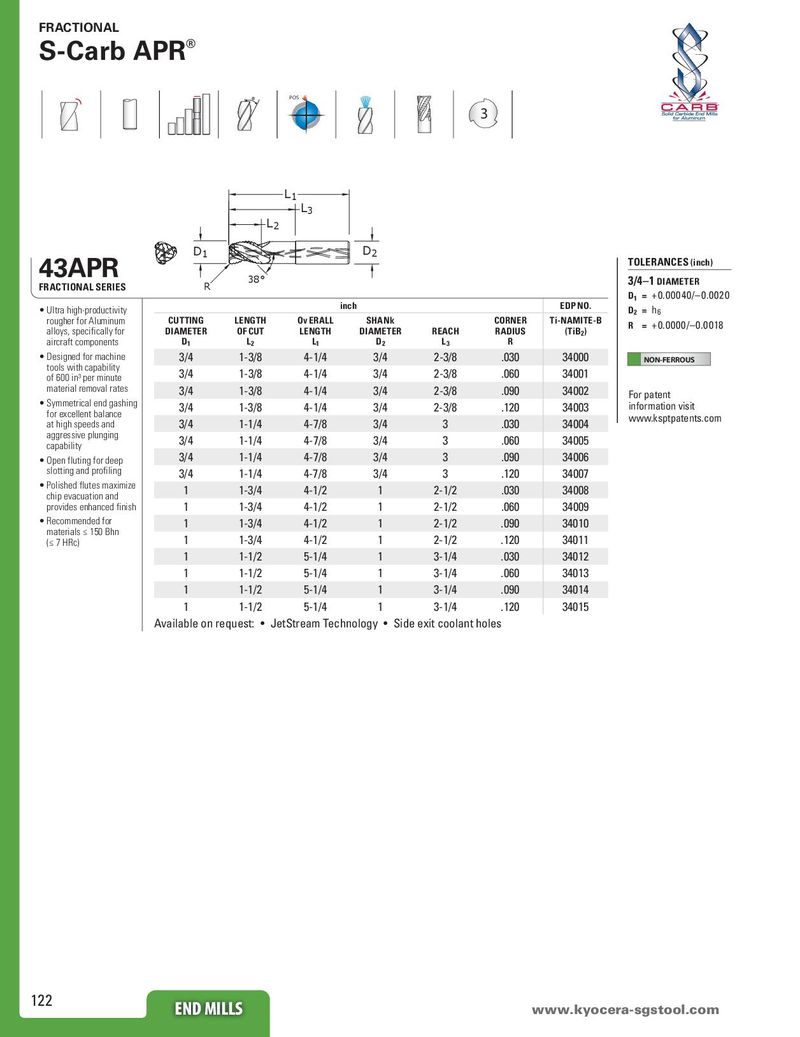

POS 3 ®
| L L2 | 1 L3 | |||||
| 1 D | 2 D | |||||
| R | 38° | |||||
| inc | h | EDP NO. | ||||
| CUTTING DIAMETER D1 | LENGTH OF CUT L2 | OvERALL LENGTH L1 | SHANk DIAMETER D2 | REACH L3 | CORNER RADIUS R | Ti-NAMITE-B (TiB2) |
| 3/4 | 1-3/8 | 4-1/4 | 3/4 | 2-3/8 | .030 | 34000 |
| 3/4 | 1-3/8 | 4-1/4 | 3/4 | 2-3/8 | .060 | 34001 |
| 3/4 | 1-3/8 | 4-1/4 | 3/4 | 2-3/8 | .090 | 34002 |
| 3/4 | 1-3/8 | 4-1/4 | 3/4 | 2-3/8 | .120 | 34003 |
| 3/4 | 1-1/4 | 4-7/8 | 3/4 | 3 | .030 | 34004 |
| 3/4 | 1-1/4 | 4-7/8 | 3/4 | 3 | .060 | 34005 |
| 3/4 | 1-1/4 | 4-7/8 | 3/4 | 3 | .090 | 34006 |
| 3/4 | 1-1/4 | 4-7/8 | 3/4 | 3 | .120 | 34007 |
| 1 | 1-3/4 | 4-1/2 | 1 | 2-1/2 | .030 | 34008 |
| 1 | 1-3/4 | 4-1/2 | 1 | 2-1/2 | .060 | 34009 |
| 1 | 1-3/4 | 4-1/2 | 1 | 2-1/2 | .090 | 34010 |
| 1 | 1-3/4 | 4-1/2 | 1 | 2-1/2 | .120 | 34011 |
| 1 | 1-1/2 | 5-1/4 | 1 | 3-1/4 | .030 | 34012 |
| 1 | 1-1/2 | 5-1/4 | 1 | 3-1/4 | .060 | 34013 |
| 1 | 1-1/2 | 5-1/4 | 1 | 3-1/4 | .090 | 34014 |
| 1 | 1-1/2 | 5-1/4 | 1 | 3-1/4 | .120 | 34015 |
TOLERANCES (inch) D = +0.00040/–0.0020 1 2 6
capability
chip evacuation and
materials ≤ 150 Bhn
