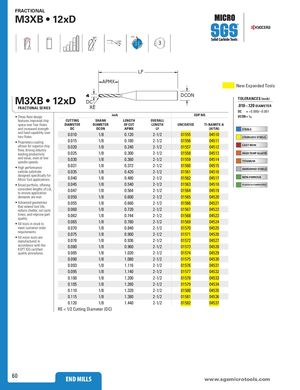

M3XB 12xD
30° POS 15° 3
| M3XB • 1 FRACTIONAL SERIES | 2xD | DC APMX RE | LF | DCON | TOLERANCES(inch) .010–.120DIAMETER DC =+0.000/–0.001 New Expanded Too | ||
| i | h | ED | NO | ||||
| • Three flute design | n | . | DCON =h6 | ||||
| features improved chip space over four flutes | CUTTING DIAMETER | SHANK DIAMETER | LENGTH OF CUT | OVERALL LENGTH | UNCOATED | TI-NAMITE-A | |
| and increased strength | DC | DCON | APMX | LF | (AlTiN) | STEELS | |
| and feed capability over two flutes. | 0.010 | 1/8 | 0.120 | 2-1/2 | 01555 | 04510 | STAINLESS STEELS |
| • Proprietary coating | 0.015 | 1/8 | 0.180 | 2-1/2 | 01556 | 04511 | |
| allows for superior chip | 0.020 | 1/8 | 0.240 | 2-1/2 | 01557 | 04512 | CAST IRON |
| flow, driving industry leading productivity | 0.025 | 1/8 | 0.300 | 2-1/2 | 01558 | 04513 | HIGH TEMP ALLOYS |
| and value, even at low spindle speeds. | 0.030 | 1/8 | 0.360 | 2-1/2 | 01559 | 04514 | TITANIUM |
| • High performance | 0.031 | 1/8 | 0.372 | 2-1/2 | 01560 | 04515 | HARDENED STEELS |
| carbide substrate | 0.035 | 1/8 | 0.420 | 2-1/2 | 01561 | 04516 | |
| designed specifically for Micro Tool applications. | 0.040 | 1/8 | 0.480 | 2-1/2 | 01562 | 04517 | NON-FERROUS |
| • Broad portfolio, offering | 0.045 | 1/8 | 0.540 | 2-1/2 | 01563 | 04518 | PLASTICS/COMPOSITES |
| consistent lengths of cut, to ensure application | 0.047 | 1/8 | 0.564 | 2-1/2 | 01564 | 04519 | |
| demands are met. | 0.050 | 1/8 | 0.600 | 2-1/2 | 01565 | 04520 | |
| • Advanced geometries | 0.055 | 1/8 | 0.660 | 2-1/2 | 01566 | 04521 | |
| that extend tool life, reduce chatter, cut cycle | 0.060 | 1/8 | 0.720 | 2-1/2 | 01567 | 04522 | |
| times, and improve part lit | 0.062 | 1/8 | 0.744 | 2-1/2 | 01568 | 04523 | |
| quay. • All tools in stock to | 0.065 | 1/8 | 0.780 | 2-1/2 | 01569 | 04524 | |
| meet customer order | 0.070 | 1/8 | 0.840 | 2-1/2 | 01570 | 04525 | |
| requirements. | 0.075 | 1/8 | 0.900 | 2-1/2 | 01571 | 04526 | |
| • All micro tools are manufactured in | 0.078 | 1/8 | 0.936 | 2-1/2 | 01572 | 04527 | |
| accordance with the KSPT ISO certified | 0.080 | 1/8 | 0.960 | 2-1/2 | 01573 | 04528 | |
| quality procedures. | 0.085 | 1/8 | 1.020 | 2-1/2 | 01574 | 04529 | |
| 0.090 | 1/8 | 1.080 | 2-1/2 | 01575 | 04530 | ||
| 0.093 | 1/8 | 1.116 | 2-1/2 | 01576 | 04531 | ||
| 0.095 | 1/8 | 1.140 | 2-1/2 | 01577 | 04532 | ||
| 0.100 | 1/8 | 1.200 | 2-1/2 | 01578 | 04533 | ||
| 0.105 | 1/8 | 1.260 | 2-1/2 | 01579 | 04534 | ||
| 0.110 | 1/8 | 1.320 | 2-1/2 | 01580 | 04535 | ||
| 0.115 | 1/8 | 1.380 | 2-1/2 | 01581 | 04536 | ||
| 0.120 | 1/8 | 1.440 | 2-1/2 | 01582 | 04537 |
RE = 1/2 Cutting Diameter (DC)
