M3LB 5xD
30° POS 15° 3

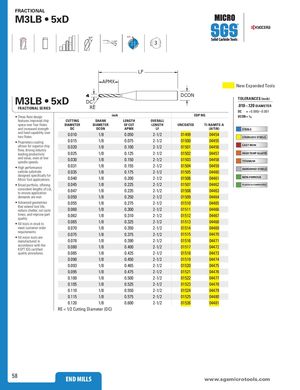

| M3LB • 5 FRACTIONAL SERIES | xD | DC APMX RE | LF | DCON | TOLERANCES(inch) .010–.120DIAMETER DC =+0.000/–0.001 New Expanded Tools | ||
| • Three flute design | in | ch | ED | P NO. | DCON =h6 | ||
| features improved chip space over four flutes and increased strength | CUTTING DIAMETER DC | SHANK DIAMETER DCON | LENGTH OF CUT APMX | OVERALL LENGTH LF | UNCOATED | TI-NAMITE-A (AlTiN) | STEELS |
| and feed capability over two flutes. | 0.010 | 1/8 | 0.050 | 2-1/2 | 01499 | 04454 | STAINLESS STEELS |
| • Proprietary coating | 0.015 | 1/8 | 0.075 | 2-1/2 | 01500 | 04455 | |
| allows for superior chip | 0.020 | 1/8 | 0.100 | 2-1/2 | 01501 | 04456 | CAST IRON |
| flow, driving industry leading productivity | 0.025 | 1/8 | 0.125 | 2-1/2 | 01502 | 04457 | HIGH TEMP ALLOYS |
| and value, even at low spindle speeds | 0.030 | 1/8 | 0.150 | 2-1/2 | 01503 | 04458 | TITANIUM |
| . • High performance | 0.031 | 1/8 | 0.155 | 2-1/2 | 01504 | 04459 | |
| carbide substrate | 0.035 | 1/8 | 0.175 | 2-1/2 | 01505 | 04460 | HARDENED STEELS |
| designed specifically for Micro Tool applications. | 0.040 | 1/8 | 0.200 | 2-1/2 | 01506 | 04461 | NON-FERROUS |
| • Broad portfolio, offering | 0.045 | 1/8 | 0.225 | 2-1/2 | 01507 | 04462 | PLASTICS/COMPOSITES |
| consistent lengths of cut, to ensure application | 0.047 | 1/8 | 0.235 | 2-1/2 | 01508 | 04463 | |
| demands are met. | 0.050 | 1/8 | 0.250 | 2-1/2 | 01509 | 04464 | |
| • Advanced geometries h l lif | 0.055 | 1/8 | 0.275 | 2-1/2 | 01510 | 04465 | |
| tat extend too e, reduce chatter, cut cycle | 0.060 | 1/8 | 0.300 | 2-1/2 | 01511 | 04466 | |
| times, and improve part ualit | 0.062 | 1/8 | 0.310 | 2-1/2 | 01512 | 04467 | |
| qy. • All tools in stock to | 0.065 | 1/8 | 0.325 | 2-1/2 | 01513 | 04468 | |
| meet customer order | 0.070 | 1/8 | 0.350 | 2-1/2 | 01514 | 04469 | |
| requirements. • All i l | 0.075 | 1/8 | 0.375 | 2-1/2 | 01515 | 04470 | |
| mcro toos are manufactured in | 0.078 | 1/8 | 0.390 | 2-1/2 | 01516 | 04471 | |
| accordance with the KSPT ISO certified | 0.080 | 1/8 | 0.400 | 2-1/2 | 01517 | 04472 | |
| quality procedures. | 0.085 | 1/8 | 0.425 | 2-1/2 | 01518 | 04473 | |
| 0.090 | 1/8 | 0.450 | 2-1/2 | 01519 | 04474 | ||
| 0.093 | 1/8 | 0.465 | 2-1/2 | 01520 | 04475 | ||
| 0.095 | 1/8 | 0.475 | 2-1/2 | 01521 | 04476 | ||
| 0.100 | 1/8 | 0.500 | 2-1/2 | 01522 | 04477 | ||
| 0.105 | 1/8 | 0.525 | 2-1/2 | 01523 | 04478 | ||
| 0.110 | 1/8 | 0.550 | 2-1/2 | 01524 | 04479 | ||
| 0.115 | 1/8 | 0.575 | 2-1/2 | 01525 | 04480 | ||
| 0.120 | 1/8 | 0.600 | 2-1/2 | 01526 | 04481 |
RE = 1/2 Cutting Diameter (DC)
