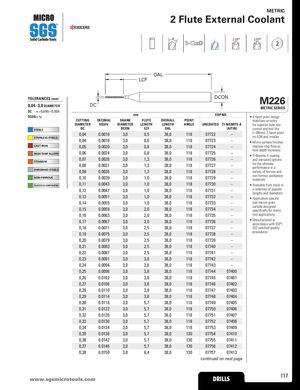

118° 130° 2
| O LCF | AL | |||||||
| TOLERANCES(mm) | D | CON | ||||||
| 0,04–3,0DIAMETER | D | C | ||||||
| DC =+0,000/–0,008 DCON =h6 | m | m | ED | P NO. | ||||
| STEELS | CUTTING DIAMETER DC | DECIMAL EQUIV. | SHANK DIAMETER DCON | FLUTE LENGTH LCF | OVERALL LENGTH OAL | POINT ANGLE | UNCOATED | TI-NAMITE-A (AlTiN) |
| 0,04 | 0.0016 | 3,0 | 0,5 | 38,0 | 118 | 07722 | – | |
| STAINLESS STEELS | 0,04 | 0.0018 | 3,0 | 0,6 | 38,0 | 118 | 07723 | – |
| CAST IRON | 0,05 | 0.0020 | 3,0 | 0,8 | 38,0 | 118 | 07724 | – |
| HIGH TEMP ALLOYS | 0,06 | 0.0024 | 3,0 | 0,8 | 38,0 | 118 | 07725 | – |
| TITANIUM | 0,07 | 0.0028 | 3,0 | 1,3 | 38,0 | 118 | 07726 | – |
| 0,08 | 0.0031 | 3,0 | 1,3 | 38,0 | 118 | 07727 | – | |
| HARDENED STEELS | 0,09 | 0.0035 | 3,0 | 1,3 | 38,0 | 118 | 07728 | – |
| NON-FERROUS | 0,10 | 0.0039 | 3,0 | 1,0 | 38,0 | 118 | 07729 | – |
| PLASTICS/COMPOSITES | 0,11 | 0.0043 | 3,0 | 1,0 | 38,0 | 118 | 07730 | – |
| 0,12 | 0.0047 | 3,0 | 1,0 | 38,0 | 118 | 07731 | – | |
| 0,13 | 0.0051 | 3,0 | 1,0 | 38,0 | 118 | 07732 | – | |
| 0,14 | 0.0055 | 3,0 | 1,0 | 38,0 | 118 | 07733 | – | |
| 0,15 | 0.0059 | 3,0 | 2,0 | 38,0 | 118 | 07734 | – | |
| 0,16 | 0.0063 | 3,0 | 2,0 | 38,0 | 118 | 07735 | – | |
| 0,17 | 0.0067 | 3,0 | 2,0 | 38,0 | 118 | 07736 | – | |
| 0,18 | 0.0071 | 3,0 | 2,5 | 38,0 | 118 | 07737 | – | |
| 0,19 | 0.0075 | 3,0 | 2,5 | 38,0 | 118 | 07738 | – | |
| 0,20 | 0.0079 | 3,0 | 2,5 | 38,0 | 118 | 07739 | – | |
| 0,21 | 0.0083 | 3,0 | 2,5 | 38,0 | 118 | 07740 | – | |
| 0,22 | 0.0087 | 3,0 | 2,5 | 38,0 | 118 | 07741 | – | |
| 0,23 | 0.0091 | 3,0 | 3,8 | 38,0 | 118 | 07742 | – | |
| 0,24 | 0.0094 | 3,0 | 3,8 | 38,0 | 118 | 07743 | – | |
| 0,25 | 0.0098 | 3,0 | 3,8 | 38,0 | 118 | 07744 | 07400 | |
| 0,26 | 0.0102 | 3,0 | 3,8 | 38,0 | 118 | 07745 | 07401 | |
| 0,27 | 0.0106 | 3,0 | 3,8 | 38,0 | 118 | 07746 | 07402 | |
| 0,28 | 0.0110 | 3,0 | 3,8 | 38,0 | 118 | 07747 | 07403 | |
| 0,29 | 0.0114 | 3,0 | 3,8 | 38,0 | 118 | 07748 | 07404 | |
| 0,30 | 0.0118 | 3,0 | 5,7 | 38,0 | 118 | 07749 | 07405 | |
| 0,31 | 0.0122 | 3,0 | 5,7 | 38,0 | 118 | 07750 | 07406 | |
| 0,32 | 0.0126 | 3,0 | 5,7 | 38,0 | 118 | 07751 | 07407 | |
| 0,33 | 0.0130 | 3,0 | 5,7 | 38,0 | 118 | 07752 | 07408 | |
| 0,34 | 0.0134 | 3,0 | 5,7 | 38,0 | 118 | 07753 | 07409 | |
| 0,35 | 0.0138 | 3,0 | 5,7 | 38,0 | 130 | 07754 | 07410 | |
| 0,36 | 0.0142 | 3,0 | 5,7 | 38,0 | 130 | 07755 | 07411 | |
| 0,37 | 0.0146 | 3,0 | 5,7 | 38,0 | 130 | 07756 | 07412 | |
| 0,38 | 0.0150 | 3,0 | 6,4 | 38,0 | 130 | 07757 | 07413 |
METRIC SERIES
on 0,08 and smaller.
- Mirror surface finishes
performance in a
lengths and diameters
- Application specific specifically for micro-
accordance with KSPT
