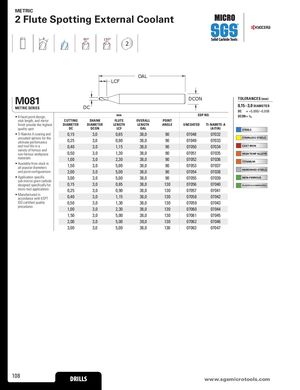

Каталог SGS микро инструмент 2021 - страница 108

METRIC 2 Flute Spotting External Coolant 90° 130° 2 OAL LCF M081 DC DCON TOLERANCES (mm) 0,15–3,0 DIAMETER METRIC SERIES DC = +0,000/–0,008 mm EDP NO. DCON = h 6 • 4-facet point design, stub length, and mirror CUTTING SHANK FLUTE OVERALL POINT finish provide the highest DIAMETER DIAMETER LENGTH LENGTH ANGLE UNCOATED TI-NAMITE-A quality spot DC DCON LCF OAL (AlTiN) STEELS • Ti-Namite A coating and 0,15 3,0 0,65 38,0 90 07048 07032 uncoated options for the STAINLESS STEELS ultimate performance 0,25 3,0 0,90 38,0 90 07049 07033 and tool life in a 0,40 3,0 1,15 38,0 90 07050 07034 CAST IRON variety of ferrous and non-ferrous workpiece 0,50 3,0 1,30 38,0 90 07051 07035 HIGH TEMP ALLOYS materials 1,00 3,0 2,30 38,0 90 07052 07036 TITANIUM • Available from stock in all popular diameters 1,50 3,0 5,00 38,0 90 07053 07037 HARDENED STEELS and point configurations 2,00 3,0 5,00 38,0 90 07054 07038 • Application specific 3,00 3,0 5,00 38,0 90 07055 07039 NON-FERROUS sub-micron grain carbide designed specifically for 0,15 3,0 0,65 38,0 130 07056 07040 PLASTICS/COMPOSITES micro-tool applications 0,25 3,0 0,90 38,0 130 07057 07041 • Manufactured in accordance with KSPT 0,40 3,0 1,15 38,0 130 07058 07042 ISO certified quality 0,50 3,0 1,30 38,0 130 07059 07043 procedures 1,00 3,0 2,30 38,0 130 07060 07044 1,50 3,0 5,00 38,0 130 07061 07045 2,00 3,0 5,00 38,0 130 07062 07046 3,00 3,0 5,00 38,0 130 07063 07047 108 DRILLS DRILLS www.sgsmicrotools.com
