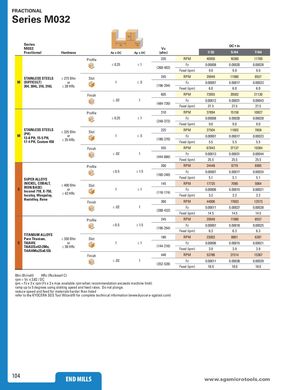

| Series M032 | Ae | Ap Ae | Vc | DC • in | |||||
| Fractional | Hardness | Ae x DC | Ap x DC | (sfm) | 1/32 | 5/64 | 7/64 | ||
| Profile | 335 | RPM | 40950 | 16380 | 11700 | ||||
| ≤ 0.25 | ≤ 1 | (268-402) | Fz | 0.00008 | 0.00020 | 0.00028 | |||
| Feed (ipm) | 9.9 | 9.9 | 9.9 | ||||||
| STAINLESS STEELS | ≤ 275 Bhn | Slot | 245 | RPM | 29949 | 11980 | 8557 | ||
| M (DIFFICULT) | or | 1 | ≤ .5 | Fz | 0.00007 | 0.00017 | 0.00023 | ||
| 304, 304L, 316, 316L | ≤ 28 HRc | (196-294) | Feed (ipm) | 6.0 | 6.0 | 6.0 | |||
| Finish | 605 | RPM | 73955 | 29582 | 21130 | ||||
| ≤ .02 | 1 | (484726) | Fz | 0.00012 | 0.00031 | 0.00043 | |||
| - | Feed (ipm) | 27.5 | 27.5 | 27.5 | |||||
| Profile | 310 | RPM | 37894 | 15158 | 10827 | ||||
| ≤ 0.25 | ≤ 1 | (248-372) | Fz | 0.00008 | 0.00020 | 0.00028 | |||
| Feed (ipm) | 9.0 | 9.0 | 9.0 | ||||||
| STAINLESS STEELS | ≤ 325 Bhn | Slot | 225 | RPM | 27504 | 11002 | 7858 | ||
| M (PH) 13-8 PH, 15-5 PH, | or | 1 | ≤ .5 | (180270) | Fz | 0.00007 | 0.00017 | 0.00023 | |
| 17-4 PH, Custom 450 | ≤ 35 HRc | - | Feed (ipm) | 5.5 | 5.5 | 5.5 | |||
| Finish | 555 | RPM | 67843 | 27137 | 19384 | ||||
| ≤ .02 | 1 | Fz | 0.00013 | 0.00031 | 0.00044 | ||||
| (444-666) | Feed (ipm) | 25.5 | 25.5 | 25.5 | |||||
| Profile | 200 | RPM | 24448 | 9779 | 6985 | ||||
| ≤ 0.5 | ≤ 1.5 | 160240 | Fz | 0.00007 | 0.00017 | 0.00024 | |||
| SUPER ALLOYS | (-) | Feed (ipm) | 5.1 | 5.1 | 5.1 | ||||
| (NICKEL, COBALT, | ≤ 400 Bhn | Slot | 145 | RPM | 17725 | 7090 | 5064 | ||
| S IRON BASE) Inconel 718, X-750, | or | 1 | ≤ 1 | (116174) | Fz | 0.00006 | 0.00015 | 0.00021 | |
| Incoloy, Waspaloy, | ≤ 43 HRc | - | Feed (ipm) | 3.2 | 3.2 | 3.2 | |||
| Hastelloy, Rene | Finish | 360 | RPM | 44006 | 17603 | 12573 | |||
| ≤ .02 | 1 | 288432 | Fz | 0.00011 | 0.00027 | 0.00038 | |||
| (-) | Feed (ipm) | 14.5 | 14.5 | 14.5 | |||||
| Profile | 245 | RPM | 29949 | 11980 | 8557 | ||||
| ≤ 0.5 | ≤ 1.5 | Fz | 0.00007 | 0.00018 | 0.00025 | ||||
| (196-294) | Feed (ipm) | 6.3 | 6.3 | 6.3 | |||||
| TITANIUM ALLOYS Pure Titanium, | ≤ 350 Bhn | Slot | 180 | RPM | 22003 | 8801 | 6287 | ||
| S Ti6Al4V, | or | 1 | ≤ 1 | Fz | 0.00006 | 0.00015 | 0.00021 | ||
| Ti6Al2Sn4Zr2Mo, Ti4Al4Mo2Sn0.5Si | ≤ 38 HRc | (144-216) | Feed (ipm) | 3.9 | 3.9 | 3.9 | |||
| Finish | 440 | RPM | 53786 | 21514 | 15367 | ||||
| ≤ .02 | 1 | Fz | 0.00011 | 0.00028 | 0.00039 | ||||
| (352-528) | Feed (ipm) | 18.0 | 18.0 | 18.0 |
Bhn (Brinell) HRc (Rockwell C) rpm = Vc x 3.82 / DC ipm = Fz x 3 x rpm (Fz x 3 x max available rpm when recommendation exceeds machine limit) ramp up to 5 degrees using slotting speed and feed rates. Do not plunge. reduce speed and feed for materials harder than listed refer to the KYOCERA SGS Tool Wizard® for complete technical information (www.kyocera-sgstool.com)
