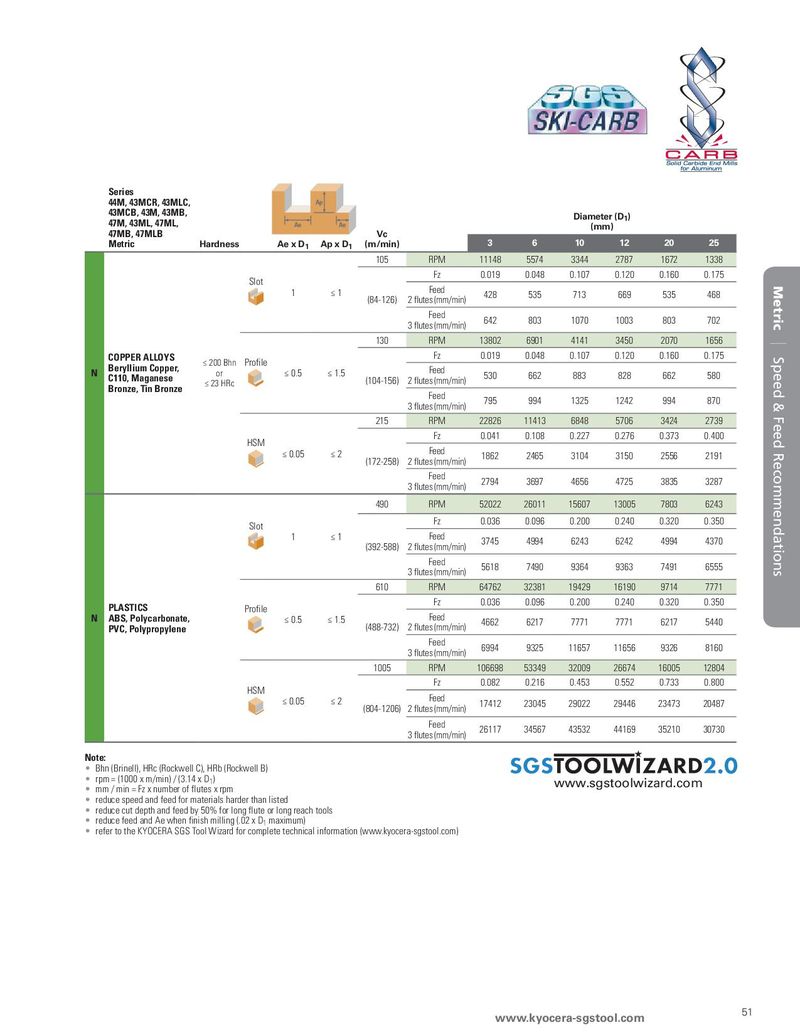

Каталог SGS инструмент для обработки алюминия

Series 44M, 43MCR, 43MLC, 43MCB, 43M, 43MB, 47M, 43ML, 47ML, 47MB, 47MLB			Ae	Ap Ae	Vc				Diame (m	ter (D1) m)
Metric	Hardness		Ae x D1	Ap x D1	(m/min)		3	6	10	12	20	25
					105	RPM	11148	5574	3344	2787	1672	1338
		Slot				Fz	0.019	0.048	0.107	0.120	0.160	0.175
			1	≤ 1	(84-126)	Feed 2 flutes (mm/min)	428	535	713	669	535	468
						Feed 3 flutes (mm/min)	642	803	1070	1003	803	702
					130	RPM	13802	6901	4141	3450	2070	1656
COPPER ALLOYS	≤ 200 Bhn	Profile				Fz	0.019	0.048	0.107	0.120	0.160	0.175
N Beryllium Copper, C110, Maganese Bronze Tin Bronze	or ≤ 23 HRc		≤ 0.5	≤ 1.5	(104-156)	Feed 2 flutes (mm/min)	530	662	883	828	662	580
,						Feed 3 flutes (mm/min)	795	994	1325	1242	994	870
					215	RPM	22826	11413	6848	5706	3424	2739
		HSM				Fz	0.041	0.108	0.227	0.276	0.373	0.400
			≤ 0.05	≤ 2	(172-258)	Feed 2 flutes (mm/min)	1862	2465	3104	3150	2556	2191
						Feed 3 flutes (mm/min)	2794	3697	4656	4725	3835	3287
					490	RPM	52022	26011	15607	13005	7803	6243
		Slot				Fz	0.036	0.096	0.200	0.240	0.320	0.350
			1	≤ 1	(392-588)	Feed 2 flutes (mm/min)	3745	4994	6243	6242	4994	4370
						Feed 3 flutes (mm/min)	5618	7490	9364	9363	7491	6555
					610	RPM	64762	32381	19429	16190	9714	7771
PLASTICS		Profile				Fz	0.036	0.096	0.200	0.240	0.320	0.350
N ABS, Polycarbonate, PVC, Polypropylene			≤ 0.5	≤ 1.5	(488-732)	Feed 2 flutes (mm/min)	4662	6217	7771	7771	6217	5440
						Feed 3 flutes (mm/min)	6994	9325	11657	11656	9326	8160
					1005	RPM	106698	53349	32009	26674	16005	12804
		HSM				Fz	0.082	0.216	0.453	0.552	0.733	0.800
			≤ 0.05	≤ 2	(804-1206)	Feed 2 flutes (mm/min)	17412	23045	29022	29446	23473	20487
						Feed 3 flutes (mm/min)	26117	34567	43532	44169	35210	30730

Note:

Bhn (Brinell), HRc (Rockwell C), HRb (Rockwell B)
rpm = (1000 x m/min) / (3.14 x D1) www.sgstoolwizard.com
mm / min = Fz x number of flutes x rpm
reduce speed and feed for materials harder than listed
reduce cut depth and feed by 50% for long flute or long reach tools
reduce feed and Ae when finish milling (.02 x D1 maximum)
refer to the KYOCERA SGS Tool Wizard for complete technical information (www.kyocera-sgstool.com)

Каталог SGS инструмент для обработки алюминия - страница 51
