L2 D D 1 2 38° R
TOLERANCES (inch)
| DIAMETER | D1 | D2 | |
| 3/4 - 1 | –0.00040/–0.00200 | h6 |
CORNER RADIUS TOLERANCE (inch) R= +/– 0.0018

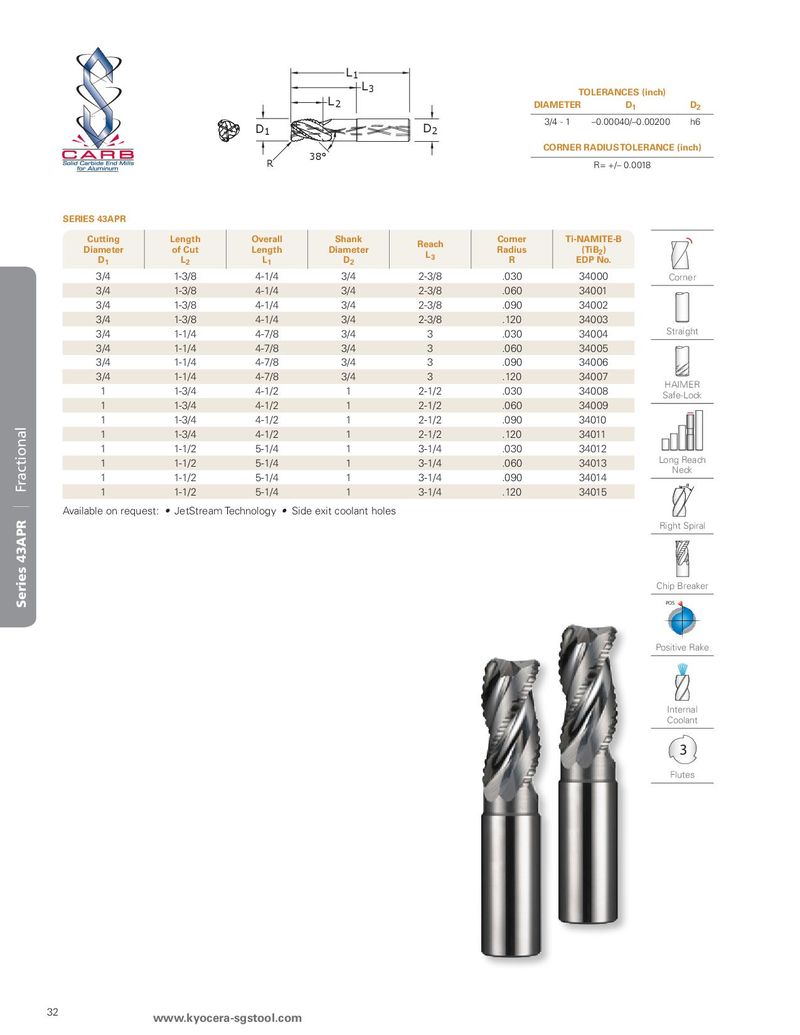

SERIES 43APR
| Cutting Diameter | Length of Cut | Overall Length | Shank Diameter | Reach | Corner Radius | Ti-NAMITE-B (TiB) | |
| D1 | L2 | L1 | D2 | L3 | R | 2 EDP No. | |
| 3/4 | 1-3/8 | 4-1/4 | 3/4 | 2-3/8 | .030 | 34000 | Corner |
| 3/4 | 1-3/8 | 4-1/4 | 3/4 | 2-3/8 | .060 | 34001 | |
| 3/4 | 1-3/8 | 4-1/4 | 3/4 | 2-3/8 | .090 | 34002 | |
| 3/4 | 1-3/8 | 4-1/4 | 3/4 | 2-3/8 | .120 | 34003 | |
| 3/4 | 1-1/4 | 4-7/8 | 3/4 | 3 | .030 | 34004 | Straight |
| 3/4 | 1-1/4 | 4-7/8 | 3/4 | 3 | .060 | 34005 | |
| 3/4 | 1-1/4 | 4-7/8 | 3/4 | 3 | .090 | 34006 | |
| 3/4 | 1-1/4 | 4-7/8 | 3/4 | 3 | .120 | 34007 | |
| 1 | 1-3/4 | 4-1/2 | 1 | 2-1/2 | .030 | 34008 | HAIMER Safe-Lock |
| 1 | 1-3/4 | 4-1/2 | 1 | 2-1/2 | .060 | 34009 | |
| 1 | 1-3/4 | 4-1/2 | 1 | 2-1/2 | .090 | 34010 | |
| 1 | 1-3/4 | 4-1/2 | 1 | 2-1/2 | .120 | 34011 | |
| 1 | 1-1/2 | 5-1/4 | 1 | 3-1/4 | .030 | 34012 | |
| 1 | 1-1/2 | 5-1/4 | 1 | 3-1/4 | .060 | 34013 | Long Reach |
| 1 | 1-1/2 | 5-1/4 | 1 | 3-1/4 | .090 | 34014 | Neck |
| 1 | 1-1/2 | 5-1/4 | 1 | 3-1/4 | .120 | 34015 | |
| able on request: | •JetStream | Technology•Sid | e exit coolant holes | Right Spiral | |||
| Chip Breaker | |||||||
| POS Positive Rake | |||||||
| Internal Coolant | |||||||
| 3 Flutes |
