| T DIAMETER | OLERANCES (inch) D1 | D2 | ||
| 1/4 - 3/8 | +0.00000 / –0.00035 | h6 | L | L1 |
| 1/2 - 5/8 | +0.00000 / –0.00043 | h6 | L2 3 | |
| 3/4 - 1 CORNER | +0.00000 / –0.00051 RADIUS TOLERANCE ( | h6 inch) | 1 D | 2 D |
| R | = +0.0000 / –0.0020 | R 38° |
L1 L2

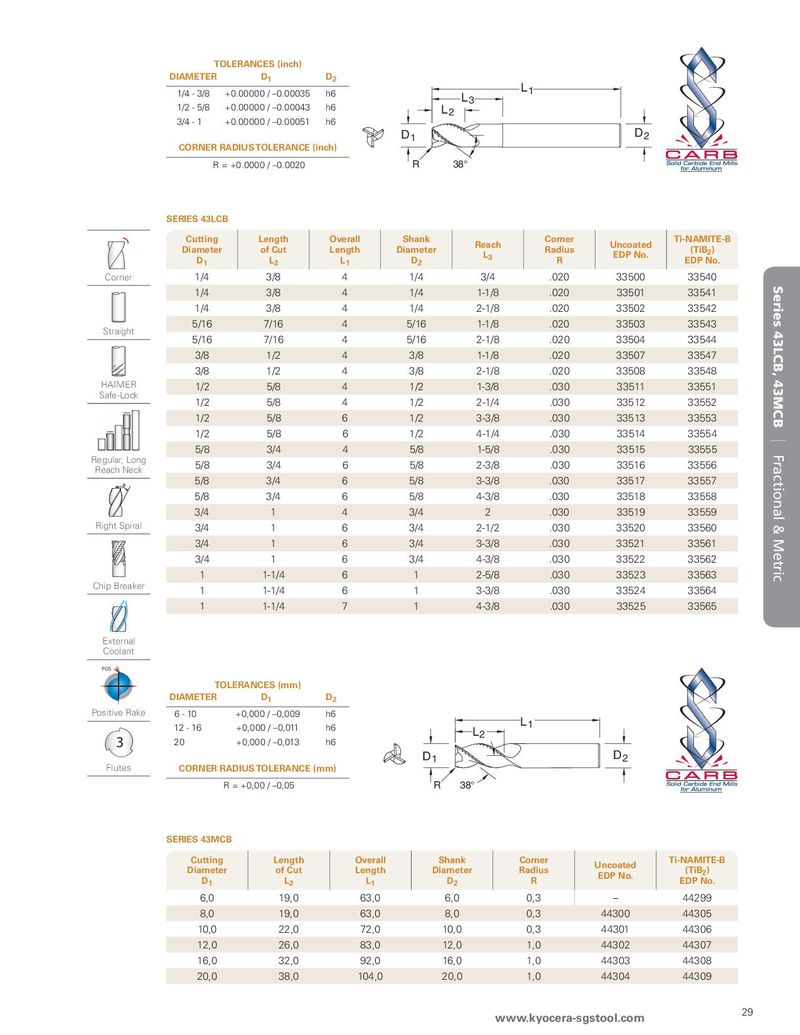

SERIES 43LCB D D
1 2
| Cutting Diameter | Length of Cut | Overall Length | Shank Diameter | Reach L | Corner Radius | Uncoated EDP N | Ti-NAMITE-B (TiB2) | |
| D1 | L2 | L1 | D2 | 3 | R | o. | EDP No. | |
| Corner | 1/4 | 3/8 | 4 | 1/4 | 3/4 | .020 | 33500 | 33540 |
| 1/4 | 3/8 | 4 | 1/4 | 1-1/8 | .020 | 33501 | 33541 | |
| 1/4 | 3/8 | 4 | 1/4 | 2-1/8 | .020 | 33502 | 33542 | |
| Straiht | 5/16 | 7/16 | 4 | 5/16 | 1-1/8 | .020 | 33503 | 33543 |
| g | 5/16 | 7/16 | 4 | 5/16 | 2-1/8 | .020 | 33504 | 33544 |
| 3/8 | 1/2 | 4 | 3/8 | 1-1/8 | .020 | 33507 | 33547 | |
| 3/8 | 1/2 | 4 | 3/8 | 2-1/8 | .020 | 33508 | 33548 | |
| HAIMER SfLk | 1/2 | 5/8 | 4 | 1/2 | 1-3/8 | .030 | 33511 | 33551 |
| ae-oc | 1/2 | 5/8 | 4 | 1/2 | 2-1/4 | .030 | 33512 | 33552 |
| 1/2 | 5/8 | 6 | 1/2 | 3-3/8 | .030 | 33513 | 33553 | |
| 1/2 | 5/8 | 6 | 1/2 | 4-1/4 | .030 | 33514 | 33554 | |
| 5/8 | 3/4 | 4 | 5/8 | 1-5/8 | .030 | 33515 | 33555 | |
| Regular, Long Reach Neck | 5/8 | 3/4 | 6 | 5/8 | 2-3/8 | .030 | 33516 | 33556 |
| 5/8 | 3/4 | 6 | 5/8 | 3-3/8 | .030 | 33517 | 33557 | |
| 5/8 | 3/4 | 6 | 5/8 | 4-3/8 | .030 | 33518 | 33558 | |
| 3/4 | 1 | 4 | 3/4 | 2 | .030 | 33519 | 33559 | |
| Right Spiral | 3/4 | 1 | 6 | 3/4 | 2-1/2 | .030 | 33520 | 33560 |
| 3/4 | 1 | 6 | 3/4 | 3-3/8 | .030 | 33521 | 33561 | |
| 3/4 | 1 | 6 | 3/4 | 4-3/8 | .030 | 33522 | 33562 | |
| 1 | 1-1/4 | 6 | 1 | 2-5/8 | .030 | 33523 | 33563 | |
| Chip Breaker | 1 | 1-1/4 | 6 | 1 | 3-3/8 | .030 | 33524 | 33564 |
| External Coolant | 1 | 1-1/4 | 7 | 1 | 4-3/8 | .030 | 33525 | 33565 |
| POS | TOL DIAMETER | ERANCES (mm) D1 | D2 | |||||
| Positive Rake | 6 - 10 | +0,000 / –0,009 | h6 | L | ||||
| 3 Flutes | 12 - 16 20 CORNER R | +0,000 / –0,011 +0,000 / –0,013 DIUS TOLERANCE | h6 h6 (mm) | 1 D | L2 | 1 | 2 D |
| T DIAMETER | OLERANCES (mm) D1 | D2 | |
| 6 - 10 | +0,000 / –0,009 | h6 | |
| 12 - 16 20 CORNER | +0,000 / –0,011 +0,000 / –0,013 RADIUS TOLERANCE R = +0,00 / –0,05 | h6 h6 (mm) | L1 L2 2 D 1 D R 38° |
SERIES 43MCB
| Cutting Diameter D1 | Length of Cut L2 | Overall Length L1 | Shank Diameter D2 | Corner Radius R | Uncoated EDP No. | Ti-NAMITE-B (TiB2) EDP No. |
| 6,0 | 19,0 | 63,0 | 6,0 | 0,3 | – | 44299 |
| 8,0 | 19,0 | 63,0 | 8,0 | 0,3 | 44300 | 44305 |
| 10,0 | 22,0 | 72,0 | 10,0 | 0,3 | 44301 | 44306 |
| 12,0 | 26,0 | 83,0 | 12,0 | 1,0 | 44302 | 44307 |
| 16,0 | 32,0 | 92,0 | 16,0 | 1,0 | 44303 | 44308 |
| 20,0 | 38,0 | 104,0 | 20,0 | 1,0 | 44304 | 44309 |
