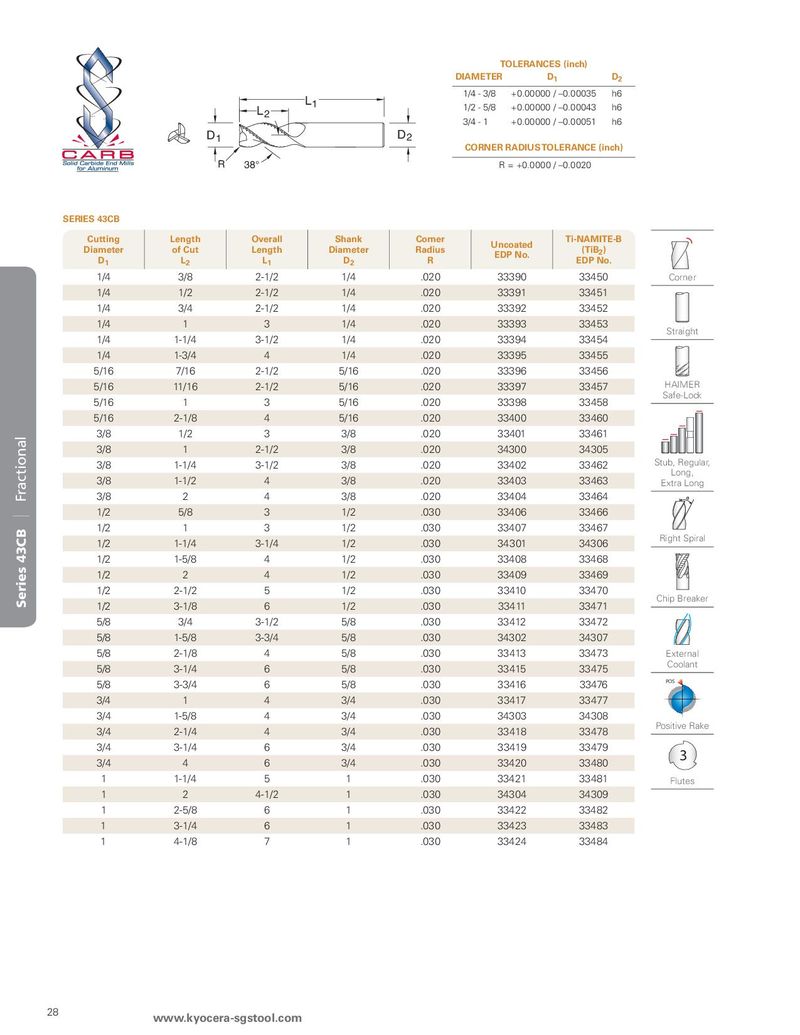

| T DIAMETER | OLERANCES (inch) D1 | D2 | |||
| 1 D R | L1 L2 38° | 2 D | 1/4 - 3/8 1/2 - 5/8 3/4 - 1 CORNER R | +0.00000 / –0.00035 +0.00000 / –0.00043 +0.00000 / –0.00051 RADIUS TOLERANCE = +0.0000 / –0.0020 | h6 h6 h6 (inch) |
| SERIES 43CB | |||||||
| Cutting Diameter | Length of Cut | Overall Length | Shank Diameter | Corner Radius | Uncoated | Ti-NAMITE-B (TiB2) | |
| D1 | L2 | L1 | D2 | R | EDP No. | EDP No. | |
| 1/4 | 3/8 | 2-1/2 | 1/4 | .020 | 33390 | 33450 | Corner |
| 1/4 | 1/2 | 2-1/2 | 1/4 | .020 | 33391 | 33451 | |
| 1/4 | 3/4 | 2-1/2 | 1/4 | .020 | 33392 | 33452 | |
| 1/4 | 1 | 3 | 1/4 | .020 | 33393 | 33453 | Straight |
| 1/4 | 1-1/4 | 3-1/2 | 1/4 | .020 | 33394 | 33454 | |
| 1/4 | 1-3/4 | 4 | 1/4 | .020 | 33395 | 33455 | |
| 5/16 | 7/16 | 2-1/2 | 5/16 | .020 | 33396 | 33456 | |
| 5/16 | 11/16 | 2-1/2 | 5/16 | .020 | 33397 | 33457 | HAIMER Safe-Lock |
| 5/16 | 1 | 3 | 5/16 | .020 | 33398 | 33458 | |
| 5/16 | 2-1/8 | 4 | 5/16 | .020 | 33400 | 33460 | |
| 3/8 | 1/2 | 3 | 3/8 | .020 | 33401 | 33461 | |
| 3/8 | 1 | 2-1/2 | 3/8 | .020 | 34300 | 34305 | |
| 3/8 | 1-1/4 | 3-1/2 | 3/8 | .020 | 33402 | 33462 | Stub, Regular, L |
| 3/8 | 1-1/2 | 4 | 3/8 | .020 | 33403 | 33463 | ong, Extra Long |
| 3/8 | 2 | 4 | 3/8 | .020 | 33404 | 33464 | |
| 1/2 | 5/8 | 3 | 1/2 | .030 | 33406 | 33466 | |
| 1/2 | 1 | 3 | 1/2 | .030 | 33407 | 33467 | |
| 1/2 | 1-1/4 | 3-1/4 | 1/2 | .030 | 34301 | 34306 | Right Spiral |
| 1/2 | 1-5/8 | 4 | 1/2 | .030 | 33408 | 33468 | |
| 1/2 | 2 | 4 | 1/2 | .030 | 33409 | 33469 | |
| 1/2 | 2-1/2 | 5 | 1/2 | .030 | 33410 | 33470 | Chi Breaker |
| 1/2 | 3-1/8 | 6 | 1/2 | .030 | 33411 | 33471 | p |
| 5/8 | 3/4 | 3-1/2 | 5/8 | .030 | 33412 | 33472 | |
| 5/8 | 1-5/8 | 3-3/4 | 5/8 | .030 | 34302 | 34307 | |
| 5/8 | 2-1/8 | 4 | 5/8 | .030 | 33413 | 33473 | External |
| 5/8 | 3-1/4 | 6 | 5/8 | .030 | 33415 | 33475 | Coolant |
| 5/8 | 3-3/4 | 6 | 5/8 | .030 | 33416 | 33476 | POS |
| 3/4 | 1 | 4 | 3/4 | .030 | 33417 | 33477 | |
| 3/4 | 1-5/8 | 4 | 3/4 | .030 | 34303 | 34308 | |
| 3/4 | 2-1/4 | 4 | 3/4 | .030 | 33418 | 33478 | Positive Rake |
| 3/4 | 3-1/4 | 6 | 3/4 | .030 | 33419 | 33479 | |
| 3/4 | 4 | 6 | 3/4 | .030 | 33420 | 33480 | 3 |
| 1 | 1-1/4 | 5 | 1 | .030 | 33421 | 33481 | Flutes |
| 1 | 2 | 4-1/2 | 1 | .030 | 34304 | 34309 | |
| 1 | 2-5/8 | 6 | 1 | .030 | 33422 | 33482 | |
| 1 | 3-1/4 | 6 | 1 | .030 | 33423 | 33483 | |
| 1 | 4-1/8 | 7 | 1 | .030 | 33424 | 33484 |
