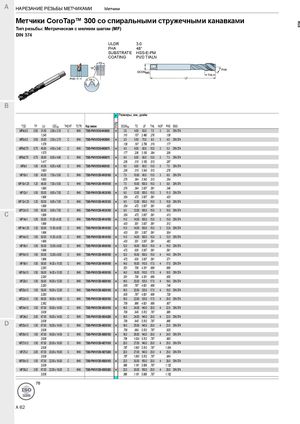

ULDR 3.0 FHA 48° SUBSTRATE HSS-E-PM COATING PVD TIALN
B
| P Размеры M | , мм, д | юйм | |||||||||||
| TDZ | TP | LU | CZCMS | THCHT | TCTR | Код заказа | P1P DCONMS | TD | LF | THL | NOF | PHD | BSG |
| MF4x0.5 | 0.50 | 31.50 | 2.80 x 2.10 | C | 6HX | T300-PM101DB-M4X050 | ★ 2.8 | 4.00 | 63.0 | 7.0 | 3 | 3.5 | DIN 374 |
| 1.240 | .110 | .157 | 2.480 | .276 | .138 | ||||||||
| MF5x0.5 | 0.50 | 35.00 | 3.50 x 2.70 | C | 6HX | T300-PM101DB-M5X050 | ★ 3.5 | 5.00 | 70.0 | 8.0 | 3 | 4.5 | DIN 374 |
| 1.378 | .138 | .197 | 2.756 | .315 | .177 | ||||||||
| MF6x0.75 | 0.75 | 40.00 | 4.50 x 3.40 | C | 6HX | T300-PM101DB-M6X075 | ★ 4.5 | 6.00 | 80.0 | 10.0 | 3 | 5.3 | DIN 374 |
| 1.575 | .177 | .236 | 3.150 | .394 | .209 | ||||||||
| MF8x0.75 | 0.75 | 36.00 | 6.00 x 4.90 | C | 6HX | T300-PM101DB-M8X075 | ★ 6.0 | 8.00 | 80.0 | 13.0 | 3 | 7.3 | DIN 374 |
| 1.417 | .236 | .315 | 3.150 | .512 | .287 | ||||||||
| MF8x1 | 1.00 | 43.00 | 6.00 x 4.90 | C | 6HX | T300-PM101DB-M8X100 | ★ 6.0 | 8.00 | 90.0 | 13.0 | 3 | 7.0 | DIN 374 |
| 1.693 | .236 | .315 | 3.543 | .512 | .276 | ||||||||
| MF10x1 | 1.00 | 43.00 | 7.00 x 5.50 | C | 6HX | T300-PM101DB-M10X100 | ★ 7.0 | 10.00 | 90.0 | 13.0 | 3 | 9.0 | DIN 374 |
| 1.693 | .276 | .394 | 3.543 | .512 | .354 | ||||||||
| MF10x1.25 | 1.25 | 48.00 | 7.00 x 5.50 | C | 6HX | T300-PM101DB-M10X125 | ★ 7.0 | 10.00 | 100.0 | 15.0 | 3 | 8.8 | DIN 374 |
| 1.890 | .276 | .394 | 3.937 | .591 | .346 | ||||||||
| MF12x1 | 1.00 | 50.00 | 9.00 x 7.00 | C | 6HX | T300-PM101DB-M12X100 | ★ 9.0 | 12.00 | 100.0 | 15.0 | 3 | 11.0 | DIN 374 |
| 1.969 | .354 | .472 | 3.937 | .591 | .433 | ||||||||
| MF12x1.25 | 1.25 | 50.00 | 9.00 x 7.00 | C | 6HX | T300-PM101DB-M12X125 | ★ 9.0 | 12.00 | 100.0 | 15.0 | 3 | 10.8 | DIN 374 |
| 1.969 | .354 | .472 | 3.937 | .591 | .425 | ||||||||
| MF12x1.5 | 1.50 | 50.00 | 9.00 x 7.00 | C | 6HX | T300-PM101DB-M12X150 | ★ 9.0 | 12.00 | 100.0 | 15.0 | 3 | 10.5 | DIN 374 |
| 1.969 | .354 | .472 | 3.937 | .591 | .413 | ||||||||
| MF14x1 | 1.00 | 50.00 | 11.00 x 9.00 | C | 6HX | T300-PM101DB-M14X100 | ★ 11.0 | 14.00 | 100.0 | 15.0 | 3 | 13.0 | DIN 374 |
| 1.969 | .433 | .551 | 3.937 | .591 | .512 | ||||||||
| MF14x1.25 | 1.25 | 50.00 | 11.00 x 9.00 | C | 6HX | T300-PM101DB-M14X125 | ★ 11.0 | 14.00 | 100.0 | 15.0 | 3 | 12.8 | DIN 374 |
| 1.969 | .433 | .551 | 3.937 | .591 | .504 | ||||||||
| MF14x1.5 | 1.50 | 50.00 | 11.00 x 9.00 | C | 6HX | T300-PM101DB-M14X150 | ★ 11.0 | 14.00 | 100.0 | 15.0 | 3 | 12.5 | DIN 374 |
| 1.969 | .433 | .551 | 3.937 | .591 | .492 | ||||||||
| MF16x1 | 1.00 | 50.00 | 12.00 x 9.00 | C | 6HX | T300-PM101DB-M16X100 | ★ 12.0 | 16.00 | 100.0 | 15.0 | 4 | 15.0 | DIN 374 |
| 1.969 | .472 | .630 | 3.937 | .591 | .591 | ||||||||
| MF16x1.5 | 1.50 | 50.00 | 12.00 x 9.00 | C | 6HX | T300-PM101DB-M16X150 | ★ 12.0 | 16.00 | 100.0 | 15.0 | 4 | 14.5 | DIN 374 |
| 1.969 | .472 | .630 | 3.937 | .591 | .571 | ||||||||
| MF18x1 | 1.00 | 58.00 | 14.00 x 11.00 | C | 6HX | T300-PM101DB-M18X100 | ★ 14.0 | 18.00 | 110.0 | 17.0 | 4 | 17.0 | DIN 374 |
| 2.283 | .551 | .709 | 4.331 | .669 | .669 | ||||||||
| MF18x1.5 | 1.50 | 58.00 | 14.00 x 11.00 | C | 6HX | T300-PM101DB-M18X150 | ★ 14.0 | 18.00 | 110.0 | 17.0 | 4 | 16.5 | DIN 374 |
| 2.283 | .551 | .709 | 4.331 | .669 | .650 | ||||||||
| MF20x1 | 1.00 | 58.00 | 16.00 x 12.00 | C | 6HX | T300-PM101DB-M20X100 | ★ 16.0 | 20.00 | 125.0 | 17.0 | 4 | 19.0 | DIN 374 |
| 2.283 | .630 | .787 | 4.921 | .669 | .748 | ||||||||
| MF20x1.5 | 1.50 | 58.00 | 16.00 x 12.00 | C | 6HX | T300-PM101DB-M20X150 | ★ 16.0 | 20.00 | 125.0 | 17.0 | 4 | 18.5 | DIN 374 |
| 2.283 | .630 | .787 | 4.921 | .669 | .728 | ||||||||
| MF22x1.5 | 1.50 | 60.00 | 18.00 x 14.50 | C | 6HX | T300-PM101DB-M22X150 | ★ 18.0 | 22.00 | 125.0 | 17.0 | 4 | 20.5 | DIN 374 |
| 2.362 | .709 | .866 | 4.921 | .669 | .807 | ||||||||
| MF24x1.5 | 1.50 | 67.00 | 18.00 x 14.50 | C | 6HX | T300-PM101DB-M24X150 | ★ 18.0 | 24.00 | 140.0 | 20.0 | 4 | 22.5 | DIN 374 |
| 2.638 | .709 | .945 | 5.512 | .787 | .886 | ||||||||
| MF24x2 | 2.00 | 67.00 | 18.00 x 14.50 | C | 6HX | T300-PM101DB-M24X200 | ★ 18.0 | 24.00 | 140.0 | 20.0 | 4 | 22.0 | DIN 374 |
| 2.638 | .709 | .945 | 5.512 | .787 | .866 | ||||||||
| MF25x1.5 | 1.50 | 67.00 | 18.00 x 14.50 | C | 6HX | T300-PM101DB-M25X150 | ★ 18.0 | 25.00 | 140.0 | 20.0 | 4 | 23.5 | DIN 374 |
| 2.638 | .709 | .984 | 5.512 | .787 | .925 | ||||||||
| MF26x1.5 | 1.50 | 67.00 | 18.00 x 14.50 | C | 6HX | T300-PM101DB-M26X150 | ★ 18.0 | 26.00 | 140.0 | 20.0 | 4 | 24.5 | DIN 374 |
| 2.638 | .709 | 1.024 | 5.512 | .787 | .965 | ||||||||
| MF27x1.5 | 1.50 | 67.00 | 20.00 x 16.00 | C | 6HX | T300-PM101DB-M27X150 | ★ 20.0 | 27.00 | 140.0 | 20.0 | 4 | 25.5 | DIN 374 |
| 2.638 | .787 | 1.063 | 5.512 | .787 | 1.004 | ||||||||
| MF27x2 | 2.00 | 67.00 | 20.00 x 16.00 | C | 6HX | T300-PM101DB-M27X200 | ★ 20.0 | 27.00 | 140.0 | 20.0 | 4 | 25.0 | DIN 374 |
| 2.638 | .787 | 1.063 | 5.512 | .787 | .984 | ||||||||
| MF30x1.5 | 1.50 | 67.00 | 22.00 x 18.00 | C | 6HX | T300-PM101DB-M30X150 | ★ 22.0 | 30.00 | 150.0 | 20.0 | 4 | 28.5 | DIN 374 |
| MF30x2 | 200 | 2.638 6700 | 2200 x 1800 | C | 6HX | T300-PM101DB-M30X200 | .866 ★ 220 | 1.181 3000 | 5.906 1500 | .787 200 | 4 | 1.122 280 | DIN 374 |
| . | . 2.638 | . . | . .866 | . 1.181 | . 5.906 | . .787 | . 1.102 |
