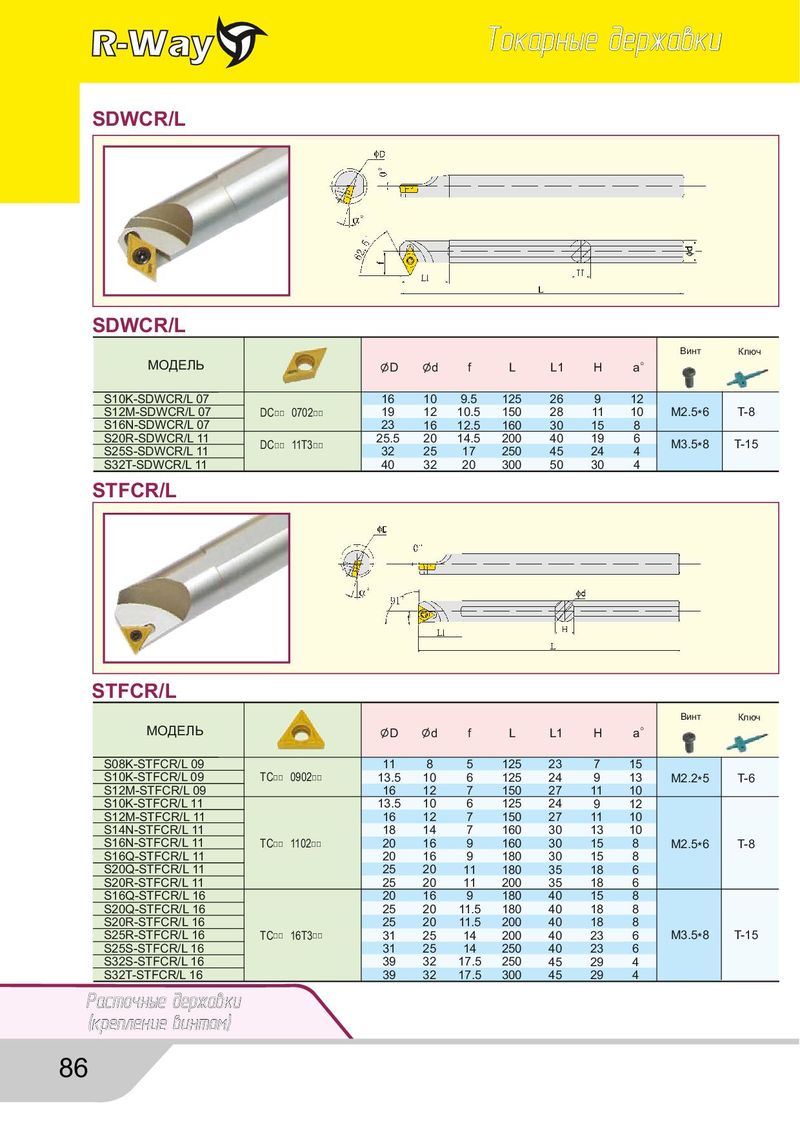

Каталог R-Way токарные державки - страница 86
Навигация
Общий каталог RightWay
Каталог R-Way инструмент из быстрорежущей стали
Каталог R-Way корпусные фрезы
Каталог R-Way бор фрезы
Каталог R-Way свёрла и буры
SDWCR/L
SDWCR/L
| МОДЕЛЬ | D | d | f | L | L1 | H | a`。` | Винт | Ключ | |
| S10K-SDWCR/L 07 | 16 | 10 | 9.5 | 125 | 26 | 9 | 12 | |||
| S12M-SDWCR/L 07 | DC□□0702□□ | 19 | 12 | 10.5 | 150 | 28 | 11 | 10 | M2.56 | T-8 |
| S16N-SDWCR/L 07 | 23 | 16 | 12.5 | 160 | 30 | 15 | 8 | |||
| S20R-SDWCR/L 11 | 11 | 25.5 | 20 | 14.5 | 200 | 40 | 19 | 6 | M358 | T15 |
| S25S-SDWCR/L 11 | DC□□T3□□ | 32 | 25 | 17 | 250 | 45 | 24 | 4 | . | - |
| S32T-SDWCR/L 11 | 40 | 32 | 20 | 300 | 50 | 30 | 4 |
STFCR/L
STFCR/L
| МОДЕЛЬ | D | d | f | L | L1 | H | a`。` | Винт | Ключ | |
| S08K-STFCR/L 09 | 11 | 8 | 5 | 125 | 23 | 7 | 15 | |||
| S10K-STFCR/L 09 | TC□□0902□□ | 13.5 | 10 | 6 | 125 | 24 | 9 | 13 | M2.25 | T-6 |
| S12M-STFCR/L 09 | 16 | 12 | 7 | 150 | 27 | 11 | 10 | |||
| S10K-STFCR/L 11 | 13.5 | 10 | 6 | 125 | 24 | 9 | 12 | |||
| S12M-STFCR/L 11 | 16 | 12 | 7 | 150 | 27 | 11 | 10 | |||
| S14N-STFCR/L 11 | 18 | 14 | 7 | 160 | 30 | 13 | 10 | |||
| S16N-STFCR/L 11 | TC□□1102□□ | 20 | 16 | 9 | 160 | 30 | 15 | 8 | M2.56 | T-8 |
| S16Q-STFCR/L 11 | 20 | 16 | 9 | 180 | 30 | 15 | 8 | |||
| S20Q-STFCR/L 11 | 25 | 20 | 11 | 180 | 35 | 18 | 6 | |||
| S20R-STFCR/L 11 | 25 | 20 | 11 | 200 | 35 | 18 | 6 | |||
| S16Q-STFCR/L 16 | 20 | 16 | 9 | 180 | 40 | 15 | 8 | |||
| S20Q-STFCR/L 16 | 25 | 20 | 11.5 | 180 | 40 | 18 | 8 | |||
| S20R-STFCR/L 16 | 25 | 20 | 11.5 | 200 | 40 | 18 | 8 | |||
| S25R-STFCR/L 16 | TC□□16T3□□ | 31 | 25 | 14 | 200 | 40 | 23 | 6 | M3.58 | T-15 |
| S25S-STFCR/L 16 | 31 | 25 | 14 | 250 | 40 | 23 | 6 | |||
| S32S-STFCR/L 16 | 39 | 32 | 17.5 | 250 | 45 | 29 | 4 | |||
| S32T-STFCR/L 16 | 39 | 32 | 17.5 | 300 | 45 | 29 | 4 |
