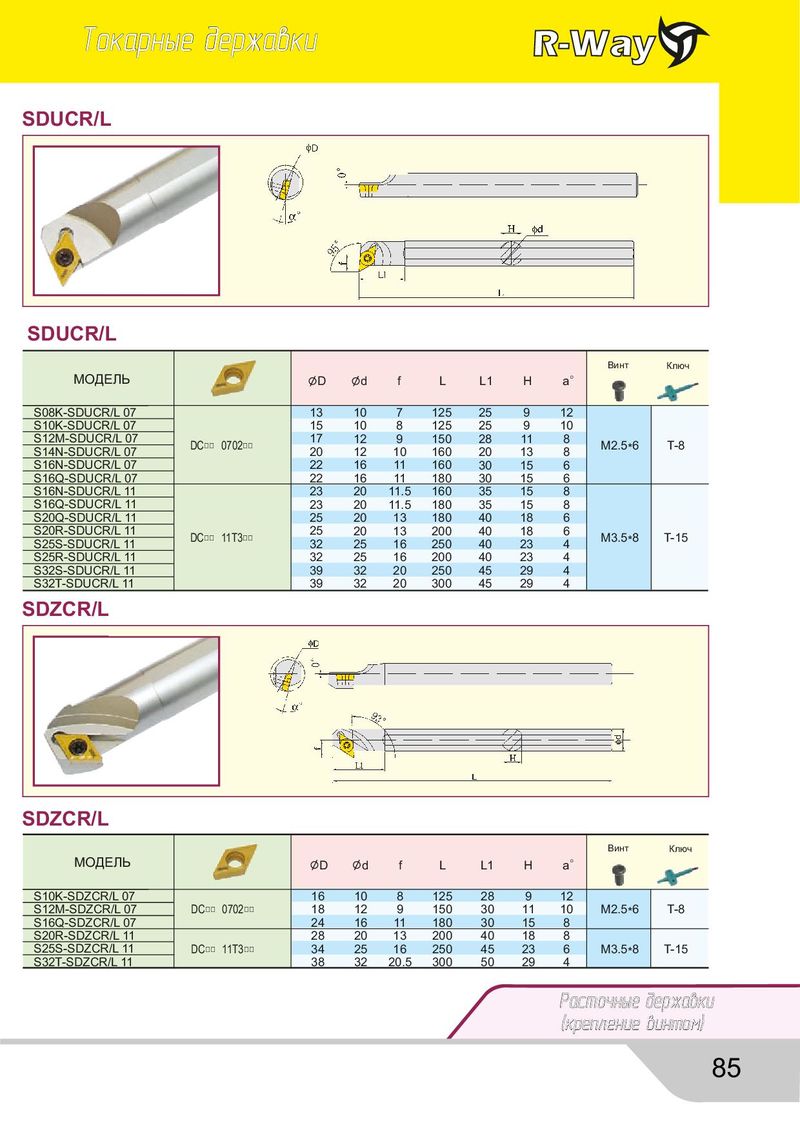

Каталог R-Way токарные державки - страница 85
Навигация
Общий каталог RightWay
Каталог R-Way инструмент из быстрорежущей стали
Каталог R-Way корпусные фрезы
Каталог R-Way бор фрезы
Каталог R-Way свёрла и буры
SDUCR/L
SDUCR/L
| МОДЕЛЬ | D | d | f | L | L1 | H | a`。` | Винт | Ключ | |
| S08K-SDUCR/L 07 | 13 | 10 | 7 | 125 | 25 | 9 | 12 | |||
| S10K-SDUCR/L 07 | 15 | 10 | 8 | 125 | 25 | 9 | 10 | |||
| S12M-SDUCR/L 07 | 17 | 12 | 9 | 150 | 28 | 11 | 8 | |||
| S14N-SDUCR/L 07 | DC□□0702□□ | 20 | 12 | 10 | 160 | 20 | 13 | 8 | M2.56 | T-8 |
| S16N-SDUCR/L 07 | 22 | 16 | 11 | 160 | 30 | 15 | 6 | |||
| S16Q-SDUCR/L 07 | 22 | 16 | 11 | 180 | 30 | 15 | 6 | |||
| S16N-SDUCR/L 11 | 23 | 20 | 11.5 | 160 | 35 | 15 | 8 | |||
| S16Q-SDUCR/L 11 | 23 | 20 | 11.5 | 180 | 35 | 15 | 8 | |||
| S20Q-SDUCR/L 11 | 25 | 20 | 13 | 180 | 40 | 18 | 6 | |||
| S20R-SDUCR/L 11 | 25 | 20 | 13 | 200 | 40 | 18 | 6 | |||
| S25S-SDUCR/L 11 | DC□□11T3□□ | 32 | 25 | 16 | 250 | 40 | 23 | 4 | M3.58 | T-15 |
| S25R-SDUCR/L 11 | 32 | 25 | 16 | 200 | 40 | 23 | 4 | |||
| S32S-SDUCR/L 11 | 39 | 32 | 20 | 250 | 45 | 29 | 4 | |||
| S32T-SDUCR/L 11 | 39 | 32 | 20 | 300 | 45 | 29 | 4 |
SDZCR/L
SDZCR/L
| МОДЕЛЬ | D | d | f | L | L1 | H | a`。` | Винт | Ключ | |
| S10K-SDZCR/L 07 | 16 | 10 | 8 | 125 | 28 | 9 | 12 | |||
| S12M-SDZCR/L 07 | DC□□0702□□ | 18 | 12 | 9 | 150 | 30 | 11 | 10 | M2.56 | T-8 |
| S16Q-SDZCR/L 07 | 24 | 16 | 11 | 180 | 30 | 15 | 8 | |||
| S20R-SDZCR/L 11 | 28 | 20 | 13 | 200 | 40 | 18 | 8 | |||
| S25S-SDZCR/L 11 | DC□□11T3□□ | 34 | 25 | 16 | 250 | 45 | 23 | 6 | M3.58 | T-15 |
| S32T-SDZCR/L 11 | 38 | 32 | 20.5 | 300 | 50 | 29 | 4 |
