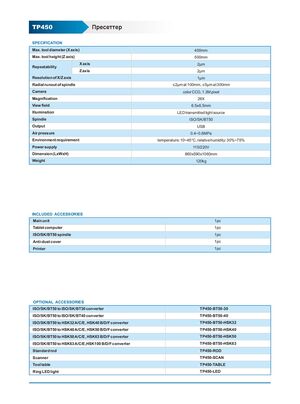

Брошюра пресеттеры TPI 500, TP 450 - страница 2

Пресеттер TP450 SPECIFICATION Max. tool diameter (X axis) 400mm Max. tool height (Z axis) 500mm Repeatability X axis 2µm Z axis 2µm Resolution of X/Z axis Radial runout of spindle Camera Magnification View field lllumination Spindle Output Air pressure Environment requirement Power supply Dimension (LxWxH) Weight 1µm ≤2µm at 100mm, ≤5µm at 300mm color CCD, 1.3M pixel 26X 6.5x6.5mm LED transmitted light source ISO/SK/BT50 USB 0.4~0.6MPa temperature: 10~45°C, relative humidity: 30%~75% 110/220V 860x590x1060mm 120kg INCLUDED ACCESSORIES Main unit 1pc Tablet computer 1pc ISO/SK/BT50 spindle 1pc Anti-dust cover 1pc Printer 1pc OPTIONAL ACCESSORIES ISO/SK/BT50 to ISO/SK/BT30 converter TP450-BT50-30 ISO/SK/BT50 to ISO/SK/BT40 converter TP450-BT50-40 ISO/SK/BT50 to HSK32 A/C/E, HSK40 B/D/F converter TP450-BT50-HSK32 ISO/SK/BT50 to HSK40 A/C/E, HSK50 B/D/F converter TP450-BT50-HSK40 ISO/SK/BT50 to HSK50 A/C/E, HSK63 B/D/F converter TP450-BT50-HSK50 ISO/SK/BT50 to HSK63 A/C/E,HSK100 B/D/F converter TP450-BT50-HSK63 Standard rod TP450-ROD Scanner TP450-SCAN Tool table TP450-TABLE Ring LED light TP450-LED
