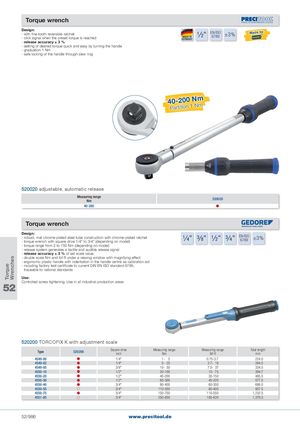

Torque wrench Design:- with fine-tooth reversible ratchet- click signal when the preset torque is reached 1 2" EN/ISO6789 ±3 % Made by - release accuracy ± 3 % - setting of desired torque quick and easy by turning the handle - graduation 1 Nm - safe locking of the handle through slew ring 4P0a-rt2iti0on01NNmm 520020 adjustable, automatic release Measuring rangeNm 520020 40-200  Torque wrench Design: - robust, mat chrome-plated steel tube construction with chrome-plated ratchet- torque wrench with square drive 1/4" to 3/4" (depending on model)1 4"3 8"1 2"3 4"EN/ISO6789±3 % - torque range from 2 to 750 Nm (depending on model) - release system generates a tactile and audible release signal - release accuracy ± 3 % of set scale value - double scale Nm and lbf-ft under a viewing window with magnifying effect - ergonomic plastic handle with indentation in the handle centre as calibration aid - including factory test certificate to current DIN EN ISO standard 6789, traceable to national standards Use: Controlled screw tightening. Use in all industrial production areas 52 520200 TORCOFIX K with adjustment scale Type 520200 Square driveInch Measuring rangeNm Measuring rangeIbf-ft Total lengthmm 4549-00  1/4"   1-  5    0.75-3.7    224.0 4549-02  1/4"   5- 25   3.7- 18    284.5 4549-05  3/8"  10- 50   7.5- 37     334.5 4550-10  1/2"  20-100   15- 75    394.7 4550-20  1/2"  40-200   30-150    485.5 4550-30  1/2"  60-300   45-220    577.5 4550-40  3/4"  80-400   60-300    686.0 4550-55  3/4" 110-550   80-405    957.5 4550-75  3/4" 150-750  110-550  1,232.5 4551-85  3/4" 250-850  185-630  1,379.5 52/986 www.precitool.de Torque Wrenches
