Общий каталог PRECITOOL - страница 990

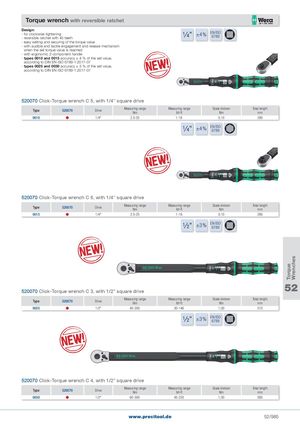

Torque wrench with reversible ratchet Design:- for clockwise tightening- reversible ratchet with 45 teeth 1 4" ±4 % EN/ISO6789 - easy setting and securing of the torque value - with audible and tactile engagement and release mechanism when the set torque value is reached - with ergonomic 2-component handle - types 0010 and 0015 accuracy ± 4 % of the set value, according to DIN EN ISO 6789-1:2017-07 - types 0025 and 0030 accuracy ± 3 % of the set value, according to DIN EN ISO 6789-1:2017-07 520070 Click-Torque wrench C 5, with 1/4” square drive Type 520070 Drive Measuring rangeNm Measuring rangeIbf-ft Scale divisionNm Total lengthmm 0010  1/4" 2.5-25 1-18  0,10 290 1 4" ±4 % EN/ISO6789 520070 Click-Torque wrench C 6, with 1/4” square drive Type 520070 Drive Measuring rangeNm Measuring rangeIbf-ft Scale divisionNm Total lengthmm 0015  1/4" 2.5-25 1-18  0,10 290 1 2" ±3 % EN/ISO6789 520070 Click-Torque wrench C 3, with 1/2” square drive 52 Type 520070 Drive Measuring rangeNm Measuring rangeIbf-ft Scale divisionNm Total lengthmm 0025  1/2" 40-200  30-146  1,00 510 1 2" ±3 % EN/ISO6789 520070 Click-Torque wrench C 4, with 1/2” square drive Type 520070 Drive Measuring rangeNm Measuring rangeIbf-ft Scale divisionNm Total lengthmm 0030  1/2" 60-300  45-220  1,00 595 www.precitool.de 52/985 Torque Wrenches
