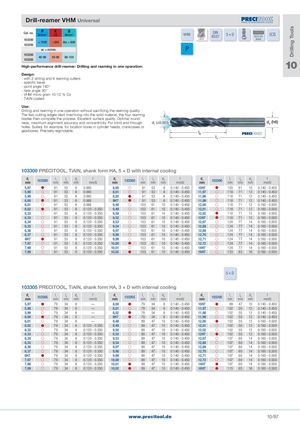

Drill-reamer VHM Universal

Cat. no. 103300 103305	P N/mm2 < 1200	K HB	N N/mm2 Alu < 600	VHM	coated	DIN 6537	3 × D	140°	6535 HA shank	ICS
	vc = m	/min.		P
103300 103305	40-90	45-90	80-120

103305 10

High-performance drill-reamer: Drilling and reaming in one operation:

Design: - with 2 drilling and 4 reaming cutters - specific bevel - point angle 140° - helix angle 30° - VHM micro grain 10-12 % Co - TiAlN coated

Use: Drilling and reaming in one operation without sacrificing the reaming quality. The two cutting edges start machining into the solid material, the four reaming blades then complete the process. Excellent surface quality. Optimal roundness, maximum alignment accuracy and concentricity. For blind and through d (±0,003) holes. Suited, for example. for location bores in cylinder heads, crankcases or 1 gearboxes. Precisely regrindable.

103300 PRECITOOL, TiAlN, shank form HA, 5 × D with internal cooling

d1 mm	103300	l1 mm	l2 mm	d2 mm	f mm/U	d1 mm	103300	l1 mm	l2 mm	d2 mm	f mm/U	d1 mm	103300	l1 mm	l2 mm	d2 mm	f mm/U
5,97		91	53	6	0�060	8,00		91	53	8	0�140 - 0�450	10H7		103	61	10	0�140 - 0�450
5,98		91	53	6	0�060	8,01		91	53	8	0�140 - 0�450	11,97		118	71	12	0�140 - 0�450
5,99		91	53	6	0�060	8,02		91	53	8	0�140 - 0�450	11,98		118	71	12	0�140 - 0�450
6,00		91	53	6	0�068	8H7		91	53	8	0�140 - 0�450	11,99		118	71	12	0�140 - 0�450
6,01		91	53	6	0�068	9,48		103	61	10	0�140 - 0�450	12,00		118	71	12	0�160 - 0�500
6,02		91	53	6	0�120 - 0�350	9,49		103	61	10	0�140 - 0�450	12,01		118	71	12	0�160 - 0�500
6,32		91	53	8	0�120 - 0�350	9,50		103	61	10	0�140 - 0�450	12,02		118	71	12	0�160 - 0�500
6,33		91	53	8	0�120 - 0�350	9,52		103	61	10	0�140 - 0�450	12H7		118	71	12	0�160 - 0�500
6,34		91	53	8	0�120 - 0�350	9,53		103	61	10	0�140 - 0�450	12,67		124	77	14	0�160 - 0�500
6,35		91	53	8	0�120 - 0�350	9,54		103	61	10	0�140 - 0�450	12,68		124	77	14	0�160 - 0�500
6,36		91	53	8	0�120 - 0�350	9,97		103	61	10	0�140 - 0�450	12,69		124	77	14	0�160 - 0�500
6,37		91	53	8	0�120 - 0�350	9,98		103	61	10	0�140 - 0�450	12,70		124	77	14	0�160 - 0�500
6H7		91	53	8	0�120 - 0�350	9,99		103	61	10	0�140 - 0�450	12,71		124	77	14	0�160 - 0�500
7,97		91	53	8	0�120 - 0�350	10,00		103	61	10	0�140 - 0�450	12,72		124	77	14	0�160 - 0�500
7,98		91	53	8	0�120 - 0�350	10,01		103	61	10	0�140 - 0�450	14H7		124	77	14	0�160 - 0�500
7,99		91	53	8	0�120 - 0�350	10,02		103	61	10	0�140 - 0�450	16H7		133	83	16	0�160 - 0�500

5 × D

103305 PRECITOOL, TiAlN, shank form HA, 3 × D with internal cooling

d1 mm	103305	l1 mm	l2 mm	d2 mm	f mm/U	d1 mm	103305	l1 mm	l2 mm	d2 mm	f mm/U	d1 mm	103305	l1 mm	l2 mm	d2 mm	f mm/U
5,97		79	34	6	—	8,00		79	34	8	0�140 - 0�450	10H7		89	47	10	0�140 - 0�450
5,98		79	34	6	—	8,01		79	34	8	0�140 - 0�450	11,97		102	55	12	0�140 - 0�450
5,99		79	34	6	—	8,02		79	34	8	0�140 - 0�450	11,98		102	55	12	0�140 - 0�450
6,00		79	34	6	—	8H7		79	34	8	0�140 - 0�450	11,99		102	55	12	0�140 - 0�450
6,01		79	34	6	—	9,48		89	47	10	0�140 - 0�450	12,00		102	55	12	0�160 - 0�500
6,02		79	34	6	0�120 - 0�350	9,49		89	47	10	0�140 - 0�450	12,01		102	55	12	0�160 - 0�500
6,32		79	34	8	0�120 - 0�350	9,50		89	47	10	0�140 - 0�450	12,02		102	55	12	0�160 - 0�500
6,33		79	34	8	0�120 - 0�350	9,52		89	47	10	0�140 - 0�450	12H7		102	55	12	0�160 - 0�500
6,34		79	34	8	0�120 - 0�350	9,53		89	47	10	0�140 - 0�450	12,67		107	60	14	0�160 - 0�500
6,35		79	34	8	0�120 - 0�350	9,54		89	47	10	0�140 - 0�450	12,68		107	60	14	0�160 - 0�500
6,36		79	34	8	0�120 - 0�350	9,97		89	47	10	0�140 - 0�450	12,69		107	60	14	0�160 - 0�500
6,37		79	34	8	0�120 - 0�350	9,98		89	47	10	0�140 - 0�450	12,70		107	60	14	0�160 - 0�500
6H7		79	34	8	0�120 - 0�350	9,99		89	47	10	0�140 - 0�450	12,71		107	60	14	0�160 - 0�500
7,97		79	34	8	0�120 - 0�350	10,00		89	47	10	0�140 - 0�450	12,72		107	60	14	0�160 - 0�500
7,98		79	34	8	0�120 - 0�350	10,01		89	47	10	0�140 - 0�450	14H7		107	60	14	0�160 - 0�500
7,99		79	34	8	0�120 - 0�350	10,02		89	47	10	0�140 - 0�450	16H7		115	65	16	0�160 - 0�500
