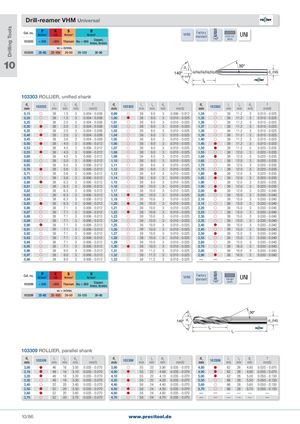

Общий каталог PRECITOOL - страница 91
Навигация
Drill-reamer VHM Universal
P K S N
Cat. no.
N/mm2 HB N/mm2 N/mm2
Copper,
103303 < 850 <300 Titanium Alu < 600
brass, bronze vc = m/min.
103303 25-60 25-100 20-50 35-120 30-90
10
VHM Factory standard
d 1 (0/-0,004)
140°
6335 HA shank
UNI
d (h6) 2
103303 ROLLIER, unified shank
| d | l | l | d | f d | l | l | d | f d | l | l | d | f | |||||
| 1 | 103303 | 1 | 2 | 2 | 1 | 103303 | 1 | 2 | 2 | 1 | 103303 | 1 | 2 | 2 | |||
| mm | mm | mm | mm | mm/U mm | mm | mm | mm | mm/U mm | mm | mm | mm | mm/U | |||||
| 0,15 | | 38 | 1�5 | 3 | 0�004 - 0�008 | 0,99 | | 38 | 9�0 | 3 | 0�006 - 0�012 | 1,34 | | 38 | 11�2 | 3 | 0�010 - 0�025 |
| 0,20 | | 38 | 1�5 | 3 | 0�004 - 0�008 | 1,00 | | 38 | 9�0 | 3 | 0�010 - 0�025 | 1,35 | | 38 | 11�2 | 3 | 0�010 - 0�025 |
| 0,25 | | 38 | 2�0 | 3 | 0�004 - 0�008 | 1,01 | | 38 | 9�0 | 3 | 0�010 - 0�025 | 1,36 | | 38 | 11�2 | 3 | 0�010 - 0�025 |
| 0,30 | | 38 | 2�0 | 3 | 0�004 - 0�008 | 1,02 | | 38 | 9�0 | 3 | 0�010 - 0�025 | 1,37 | | 38 | 11�2 | 3 | 0�010 - 0�025 |
| 0,35 | | 38 | 2�0 | 3 | 0�004 - 0�008 | 1,03 | | 38 | 9�0 | 3 | 0�010 - 0�025 | 1,38 | | 38 | 11�2 | 3 | 0�010 - 0�025 |
| 0,40 | | 38 | 2�0 | 3 | 0�004 - 0�008 | 1,04 | | 38 | 9�0 | 3 | 0�010 - 0�025 | 1,39 | | 38 | 11�2 | 3 | 0�010 - 0�025 |
| 0,45 | | 38 | 3�6 | 3 | 0�004 - 0�008 | 1,05 | | 38 | 9�0 | 3 | 0�010 - 0�025 | 1,40 | | 38 | 11�2 | 3 | 0�010 - 0�025 |
| 0,50 | | 38 | 4�0 | 3 | 0�006 - 0�012 | 1,06 | | 38 | 9�0 | 3 | 0�010 - 0�025 | 1,45 | | 38 | 11�2 | 3 | 0�010 - 0�025 |
| 0,53 | | 38 | 4�5 | 3 | 0�006 - 0�012 | 1,07 | | 38 | 9�0 | 3 | 0�010 - 0�025 | 1,50 | | 38 | 11�2 | 3 | 0�020 - 0�035 |
| 0,55 | | 38 | 4�5 | 3 | 0�006 - 0�012 | 1,08 | | 38 | 9�0 | 3 | 0�010 - 0�025 | 1,55 | | 38 | 12�0 | 3 | 0�020 - 0�035 |
| 0,60 | | 38 | 4�5 | 3 | 0�006 - 0�012 | 1,09 | | 38 | 9�0 | 3 | 0�010 - 0�025 | 1,60 | | 38 | 12�0 | 3 | 0�020 - 0�035 |
| 0,62 | | 38 | 5�0 | 3 | 0�006 - 0�012 | 1,10 | | 38 | 9�0 | 3 | 0�010 - 0�025 | 1,65 | | 38 | 12�0 | 3 | 0�020 - 0�035 |
| 0,65 | | 38 | 5�0 | 3 | 0�006 - 0�012 | 1,11 | | 38 | 9�0 | 3 | 0�010 - 0�025 | 1,70 | | 38 | 12�0 | 3 | 0�020 - 0�035 |
| 0,70 | | 38 | 5�6 | 3 | 0�006 - 0�012 | 1,12 | | 38 | 9�0 | 3 | 0�010 - 0�025 | 1,75 | | 38 | 12�0 | 3 | 0�020 - 0�035 |
| 0,71 | | 38 | 5�6 | 3 | 0�006 - 0�012 | 1,13 | | 38 | 9�0 | 3 | 0�010 - 0�025 | 1,80 | | 38 | 12�0 | 3 | 0�020 - 0�035 |
| 0,75 | | 38 | 5�6 | 3 | 0�006 - 0�012 | 1,14 | | 38 | 9�0 | 3 | 0�010 - 0�025 | 1,85 | | 38 | 12�0 | 3 | 0�020 - 0�035 |
| 0,80 | | 38 | 6�3 | 3 | 0�006 - 0�012 | 1,15 | | 38 | 9�0 | 3 | 0�010 - 0�025 | 1,90 | | 38 | 12�0 | 3 | 0�020 - 0�035 |
| 0,81 | | 38 | 6�3 | 3 | 0�006 - 0�012 | 1,16 | | 38 | 10�0 | 3 | 0�010 - 0�025 | 1,95 | | 38 | 12�0 | 3 | 0�020 - 0�035 |
| 0,82 | | 38 | 6�3 | 3 | 0�006 - 0�012 | 1,17 | | 38 | 10�0 | 3 | 0�010 - 0�025 | 2,00 | | 38 | 12�0 | 3 | 0�030 - 0�040 |
| 0,83 | | 38 | 6�3 | 3 | 0�006 - 0�012 | 1,18 | | 38 | 10�0 | 3 | 0�010 - 0�025 | 2,05 | | 38 | 15�0 | 3 | 0�030 - 0�040 |
| 0,84 | | 38 | 6�3 | 3 | 0�006 - 0�012 | 1,19 | | 38 | 10�0 | 3 | 0�010 - 0�025 | 2,10 | | 38 | 15�0 | 3 | 0�030 - 0�040 |
| 0,85 | | 38 | 6�3 | 3 | 0�006 - 0�012 | 1,20 | | 38 | 10�0 | 3 | 0�010 - 0�025 | 2,15 | | 38 | 15�0 | 3 | 0�030 - 0�040 |
| 0,86 | | 38 | 7�1 | 3 | 0�006 - 0�012 | 1,21 | | 38 | 10�0 | 3 | 0�010 - 0�025 | 2,20 | | 38 | 15�0 | 3 | 0�030 - 0�040 |
| 0,87 | | 38 | 7�1 | 3 | 0�006 - 0�012 | 1,22 | | 38 | 10�0 | 3 | 0�010 - 0�025 | 2,25 | | 38 | 15�0 | 3 | 0�030 - 0�040 |
| 0,88 | | 38 | 7�1 | 3 | 0�006 - 0�012 | 1,23 | | 38 | 10�0 | 3 | 0�010 - 0�025 | 2,30 | | 38 | 15�0 | 3 | 0�030 - 0�040 |
| 0,89 | | 38 | 7�1 | 3 | 0�006 - 0�012 | 1,24 | | 38 | 10�0 | 3 | 0�010 - 0�025 | 2,35 | | 38 | 15�0 | 3 | 0�030 - 0�040 |
| 0,90 | | 38 | 7�1 | 3 | 0�006 - 0�012 | 1,25 | | 38 | 10�0 | 3 | 0�010 - 0�025 | 2,40 | | 38 | 15�0 | 3 | 0�030 - 0�040 |
| 0,91 | | 38 | 7�1 | 3 | 0�006 - 0�012 | 1,26 | | 38 | 10�0 | 3 | 0�010 - 0�025 | 2,45 | | 38 | 15�0 | 3 | 0�030 - 0�040 |
| 0,92 | | 38 | 7�1 | 3 | 0�006 - 0�012 | 1,27 | | 38 | 10�0 | 3 | 0�010 - 0�025 | 2,50 | | 38 | 15�0 | 3 | 0�030 - 0�040 |
| 0,93 | | 38 | 7�1 | 3 | 0�006 - 0�012 | 1,28 | | 38 | 10�0 | 3 | 0�010 - 0�025 | 2,55 | | 38 | 15�0 | 3 | 0�030 - 0�040 |
| 0,94 | | 38 | 7�1 | 3 | 0�006 - 0�012 | 1,29 | | 38 | 10�0 | 3 | 0�010 - 0�025 | 2,60 | | 38 | 15�0 | 3 | 0�030 - 0�040 |
| 0,95 | | 38 | 7�1 | 3 | 0�006 - 0�012 | 1,30 | | 38 | 10�0 | 3 | 0�010 - 0�025 | 2,70 | | 38 | 16�0 | 3 | 0�030 - 0�040 |
| 0,96 | | 38 | 9�0 | 3 | 0�006 - 0�012 | 1,31 | | 38 | 11�2 | 3 | 0�010 - 0�025 | 2,80 | | 38 | 16�0 | 3 | 0�030 - 0�040 |
| 0,97 | | 38 | 9�0 | 3 | 0�006 - 0�012 | 1,32 | | 38 | 11�2 | 3 | 0�010 - 0�025 | 2,90 | | 38 | 16�0 | 3 | 0�030 - 0�040 |
| 0,98 | | 38 | 9�0 | 3 | 0�006 - 0�012 | 1,33 | | 38 | 11�2 | 3 | 0�010 - 0�025 | — | — | — | — | — | — |
| P | K | S | N | ||||||||||||||
| Cat. no. | VHM Factory | UNI | |||||||||||||||
| N/mm2 | HB | N/mm2 | N/mm2 | standard |
Straight
Copper, 140° shank
103309 < 850 <300 Titanium Alu < 600
brass, bronze vc = m/min.
103309 25-60 25-100 20-50 35-120 30-90
d d (h6) 1 2
103309 ROLLIER, parallel shank
| d | l | l | d | f d | l | l | d | f d | l | l | d | f | ||||||
| 1 | 103309 | 1 | 2 | 2 | 1 | 103309 | 1 | 2 | 2 | 1 | 103309 | 1 | 2 | 2 | ||||
| mm | mm | mm | mm | mm/U mm | mm | mm | mm | mm/U mm | mm | mm | mm | mm/U | ||||||
| 3,00 | | 46 | 16 | 3�00 | 0�035 - 0�070 | 3,90 | | 55 | 22 | 3�90 | 0�035 - 0�070 | 4,80 | | 62 | 26 | 4�80 | 0�035 - 0�070 | |
| 3,10 | | 49 | 18 | 3�10 | 0�035 - 0�070 | 4,00 | | 55 | 22 | 4�00 | 0�035 - 0�070 | 4,90 | | 62 | 26 | 4�90 | 0�035 - 0�070 | |
| 3,20 | | 49 | 18 | 3�20 | 0�035 - 0�070 | 4,10 | | 55 | 22 | 4�10 | 0�035 - 0�070 | 5,00 | | 62 | 26 | 5�00 | 0�050 - 0�150 | |
| 3,30 | | 49 | 18 | 3�30 | 0�035 - 0�070 | 4,20 | | 55 | 22 | 4�20 | 0�035 - 0�070 | 5,50 | | 66 | 28 | 5�50 | 0�050 - 0�150 | |
| 3,40 | | 52 | 20 | 3�40 | 0�035 - 0�070 | 4,40 | | 58 | 24 | 4�40 | 0�035 - 0�070 | 5,60 | | 66 | 28 | 5�60 | 0�050 - 0�150 | |
| 3,50 | | 52 | 20 | 3�50 | 0�035 - 0�070 | 4,50 | | 58 | 24 | 4�50 | 0�035 - 0�070 | 5,70 | | 66 | 28 | 5�70 | 0�050 - 0�150 | |
| 3,60 | | 52 | 20 | 3�60 | 0�035 - 0�070 | 4,60 | | 58 | 24 | 4�60 | 0�035 - 0�070 | — | — | — | — | — | — | |
| 3,70 | | 52 | 20 | 3�70 | 0�035 - 0�070 | 4,70 | | 58 | 24 | 4�70 | 0�035 - 0�070 | — | — | — | — | — | — |
