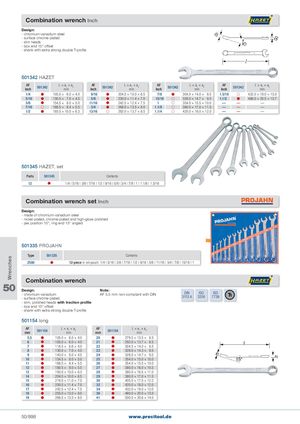

Общий каталог PRECITOOL - страница 903

Combination wrench Inch Design: - chromium-vanadium steel - surface chrome-plated - slim heads - box end 15° offset - shank with extra strong double T-profile 501342 HAZET AFInch 501342 L × a1 × a2mm AFInch 501342 L × a1 × a2mm AFInch 501342 L × a1 × a2mm AFInch501342 L × a1 × a2mm 1/4  105.0 ×   6.0 × 4.0  9/16  204.5 × 10.0 × 6.5   7/8  304.0 × 14.0 ×   8.5 1.5/16  432.0 × 19.0 × 13.0  5/16  130.0 ×   7.0 × 4.5 5/8  230.0 × 11.4 × 7.0  15/16  328.0 × 14.7 ×   9.5 1.1/2  486.0 × 20.5 × 13.7 3/8  154.5 ×   8.0 × 5.0 11/16  242.5 × 12.4 × 7.5   1  354.0 × 15.5 × 10.0 — — —  7/16  168.5 ×   8.4 × 5.5 3/4  268.0 × 13.5 × 8.0 1.1/8  380.0 × 17.0 × 11.5 — — — 1/2  193.0 × 10.0 × 6.3 13/16  292.0 × 13.7 × 8.5 1.1/4  420.0 × 18.0 × 12.0 — — — 501345 HAZET, set Parts 501345 Contents 12  1/4 | 5/16 | 3/8 | 7/16 | 1/2 | 9/16 | 5/8 | 3/4 | 7/8 | 1 | 1.1/8 | 1.5/16 Combination wrench set Inch Design: - made of chromium-vanadium steel - nickel-plated, chrome-plated and high-gloss polished - jaw position 15°, ring end 15° angled 501335 PROJAHN Type 501335 Contents 2580  12-piece in roll pouch: 1/4 | 5/16 | 3/8 | 7/16 | 1/2 | 9/16 | 5/8 | 11/16 | 3/4 | 7/8 | 15/16 | 1 Combination wrench 50 Design:- chromium-vanadium- surface chrome-plated Note:AF 5.5 mm non-compliant with DIN DIN ISO ISO3113 A33187738 - slim, polished heads with traction profile - box end 15° offset - shank with extra strong double T-profile 501154 long AFmm 501154 L × a1 × a2mm AFmm 501154 L × a1 × a2mm    5,5  105.0 ×   6.0 × 4.0 20  279.5 × 13.5 ×   8.5  6  105.0 ×   6.0 × 4.0 21  292.0 × 13.7 ×   8.5  7  118.5 ×   6.6 × 4.0 22  304.5 × 14.0 ×   8.5  8  130.0 ×  7.0 × 4.5 23  328.0 × 14.3 ×   9.5  9  143.0 ×   8.0 × 4.5 24  328.0 × 14.7 ×   9.5 10  154.5 ×   8.0 × 5.0 25  354.0 × 15.0 × 10.0 11  168.5 ×   8.4 × 5.5 26  354.0 × 15.5 × 10.0 12  180.5 ×   9.0 × 5.5 27  380.0 × 16.0 × 10.5 13  193.0 × 10.0 × 6.3 28  380.0 × 16.5 × 11.0 14  204.5 × 10.0 × 6.5 29  380.0 × 17.0 × 11.5 15  218.0 × 11.0 × 7.0 30  405.5 × 17.5 × 12.2 16  230.5 × 11.4 × 7.0 32  420.0 × 18.0 × 12.0 17  242.5 × 12.4 × 7.5 34  432.0 × 19.0 × 13.0 18  255.0 × 13.0 × 8.0 36  460.0 × 20.0 × 13.0 19  268.5 × 13.5 × 8.0 41  500.0 × 20.6 × 14.0 50/898 www.precitool.de Wrenches
