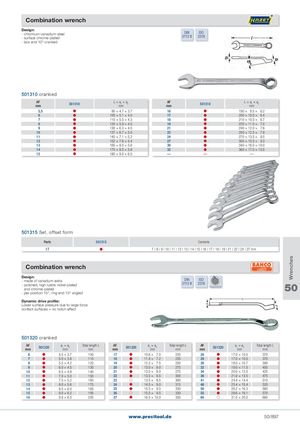

Общий каталог PRECITOOL - страница 902

Combination wrench Design:- chromium-vanadium steel- surface chrome-plated DIN ISO3113 B3318 - box end 10° cranked 501310 cranked AFmm 501310 L × a1 × a2mm AFmm 501310 L × a1 × a2mm    5,5    90 × 4.7 × 3.7 16  190 ×   9.5 ×   6.2  6  100 × 5.1 × 4.0 17  200 × 10.0 ×   6.4  7  110 × 5.5 × 4.3 18  210 × 10.5 ×  6.7  8  120 × 5.9 × 4.5 19  220 × 11.0 ×   7.0  9  130 × 6.3 × 4.5 21  240 × 12.0 ×   7.6 10  137 × 6.7 × 5.0 22  250 × 12.5 ×   7.9 11  145 × 7.1 × 5.2 24  270 × 13.5 ×   8.5 12  152 × 7.6 × 5.4 27  300 × 15.0 ×   9.3 13  160 × 8.0 × 5.6 30  340 × 16.0 × 10.0 14  170 × 8.5 × 5.8 32  360 × 17.0 × 10.5 15  180 × 9.0 × 6.0 — — — 501315 Set, offset form Parts 501315 Contents 17  7 | 8 | 9 | 10 | 11 | 12 | 13 | 14 | 15 | 16 | 17 | 18 | 19 | 21 | 22 | 24 | 27 mm Combination wrench Design: - made of vanadium extra DIN ISO - polished, high-lustre nickel-platedand chrome-plated 3113 B 3318 Dynamic-Drive-Profil 50 - jaw position 15°, ring end 15° angled Dynamic drive profile: Lower surface pressure due to large force contact surfaces = no notch effect 501320 cranked AFmm 501320 a1 × a2mm Total length Lmm AFmm 501320 a1 × a2mm Total length Lmm AFmm 501320 a1 × a2mm Total length Lmm  6  4.5 × 3.7 100 17  10.6 ×   7.0 220 28  17.0 × 10.0 370  7  5.0 × 3.8 110 18  11.4 ×   7.2 235 29  17.0 × 10.0 370  8  5.5 × 4.2 120 19  12.2 ×   7.5 250 30  18.0 × 10.7 390  9  6.0 × 4.5 130 20  13.0 ×   8.0 275 32  19.0 × 11.5 405 10  6.5 × 4.8 140 21  13.0 ×   8.0 275 34  20.0 × 12.0 425 11  7.0 × 5.0 150 22  13.5 ×   8.5 300 36  21.0 × 13.5 475 12  7.5 × 5.2 160 23  13.5 ×   8.5 300 41  24.4 × 14.4 510 13  8.0 × 5.6 175 24  14.5 ×   9.0 315 46  25.4 × 15.4 520 14  8.5 × 6.0 185 25  15.5 ×   9.5 330 50  26.2 × 16.3 560 15  9.0 × 6.2 195 26  15.5 ×   9.5 330 55  28.6 × 19.1 570 16  9.8 × 6.5 205 27  16.5 × 10.0 350 60  31.0 × 20.0 660 www.precitool.de 50/897 Wrenches
