Общий каталог PRECITOOL - страница 882

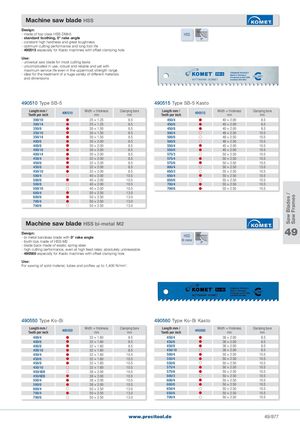

Saw Blades / Saw Frames Machine saw blade HSS Design: - made of top class HSS DMo5 HSS - standard toothing, 0° rake angle 0° - constant high hardness and great toughness - optimum cutting performance and long tool life - 490515 especially for Kasto machines with offset clamping hole Use: - universal saw blade for most cutting tasks - uncomplicated in use, robust and reliable and yet with maximum service life even in the uppermost strength range - ideal for the treatment of a huge variety of different materials and dimensions 490510 Type SB-5 490515 Type SB-5 Kasto Length mm /Teeth per inch490510 Width × thicknessmm Clamping boremm Length mm /Teeth per inch490515 Width × thicknessmm Clamping boremm 300/10  25 × 1.25  8.5 450/4  40 × 2.00  8.5 300/14  25 × 1.25  8.5 450/6  40 × 2.00  8.5 350/8  30 × 1.50  8.5 450/8  40 × 2.00  8.5 350/10  30 × 1.50  8.5 500/4  48 × 2.50 10.5 350/14  30 × 1.50  8.5 500/6  48 × 2.50 10.5 400/6  30 × 2.00  8.5 500/8  48 × 2.50 10.5 400/8  30 × 2.00  8.5 550/4  45 × 2.00 10.5 400/10  30 × 2.00  8.5 550/6  45 × 2.00 10.5 400/14  30 × 2.00  8.5 575/3  50 × 2.50 10.5 450/4  32 × 2.00  8.5 575/4  50 × 2.50 10.5 450/6  32 × 2.00  8.5 575/6  50 × 2.50 10.5 450/8  32 × 2.00  8.5 600/4  50 × 2.50 13.0 450/10  32 × 2.00  8.5 650/3  55 × 2.50 10.5 500/4  40 × 2.00 10.5 650/4  50 × 2.50 10.5 500/6  40 × 2.00 10.5 650/6  55 × 2.50 10.5 500/8  40 × 2.00 10.5 700/4  55 × 2.50 10.5 500/10  40 × 2.00 10.5 700/6  55 × 2.50 10.5 600/4  50 × 2.50 13.0 600/6  50 × 2.50 13.0 700/4  50 × 2.50 13.0 700/6  50 × 2.50 13.0 Machine saw blade HSS bi-metal M2 Design:- bi-metal bandsaw blade with 0° rake angle HSS 49 - tooth tips made of HSS-M2 Bi metal 0° - blade back made of elastic spring steel - high cutting performance, even at high feed rates; absolutely unbreakable - 490560 especially for Kasto machines with offset clamping hole Use: For sawing of solid material, tubes and profiles up to 1,400 N/mm². 490550 Type Ko-Bi 490560 Type Ko-Bi Kasto Length mm /Teeth per inch490550 Width × thicknessmm Clamping boremm Length mm /Teeth per inch490560 Width × thicknessmm Clamping boremm 400/4  32 × 1.60  8.5 450/4  38 × 2.00  8.5 400/6  32 × 1.60  8.5 450/6  38 × 2.00  8.5 400/8  32 × 1.60  8.5 450/8  38 × 2.00  8.5 400/10  32 × 1.60  8.5 450/10  38 × 2.00  8.5 450/4  32 × 1.60 10.5 500/4  50 × 2.50 10.5 450/6  32 × 1.60 10.5 550/4  50 × 2.50 10.5 450/8  32 × 1.60 10.5 550/6  50 × 2.50 10.5 450/10  32 × 1.60 10.5 575/4  50 × 2.50 10.5 450/4EB  38 × 2.00 10.5 575/6  50 × 2.50 10.5 450/6EB  38 × 2.00 10.5 600/3  50 × 2.50 10.5 500/4  38 × 2.00 10.5 600/4  50 × 2.50 10.5 500/6  38 × 2.00 10.5 600/6  50 × 2.50 10.5 600/4  50 × 2.50 13.0 650/4  50 × 2.50 10.5 700/4  50 × 2.50 13.0 650/6  50 × 2.50 10.5 700/6  50 × 2.50 13.0 700/4  50 × 2.50 10.5 www.precitool.de 49/877
