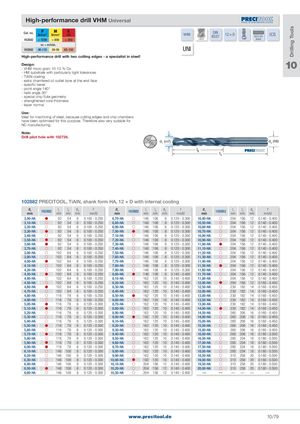

Общий каталог PRECITOOL - страница 84
Навигация
| Cat. no. 102882 | P N/mm2 < 1200 | M N/mm2 K HB < 850 < 350 | VHM | coated | DIN 6537 | 12 × D | 140° | 6535 HA shank | ICS |
| 102882 | vc = m 40-115 | /min. 30-50 65-130 | UNI |
High-performance drill with two cutting edges - a specialist in steel!
Design: - VHM micro grain 10-12 % Co - HM substrate with particularly tight tolerances - TiAlN coating - extra chamfered oil outlet bore at the end face - specific bevel - point angle 140° - helix angle 30° - special chip flute geometry - strengthened core thickness - taper normal
Use: Ideal for machining of steel, because cutting edges and chip chambers have been optimised for this purpose. Therefore also very suitable for NC manufacturing.
Note: Drill pilot hole with 102736.
10
d (m7) d (h6) 1 2
102882 PRECITOOL, TiAlN, shank form HA, 12 × D with internal cooling
| d1 mm | 102882 | l1 mm | l2 mm | d2 mm | f mm/U | d1 mm | 102882 | l1 mm | l2 mm | d2 mm | f mm/U | d1 mm | 102882 | l1 mm | l2 mm | d2 mm | f mm/U |
| 3,00-HA | | 92 | 54 | 6 | 0�100 - 0�250 | 6,70-HA | | 146 | 108 | 8 | 0�120 - 0�300 | 10,40-HA | | 204 | 156 | 12 | 0�140 - 0�400 |
| 3,10-HA | | 92 | 54 | 6 | 0�100 - 0�250 | 6,80-HA | | 146 | 108 | 8 | 0�120 - 0�300 | 10,50-HA | | 204 | 156 | 12 | 0�140 - 0�400 |
| 3,20-HA | | 92 | 54 | 6 | 0�100 - 0�250 | 6,90-HA | | 146 | 108 | 8 | 0�120 - 0�300 | 10,60-HA | | 204 | 156 | 12 | 0�140 - 0�400 |
| 3,30-HA | | 92 | 54 | 6 | 0�100 - 0�250 | 7,00-HA | | 146 | 108 | 8 | 0�120 - 0�300 | 10,70-HA | | 204 | 156 | 12 | 0�140 - 0�400 |
| 3,40-HA | | 92 | 54 | 6 | 0�100 - 0�250 | 7,10-HA | | 146 | 108 | 8 | 0�120 - 0�300 | 10,80-HA | | 204 | 156 | 12 | 0�140 - 0�400 |
| 3,50-HA | | 92 | 54 | 6 | 0�100 - 0�250 | 7,20-HA | | 146 | 108 | 8 | 0�120 - 0�300 | 10,90-HA | | 204 | 156 | 12 | 0�140 - 0�400 |
| 3,60-HA | | 92 | 54 | 6 | 0�100 - 0�250 | 7,30-HA | | 146 | 108 | 8 | 0�120 - 0�300 | 11,00-HA | | 204 | 156 | 12 | 0�140 - 0�400 |
| 3,70-HA | | 92 | 54 | 6 | 0�100 - 0�250 | 7,40-HA | | 146 | 108 | 8 | 0�120 - 0�300 | 11,10-HA | | 204 | 156 | 12 | 0�140 - 0�400 |
| 3,80-HA | | 102 | 64 | 6 | 0�100 - 0�250 | 7,50-HA | | 146 | 108 | 8 | 0�120 - 0�300 | 11,20-HA | | 204 | 156 | 12 | 0�140 - 0�400 |
| 3,90-HA | | 102 | 64 | 6 | 0�100 - 0�250 | 7,60-HA | | 146 | 108 | 8 | 0�120 - 0�300 | 11,30-HA | | 204 | 156 | 12 | 0�140 - 0�400 |
| 4,00-HA | | 102 | 64 | 6 | 0�100 - 0�250 | 7,70-HA | | 146 | 108 | 8 | 0�120 - 0�300 | 11,40-HA | | 204 | 156 | 12 | 0�140 - 0�400 |
| 4,10-HA | | 102 | 64 | 6 | 0�100 - 0�250 | 7,80-HA | | 146 | 108 | 8 | 0�120 - 0�300 | 11,50-HA | | 204 | 156 | 12 | 0�140 - 0�400 |
| 4,20-HA | | 102 | 64 | 6 | 0�100 - 0�250 | 7,90-HA | | 146 | 108 | 8 | 0�120 - 0�300 | 11,60-HA | | 204 | 156 | 12 | 0�140 - 0�400 |
| 4,30-HA | | 102 | 64 | 6 | 0�100 - 0�250 | 8,00-HA | | 146 | 108 | 8 | 0�140 - 0�400 | 11,70-HA | | 204 | 156 | 12 | 0�140 - 0�400 |
| 4,40-HA | | 102 | 64 | 6 | 0�100 - 0�250 | 8,10-HA | | 162 | 120 | 10 | 0�140 - 0�400 | 11,80-HA | | 204 | 156 | 12 | 0�140 - 0�400 |
| 4,50-HA | | 102 | 64 | 6 | 0�100 - 0�250 | 8,20-HA | | 162 | 120 | 10 | 0�140 - 0�400 | 12,00-HA | | 204 | 156 | 12 | 0�160 - 0�450 |
| 4,60-HA | | 102 | 64 | 6 | 0�100 - 0�250 | 8,30-HA | | 162 | 120 | 10 | 0�140 - 0�400 | 12,50-HA | | 230 | 182 | 14 | 0�160 - 0�450 |
| 4,70-HA | | 102 | 64 | 6 | 0�100 - 0�250 | 8,40-HA | | 162 | 120 | 10 | 0�140 - 0�400 | 12,80-HA | | 230 | 182 | 14 | 0�160 - 0�450 |
| 4,80-HA | | 116 | 78 | 6 | 0�100 - 0�250 | 8,50-HA | | 162 | 120 | 10 | 0�140 - 0�400 | 13,00-HA | | 230 | 182 | 14 | 0�160 - 0�450 |
| 4,90-HA | | 116 | 78 | 6 | 0�100 - 0�250 | 8,60-HA | | 162 | 120 | 10 | 0�140 - 0�400 | 13,50-HA | | 230 | 182 | 14 | 0�160 - 0�450 |
| 5,00-HA | | 116 | 78 | 6 | 0�120 - 0�300 | 8,70-HA | | 162 | 120 | 10 | 0�140 - 0�400 | 13,80-HA | | 230 | 182 | 14 | 0�160 - 0�450 |
| 5,10-HA | | 116 | 78 | 6 | 0�120 - 0�300 | 8,80-HA | | 162 | 120 | 10 | 0�140 - 0�400 | 14,00-HA | | 230 | 182 | 14 | 0�160 - 0�450 |
| 5,20-HA | | 116 | 78 | 6 | 0�120 - 0�300 | 8,90-HA | | 162 | 120 | 10 | 0�140 - 0�400 | 14,50-HA | | 260 | 208 | 16 | 0�160 - 0�450 |
| 5,30-HA | | 116 | 78 | 6 | 0�120 - 0�300 | 9,00-HA | | 162 | 120 | 10 | 0�140 - 0�400 | 14,80-HA | | 260 | 208 | 16 | 0�160 - 0�450 |
| 5,40-HA | | 116 | 78 | 6 | 0�120 - 0�300 | 9,10-HA | | 162 | 120 | 10 | 0�140 - 0�400 | 15,00-HA | | 260 | 208 | 16 | 0�160 - 0�450 |
| 5,50-HA | | 116 | 78 | 6 | 0�120 - 0�300 | 9,20-HA | | 162 | 120 | 10 | 0�140 - 0�400 | 15,50-HA | | 260 | 208 | 16 | 0�160 - 0�450 |
| 5,60-HA | | 116 | 78 | 6 | 0�120 - 0�300 | 9,30-HA | | 162 | 120 | 10 | 0�140 - 0�400 | 15,80-HA | | 260 | 208 | 16 | 0�160 - 0�450 |
| 5,70-HA | | 116 | 78 | 6 | 0�120 - 0�300 | 9,40-HA | | 162 | 120 | 10 | 0�140 - 0�400 | 16,00-HA | | 260 | 208 | 16 | 0�180 - 0�500 |
| 5,80-HA | | 116 | 78 | 6 | 0�120 - 0�300 | 9,50-HA | | 162 | 120 | 10 | 0�140 - 0�400 | 16,50-HA | | 285 | 234 | 18 | 0�180 - 0�500 |
| 5,90-HA | | 116 | 78 | 6 | 0�120 - 0�300 | 9,60-HA | | 162 | 120 | 10 | 0�140 - 0�400 | 17,00-HA | | 285 | 234 | 18 | 0�180 - 0�500 |
| 6,00-HA | | 116 | 78 | 6 | 0�120 - 0�300 | 9,70-HA | | 162 | 120 | 10 | 0�140 - 0�400 | 17,50-HA | | 285 | 234 | 18 | 0�180 - 0�500 |
| 6,10-HA | | 146 | 108 | 8 | 0�120 - 0�300 | 9,80-HA | | 162 | 120 | 10 | 0�140 - 0�400 | 18,00-HA | | 285 | 234 | 18 | 0�180 - 0�500 |
| 6,20-HA | | 146 | 108 | 8 | 0�120 - 0�300 | 9,90-HA | | 162 | 120 | 10 | 0�140 - 0�400 | 18,50-HA | | 310 | 258 | 20 | 0�180 - 0�500 |
| 6,30-HA | | 146 | 108 | 8 | 0�120 - 0�300 | 10,00-HA | | 162 | 120 | 10 | 0�140 - 0�400 | 19,00-HA | | 310 | 258 | 20 | 0�180 - 0�500 |
| 6,40-HA | | 146 | 108 | 8 | 0�120 - 0�300 | 10,10-HA | | 204 | 156 | 12 | 0�140 - 0�400 | 19,50-HA | | 310 | 258 | 20 | 0�180 - 0�500 |
| 6,50-HA | | 146 | 108 | 8 | 0�120 - 0�300 | 10,20-HA | | 204 | 156 | 12 | 0�140 - 0�400 | 20,00-HA | | 310 | 258 | 20 | 0�180 - 0�500 |
| 6,60-HA | | 146 | 108 | 8 | 0�120 - 0�300 | 10,30-HA | | 204 | 156 | 12 | 0�140 - 0�400 | — | — | — | — | — | — |
