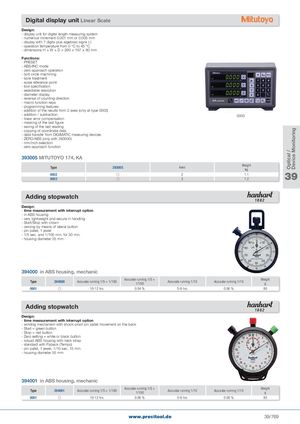

Общий каталог PRECITOOL - страница 774

Optical / Device Monitoring Digital display unit Linear Scale Design: - display unit for digital length measuring system - numerical increment 0.001 mm or 0.005 mm - display with 7 digits plus algebraic signs (-) - operation temperature from 0 °C to 45 °C - dimensions H × W × D = 260 × 167 × 80 mm Functions: - PRESET - ABS/INC mode - zero-approach operation - bolt circle machining - bore treatment - scale reference point - tool specification - selectable resolution - diameter display - reversal of counting direction - macro function keys - programming features - addition of the results from 2 axes (only at type 0003) - addition / subtraction 0003 - linear error compensation - masking of the last figure - saving of the last reading - copying of coordinate data - data transfer from DIGIMATIC measuring devices - ZERO/ABS (only with 393000) - mm/inch selection - zero-approach function 393005 MITUTOYO 174, KA Type 393005 Axes Weightkg 0002 0003 23 1.11.2 39 Adding stopwatch Design: - time measurement with interrupt option - in ABS housing - very lightweight and secure in handling - Start/Stop with crown - zeroing by means of lateral button - pin pallet, 1 jewel - 1/5 sec. and 1/100 min. for 30 min. - housing diameter 55 mm 394000 in ABS housing, mechanic Type 394000 Accurate running 1/5 + 1/100 Accurate running 1/5 +1/100 Accurate running 1/10 Accurate running 1/10 Weightg 0001  10-12 hrs. 0.04 % 5-6 hrs. 0.06 % 80 Adding stopwatch Design: - time measurement with interrupt option - winding mechanism with shock-proof pin pallet movement on the back - Start = green button - Stop = red button - Zero setting = white or black button - robust ABS housing with neck strap - standard with Flyback (Tempo) - pin pallet, 1 jewel, 1/10 sec. 15 min. - housing diameter 55 mm 394001 in ABS housing, mechanic Type 394001 Accurate running 1/5 + 1/100 Accurate running 1/5 +1/100 Accurate running 1/10 Accurate running 1/10 Weightg 0001  10-12 hrs. 0.06 % 5-6 hrs. 0.08 % 85 www.precitool.de 39/769
