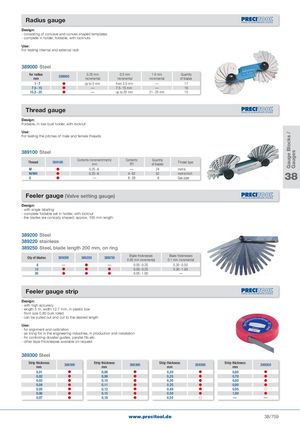

Gauge Blocks / Gauges Radius gauge Design: - consisting of concave and convex shaped templates - complete in holder, foldable, with locknuts Use: For testing internal and external radii 389000 Steel for radiusmm 389000 0.25 mmincremental 0.5 mmincremental 1.0 mm Quantityincrementalof blades 1 - 7  up to 3 mm from 3.5 mm — 17 7,5 - 15  — 7.5 - 15 mm — 16 15,5 - 25  — up to 20 mm 21 - 25 mm 15 Thread gauge Design: Foldable, in low-built holder, with locknut Use: For testing the pitches of male and female threads 389100 Steel Thread 389100 Contents increment/metricmm ContentsTPI Quantityof blades Thread type M  0.25 - 6 — 24 metric M/WH  0.25 - 6 4 - 62  52 metric/inchG—8 - 28 6Gas pipe 38 Feeler gauge (Valve setting gauge) Design: - with single labelling - complete foldable set in holder, with locknut - the blades are conically shaped, approx. 100 mm length 389200 Steel 389220 stainless 389250 Steel, blade length 200 mm, on ring Qty of blades 389200 389220 389250 Blade thicknesses0.05 mm incrementalBlade thicknesses0.1 mm incremental 8 —  — 0.05 - 0.25 0.30 - 0.50 13    0.05 - 0.25 0.30 - 1.00 20    0.05 - 1.00 — Feeler gauge strip Design: - with high accuracy - length 5 m, width 12.7 mm, in plastic box - from size 0.80 bulk rolled - can be pulled out and cut to the desired length Use: - for alignment and calibration - as lining foil in the engineering industries, in production and installation - for controlling dovetail guides, parallel fits etc. - other tape thicknesses available on request 389300 Steel Strip thicknessmm 389300 Strip thicknessmm 389300 Strip thicknessmm 389300 Strip thicknessmm 389300 0,01  0,08  0,20  0,60  0,02  0,09  0,25  0,70  0,03  0,10  0,30  0,80  0,04  0,11  0,35  0,90  0,05  0,12  0,40  0,95  0,06  0,15  0,50  1,00  0,07  0,18  0,55  — — www.precitool.de 38/759
