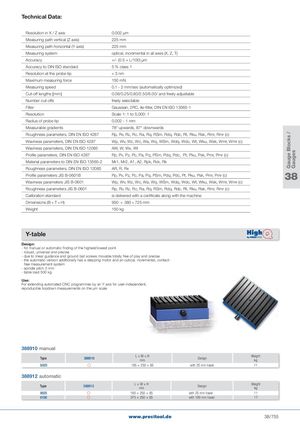

Gauge Blocks / Gauges Technical Data: Resolution in X / Z axis 0.002 µm Measuring path vertical (Z axis) 225 mm Measuring path horizontal (Y axis) 225 mm Measuring system optical, incremental in all axes (X, Z, T) Accuracy +/- (0.5 + L/100) µm Accuracy to DIN ISO standard 5 % class 1 Resolution at the probe tip < 3 nm Maximum measuring force 150 mN Measuring speed 0.1 - 2 mm/sec (automatically optimized) Cut-off lengths [mm] 0.08/0.25/0.80/2.50/8.00/ and freely adjustable Number cut-offs freely selectable Filter Gaussian, 2RC, λs-filter, DIN EN ISO 13565-1 Resolution Scale 1: 1 to 5,000: 1 Radius of probe tip 0.002 - 1 mm Measurable gradients 78° upwards, 87° downwards Roughness parameters, DIN EN ISO 4287 Rp, Rv, Rz, Rc, Ra, Rq, RSm, Rdq, Rdc, Rt, Rku, Rsk, Rmr, Rmr (c) Waviness parameters, DIN EN ISO 4287 Wp, Wv, Wz, Wc, Wa, Wq, WSm, Wdq, Wdc, Wt, Wku, Wsk, Wmr, Wmr (c) Waviness parameters, DIN EN ISO 12085 AW, W, Wx, Wt Profile parameters, DIN EN ISO 4287 Pp, Pv, Pz, Pc, Pa, Pq, PSm, Pdq, Pdc, Pt, Pku, Psk, Pmr, Pmr (c) Material parameters to DIN EN ISO 13565-2 Mr1, Mr2, A1, A2, Rpk, Rvk, Rk Roughness parameters, DIN EN ISO 12085 AR, R, Rx Profile parameters JIS B-0601B Pp, Pv, Pz, Pc, Pa, Pq, PSm, Pdq, Pdc, Pt, Pku, Psk, Pmr, Pmr (c) 38 Waviness parameters JIS B-0601 Wp, Wv, Wz, Wc, Wa, Wq, WSm, Wdq, Wdc, Wt, Wku, Wsk, Wmr, Wmr (c) Roughness parameters JIS B-0601 Rp, Rv, Rz, Rc, Ra, Rq, RSm, Rdq, Rdc, Rt, Rku, Rsk, Rmr, Rmr (c) Calibration standard is delivered with a certificate along with the machine Dimensions (B × T × H) 950 × 380 × 725 mm Weight 150 kg Y-table Design: - for manual or automatic finding of the highest/lowest point - robust, universal and precise - due to linear guidance and ground ball screws movable totally free of play and precise - the automatic version additionally has a stepping motor and an optical, incremental, contact- free measurement system - spindle pitch 3 mm - table load 500 kg Use: For extending automated CNC programmes by an Y axis for user-independent, reproducible topdown measurements on the µm scale 388910 manual Type 388910 L×W×Hmm Design Weightkg 0025  185 × 250 × 85 with 25 mm travel 11 388912 automatic Type 388912 L×W×Hmm Design Weightkg 0025  185 × 250 × 85 with 25 mm travel 11 0100  375 × 250 × 85 with 100 mm travel 17 www.precitool.de 38/755
