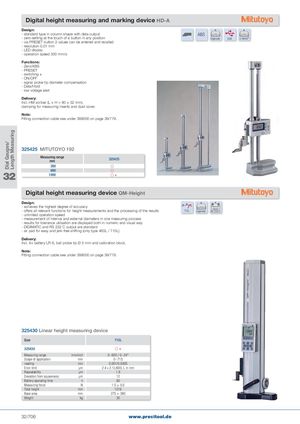

Dial Gauges/ Length Measuring Digital height measuring and marking device HD-A Design: - standard type in column shape with data output ABS - zero-setting at the touch of a button in any position Digimatic USB U-WAVE® - via PRESET button 2 values can be entered and recalled - resolution 0.01 mm - LED display - operation speed 500 mm/s Functions: - Zero/ABS - PRESET - switching ± - ON/OFF - signal probe tip diameter compensation - Data/Hold - low voltage alert Delivery: Incl. HM scriber (L × H = 80 × 32 mm), clamping for measuring inserts and dust cover. Note: Fitting connection cable see under 398000 on page 39/779. 325425 MITUTOYO 192 Measuring rangemm 325425 300  600  32 1000 + Digital height measuring device QM-Height Design: - achieves the highest degree of accuracy - offers all relevant functions for height measurements and the processing of the results TOL Digimatic RS 232 C - unlimited operation speed - measurement of internal and external diameters in one measuring process - results for tolerance utilisation are displayed both in numeric and visual way - DIGIMATIC and RS 232 C output are standard - air pad for easy and jerk-free shifting (only type 465L / 715L) Delivery: Incl. 4× battery LR-6, ball probe tip Ø 5 mm and calibration block. Note: Fitting connection cable see under 398000 on page 39/779. 325430 Linear height measuring device Size 715L 325430 + Measuring range  mm/inch 0 - 600 / 0 - 24" Scope of application  mm 0 - 715 reading  mm 0.001/0.0005 Error limit  µm 2.4 + 2.1L/600, L in mm Repeatability  µm 1.8 Deviation from squareness  µm 12 Battery operating time  h 80 Measuring force  N 1.5 ± 0.5 Total height  mm 1018 Base area  mm 275 × 360 Weight  kg 30 465L 715L 32/706 www.precitool.de
