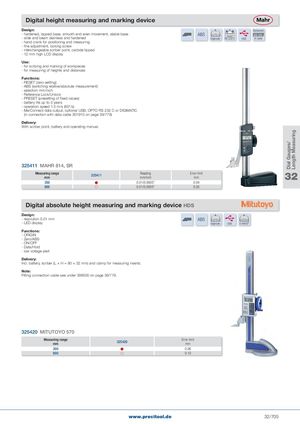

Dial Gauges/ Length Measuring Digital height measuring and marking device Design: Delivered - hardened, lapped base, smooth and even movement, stable base ABS - slide and beam stainless and hardened Digimatic RS 232 C USB in case - hand crank for positioning and measuring - fine adjustment, locking screw - interchangeable scriber point, carbide tipped - 12 mm high LCD display Use: - for scribing and marking of workpieces - for measuring of heights and distances Functions: - RESET (zero-setting) - ABS (switching relative/absolute measurement) - selection mm/inch - Reference Lock/Unlock - PRESET (presetting of fixed values) - battery life up to 3 years - operation speed 1.5 m/s (60“/s) - MarConnect data output, optional USB, OPTO RS 232 C or DIGIMATIC (in connection with data cable 301910 on page 39/779) Delivery: With scriber point, battery and operating manual. 325411 MAHR 814, SR Measuring rangemm 325411 Readingmm/inch Error limitmm 32 350  0.01/0.0005“ 0.04 600  0.01/0.0005“ 0.05 Digital absolute height measuring and marking device HDS Design: - resolution 0.01 mm ABS - LED display Digimatic USB U-WAVE® Functions: - ORIGIN - Zero/ABS - ON/OFF - Data/Hold - low voltage alert Delivery: Incl. battery, scriber (L × H = 80 × 32 mm) and clamp for measuring inserts. Note: Fitting connection cable see under 398000 on page 39/779. 325420 MITUTOYO 570 Measuring rangemm 325420 Error limitmm 300  0.06 600  0.10 www.precitool.de 32/705
