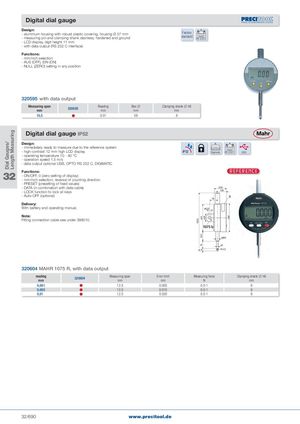

Dial Gauges/ Length Measuring Digital dial gauge Design: - aluminium housing with robust plastic covering, housing Ø 57 mm Factory - measuring pin and clamping shank stainless, hardened and ground standard RS 232 C - LCD display, digit height 11 mm - with data output (RS 232 C interface) Functions: - mm/inch selection - AUS (OFF), EIN (ON) - NULL (ZERO) setting in any position 320595 with data output Measuring spanmm 320595 Readingmm Box Clamping shank h6mmmm 10,5 0.01 58 8 Digital dial gauge IP52 Design: - immediately ready to measure due to the reference system - high-contrast 12 mm high LCD display IP52 Digimatic RS 232 C USB - operating temperature 10 - 40 °C - operation speed 1.5 m/s - data output optional USB, OPTO RS 232 C, DIGIMATIC 32 Functions:- ON/OFF, 0 (zero-setting of display)- mm/inch selection, reversal of counting direction - PRESET (presetting of fixed values) - DATA (in combination with data cable) - LOCK function to lock all keys - Auto-OFF (optional) Delivery: With battery and operating manual. Note: Fitting connection cable see under 398010. 320604 MAHR 1075 R, with data output readingmm 320604 Measuring spanmm Error limit Measuring force Clamping shank h6mmNmm 0,001 12.5 0.005 0.5-1 8 0,005 12.5 0.015 0.5-1 8 0,01 12.5 0.020 0.5-1 8 32/690 www.precitool.de
